Engine Description 2.2 Engine Illustrations

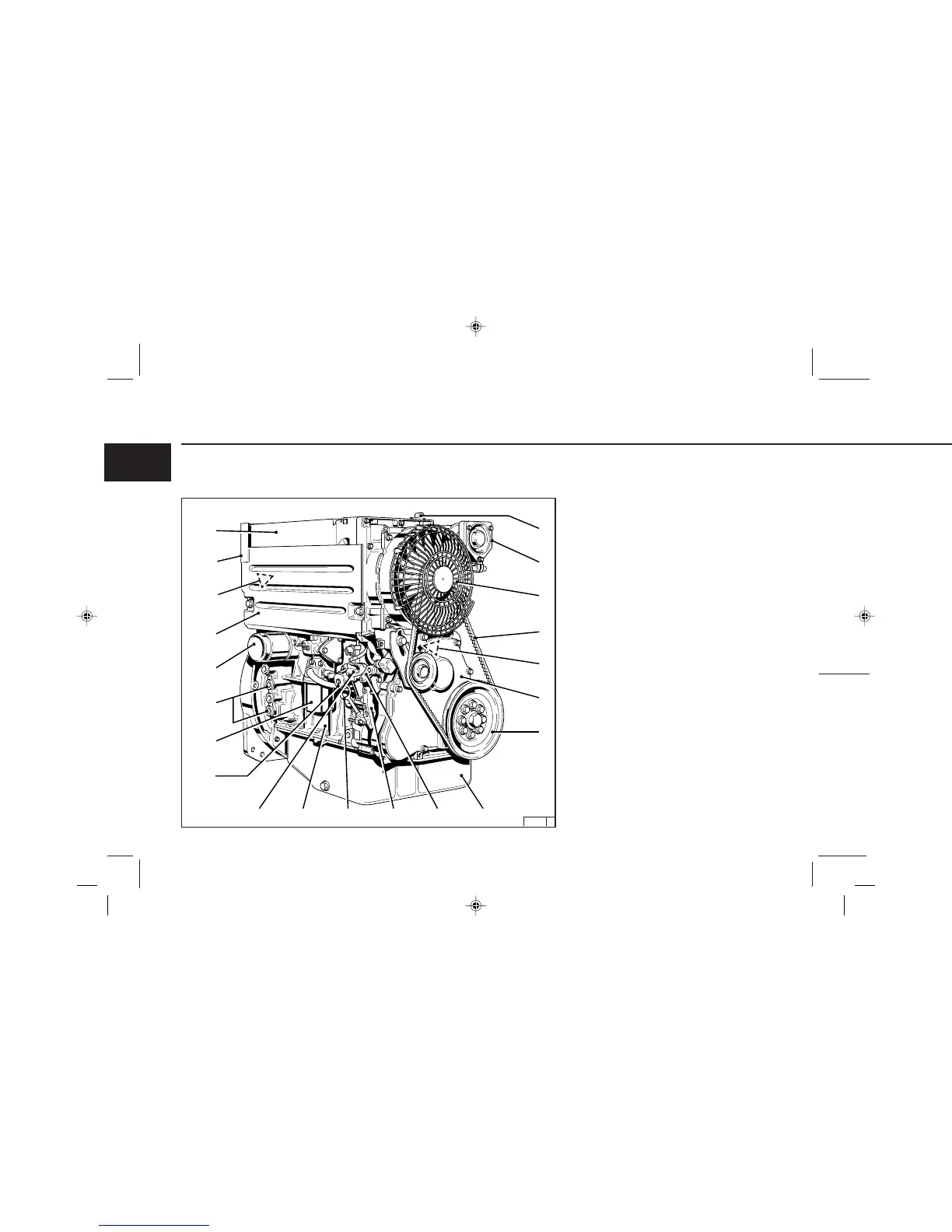

2.2.1 Service Side
FL 1011F
1 Oil filler neck (valve-gear cover)
2 Charge-air line / air-intake line
3 Fan with integrated generator
4 Narrow V-belt
5 Solenoid
6 Toothed belt cover
7 V-belt pulley on crankshaft
8 Oil sump
9 Cut-out handle
10 Speed control lever
11 Oil dipstick
12 Crankshaft housing
13 Oil fill point (on side of crankcase)
14 Fuel pump
15 Easy-change fuel filter
16 Connecting facility for oil heater
17 Lube oil easy-change filter
18 Removable coolant intake hood
19 Injection pumps
20 Date plate
21 Oil cooler
21
20
18
17
16
15
14
2
3
4
5
6
7
13 12 11 10 9 8
1
19
