30
3
25 752 1 25 754 025 753 0

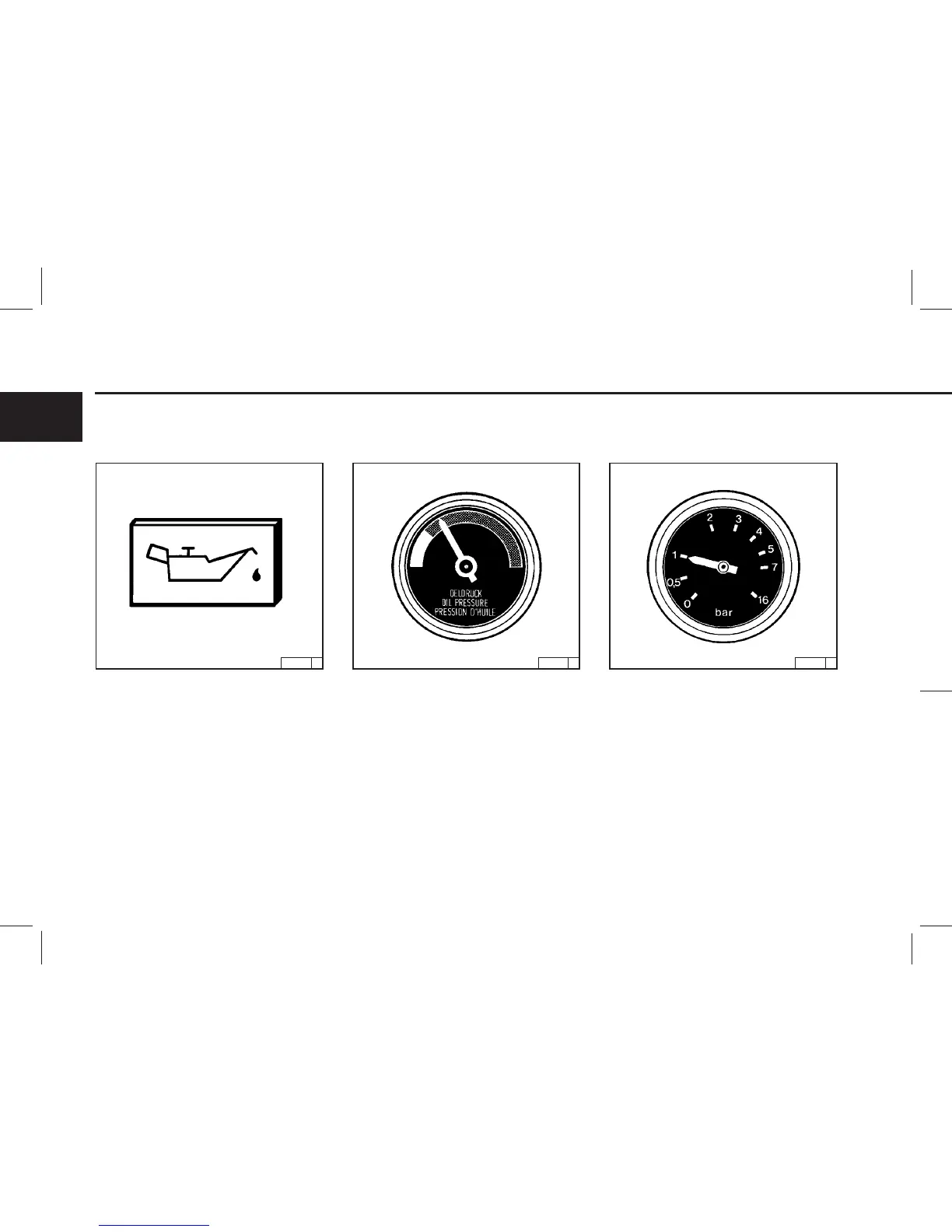

3.3 Monitoring Systems
3.3.1 Engine Oil Pressure
● The oil pressure pilot light comes on with oper-
ating voltage on and engine off.
● The oil pressure pilot light should go out when
the engine is running.
Oil Pressure Indicator
● The pointer must remain in the green sector over
the entire range.
Oil Pressure Gauge
● The pointer must indicate the minimum oil
pressure (see 9.1).
Oil Pressure Pilot Light
Engine Operation
