16
2
26 453 0
21
19
17
16
15
14
2
3
4
5
6
7
13 12 11 10 9 8
1
18
20

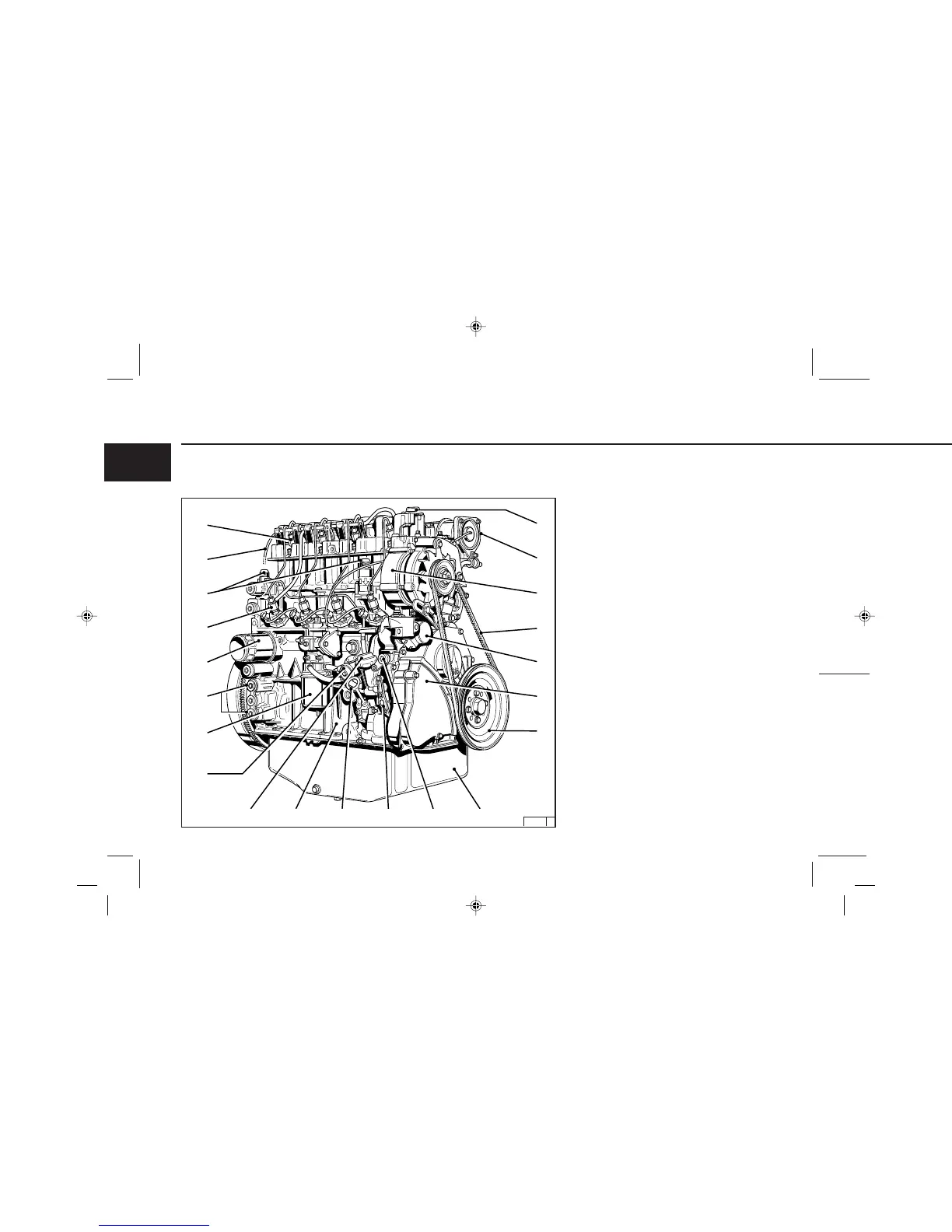

Engine Description
2.2 Engine Illustrations
2.2.5 Service Side
FM 1011F
1 Oil filler neck (valve-gear housing)
2 Charge-air line / air-intake line
3 Generator
4 Narrow V-belt
5 Solenoid
6 Wheel-house cover
7 V-belt pulley on crankshaft
8 Oil sump
9 Cut-out handle
10 Speed control lever
11 Oil dipstick
12 Crankshaft housing
13 Oil fill point (on side of crankcase)
14 Fuel pump
15 Easy-change fuel filter
16 Connecting facility for oil heater
17 Lube oil easy-change filter
18 Injection pumps
19 Connection for oil cooler
20 Leakage-fuel line
21 Injection valves
7343en_k02_pdf 05.10.1999, 9:21 Uhr16
