dS2824
dS2824 User Manual v4.12

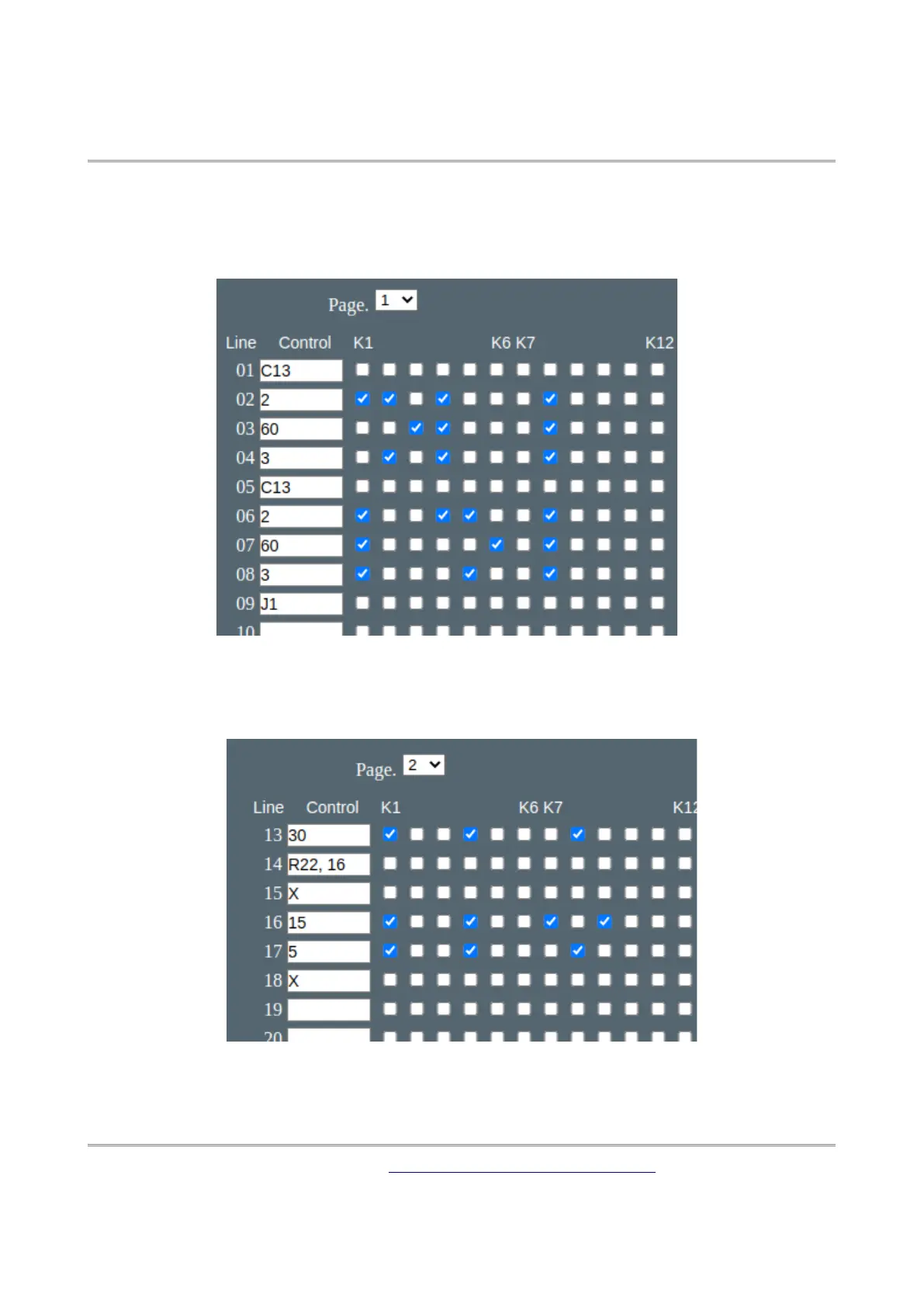

Now we can modify the sequencer code. Change the 30 second delays on lines 1 and 5 and re-
place them with C13. This is a call to line 13, which is on page 2. This will keep the pedestrian
routine on one page for easier reading. Also remove all ticks from K1 – K12 on these lines. The
Call instruction will ignore them anyway, but it’s good to keep things clear.
Enter the following on page 2.
Copyright © 2016-2021, Devantech Ltd.
All rights reserved.
www.robot-electronics.co.uk
33
