ElectroVap MC
Room ventilation unit

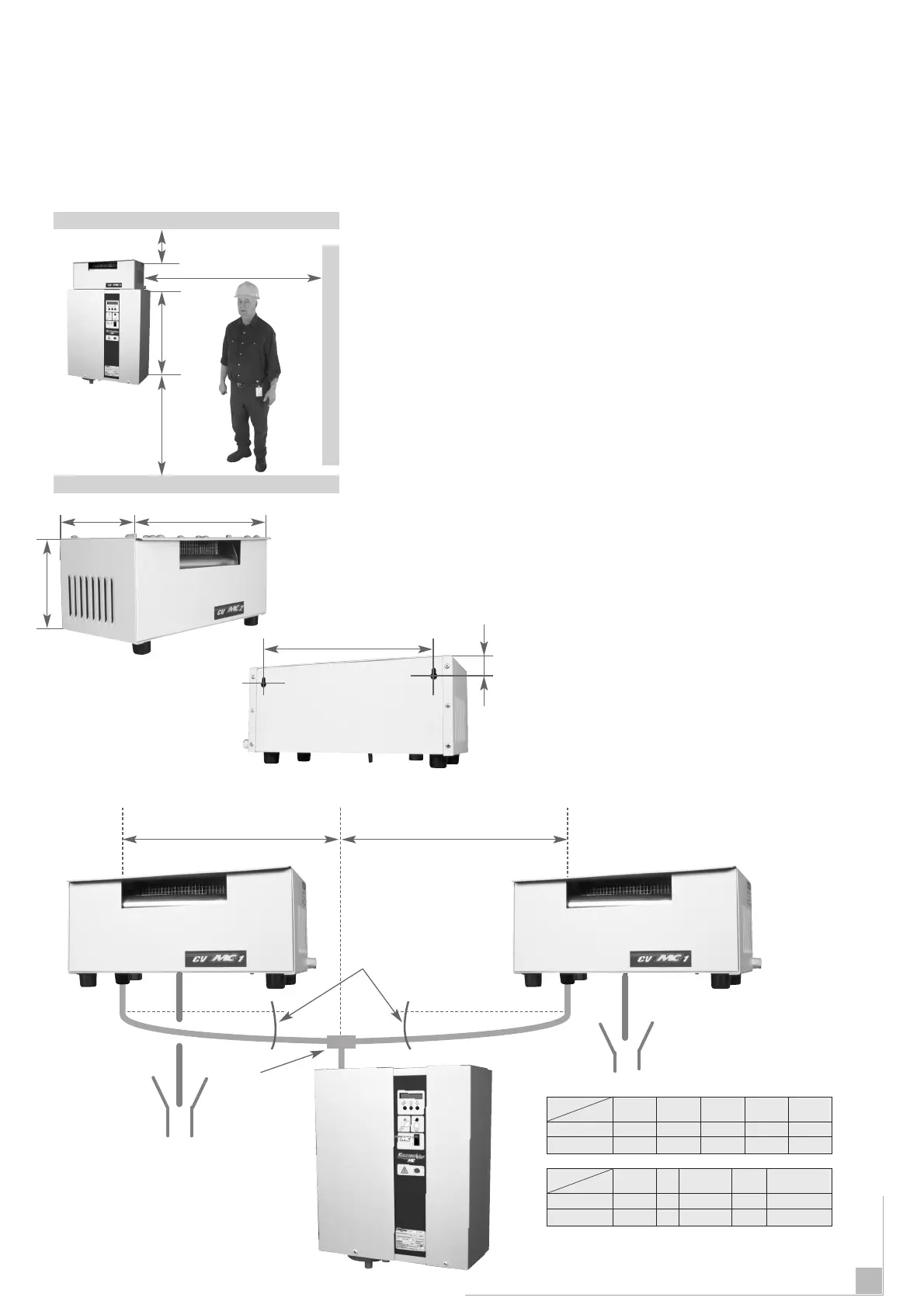

Two ventilation units permit the use of the ELMC
in direct space applications where there is no
ductwork.
The ventilation units may be top or remote
mounted. In remote mounting applications, the
distance between the ventilation unit and an
opposite wall should be no less than 3 m. Where
the output of an individual cylinder exceeds the
the capacity of a single ventilation unit, two units
should be used equally distant from the ELMC
humidifier (X). (X1=X2).
T = is suitable tee, available from supplier (see
option list). Connection of room ventilation
units to the humidifier is via terminal blocks 3
and 4 on the DIN rail (230V, 2 cores+ground).
Installation
X1
0,50 m
3 m
0,70 m
1,20 m
15°
T
X2
B
Model
ABCE F
mm
CVMC 1 390 195 165 330 35
CV 2 520 260 350 360 35
Model Weight Db Max steam M3/H Compatible
mm KG KG/ST/H with model
CVMC 1 4,6 35 10 150 ELMC 5/8/10
CV 2 12 38 20 300 ELMC 15/20
A
E
F
B
C
Photos non-contractuelles
Egout
Egout
10
