ElectroVap MC

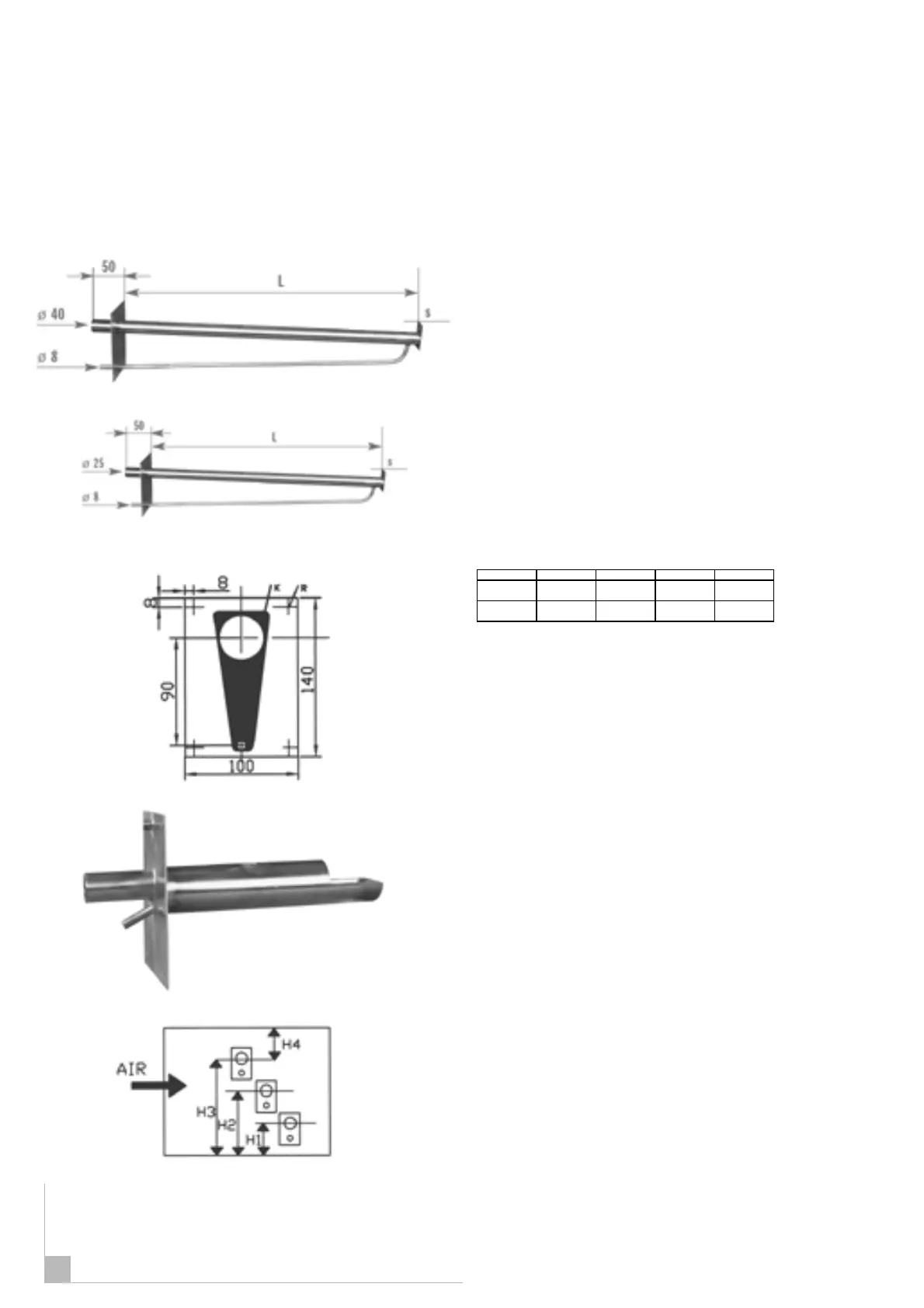

Steam distribution pipe
See drill
template
Short steam pipe B110
Installation
Steam from the cylinder enters the duct via a
steam distribution pipe. In order to obtain optimum
performance of the humidifier, it is recommended
that these instructions are adhered to as far as
possible.
steam distribution pipe
selection
This table shows the number and the diameter of
the pipe(s) per unit.
ELMC model 5-8-10-15 20-30 40-50-60 90
Number of
pipes
1123
Diam. Steam
condensate
25
8
40
8
40
8
40
8
For the ductwork of widths less than 300 mm,
shorter distributor, ref. B110 is available in either
diameter.
Where multi-cylinder units are used, it is
recommended that the steam distribution pipes of
differing lenghts are used, Positioned them as
indicated below.
L = length 290 - 590 - 790 - 1000 - 1250 - 1500
mm.
S = hole for support, if necessary ø 5 mm.
K = cut-out for insertion into the duct (see
template).
R = 4 holes ø 5 mm.
H1 = 140 mm mini
H2 = H1 + 140 mm mini
H3 = H2 + 140 mm mini
H4 = 300 mm mini
