Devatec ELMC 5 - Dimensions

1 2 3
a b c
ElectroVap MC

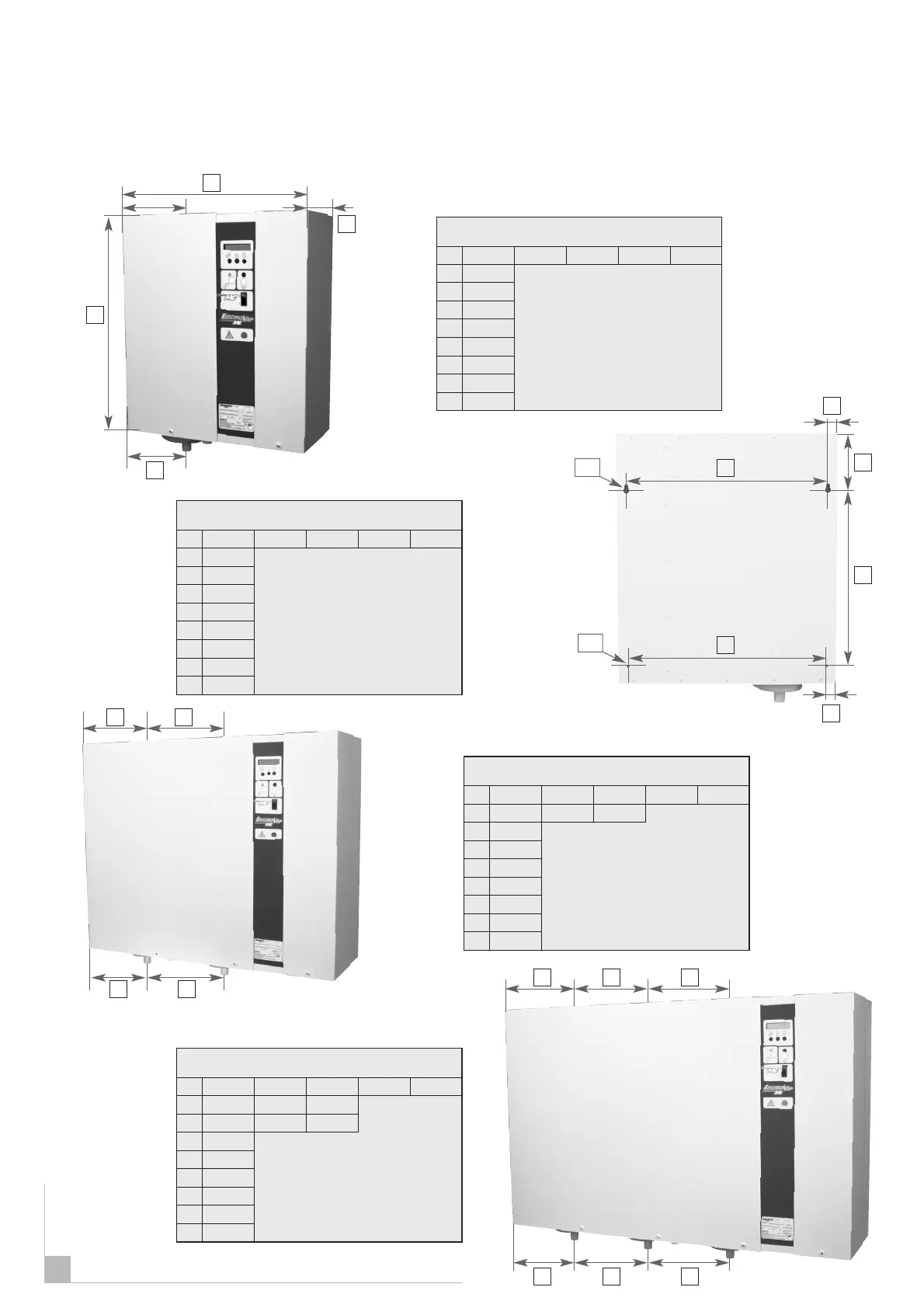

DIMENSIONS
Unit mounting
Dimension Steam Steam Weight Weight
mm outlet drain empty kg full kg
A 1070 1 140 a 140 45 90
B 675 2 275 b 275
C 270 3 275 c 275
D 990
E 1030
F40
G110
H 525
I20
ELMC 90
Dimension Steam Steam Weight Weight
mm outlet drain empty kg full kg
A 840 1 140 a 140 30 60
B 675 2 300 b 300
C270
D760
E 795
F40
G110
H 525
I20
ELMC 40-50-60
Dimension Steam Steam Weight Weight
mm outlet drain empty kg full kg
A 545 1 135 a 135 22 37
B675
C270
D 465
E 505
F40
G110
H 525
I20
ELMC 15-20-30
Dimensions Steam Steam Weight Weight
mm outlet drain empty kg full kg
A 470 1 115 a 115 15 23
B540
C215
D 425
E 425
F20
G110
H 380
I20
ELMC 5-8-10
B
D
G
H
ø 6
E
I
F
1
A
C
a
1 2
a b
ø 6
Photos non-contractuelles
