ElectroVap MC
Steam output
Installation
Use steam hose from our supply only.
This steam hose is able to withstand 100°C.
The humidifier should be located within 3m of the
steam distribution pipes if hose is to be used. If
the humidifier is located higher than 3m from the
steam distribution pipe/s, insulated copper tube
should be used.
The maximum recommendable length for steam
pipe, including elbows, is 6m.
IMPORTANT:
1 elbow = 1 m equivalent length of steam pipe.
There should be NO HORIZONTAL RUNS of
steam hose or pipework. All steam pipework
must fall either back toward the unit or toward the
steam distribution pipe at an angle of 15°C to
prevent condensation being trapped.

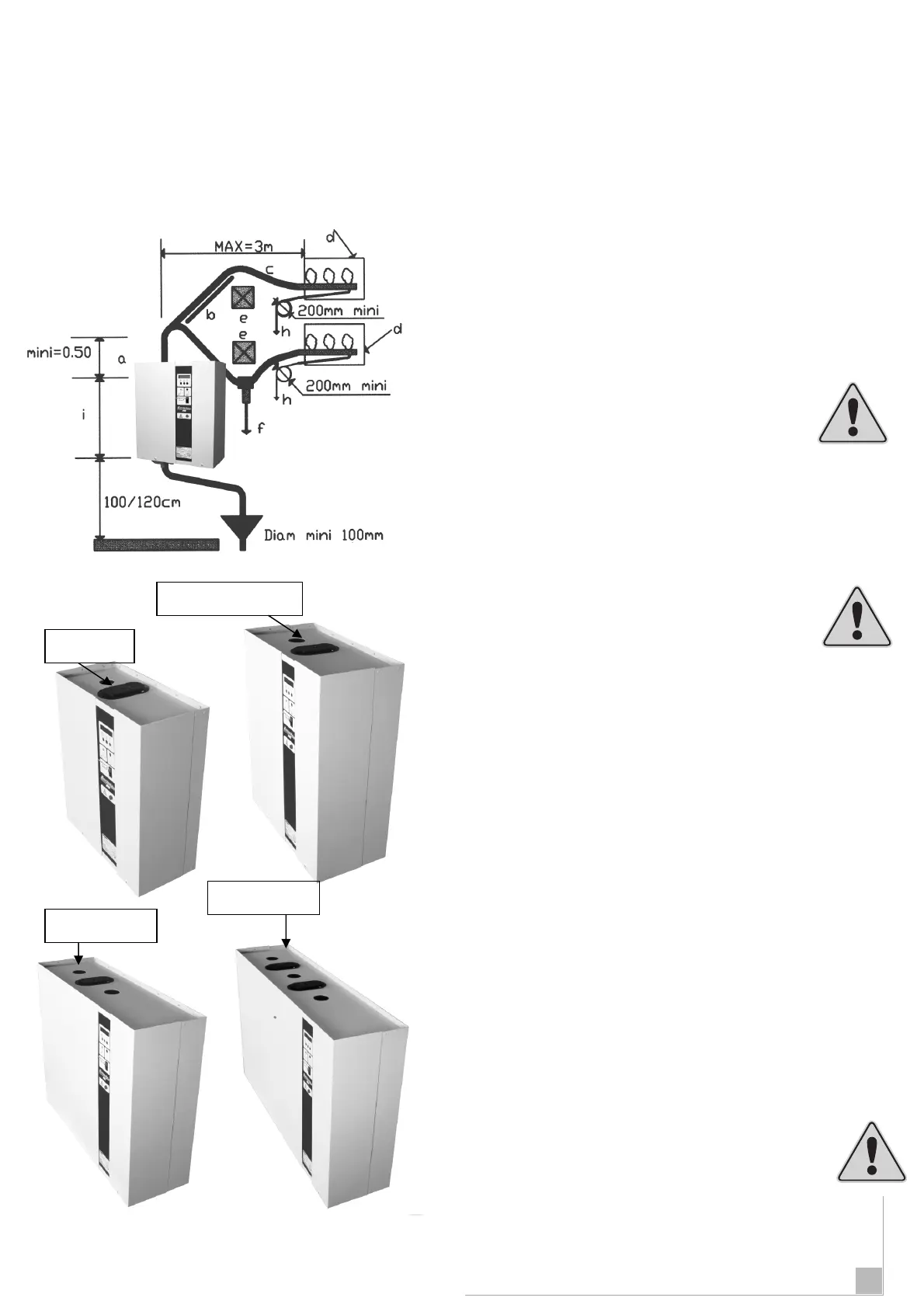

a - Vertical rise at least 500mm before the bend
b - The steam hose should be rigidly supported
c - Steam hose (radius of bend superior to 300
mm)
d - Duct work
e - Obstacle
f - A condensate separator is needed at this point
to drain condensate . Steam hose connection
g – Steam hose : make a radius of bend of
diameter 200mm with the condensate hose
(siphon)
h – Condensate hose
i – Humidifier height
Radius of bend
ø 25 mm = 250 mm (minimal)
ø 40 mm = 400 mm (minimal)
Number of steam outlet
ELMC 5-8-10-15 = 1 x ø 25 mm
ELMC 20-30 = 1 x ø 40 mm
ELMC 40-50-60 = 2 x ø 40 mm
ELMC 90 = 3 x ø 40 mm
Permissible duct pressure (P) for a correct
working :
- P inferior to 150 mm water column
For pressures between 150 and 300 mm water column,
our optional filling cup platform mus
t be used.
8
g = 25 ou 40
g = 25
g = 2 x 25
g = 3 x 40
8
