ElectroVap MC
Connection of the unit and its options
Connection for ventilation units
(terminal block 3-4).
Connection to mains.
Connection to ground
Connection to on/off hygrostat
(safety & room ventilation unit)
(Terminal block 1-2).
This allows the selection of the suitable
regulation. Configure dip switch S1 as
follows :
Red lamp of
High water level
Electrical installation
16
Devatec sensor 0-10 V
0-10 V/2-10 V regulator
0-5 V sensor
1-5 V sensor
4-20 mA sensor
0-20 / 4-20 mA regul.
0-20 V regulator
4-20 v regulator
Ɣ
ƔƔ Ɣ
ƔƔ
ƔƔ
ƔƔ
ƔƔ
1 2 3 4
Ɣ
ƔƔƔ
All works concerned with electrical installation must be carried
out by a skilled and qualified personnel.

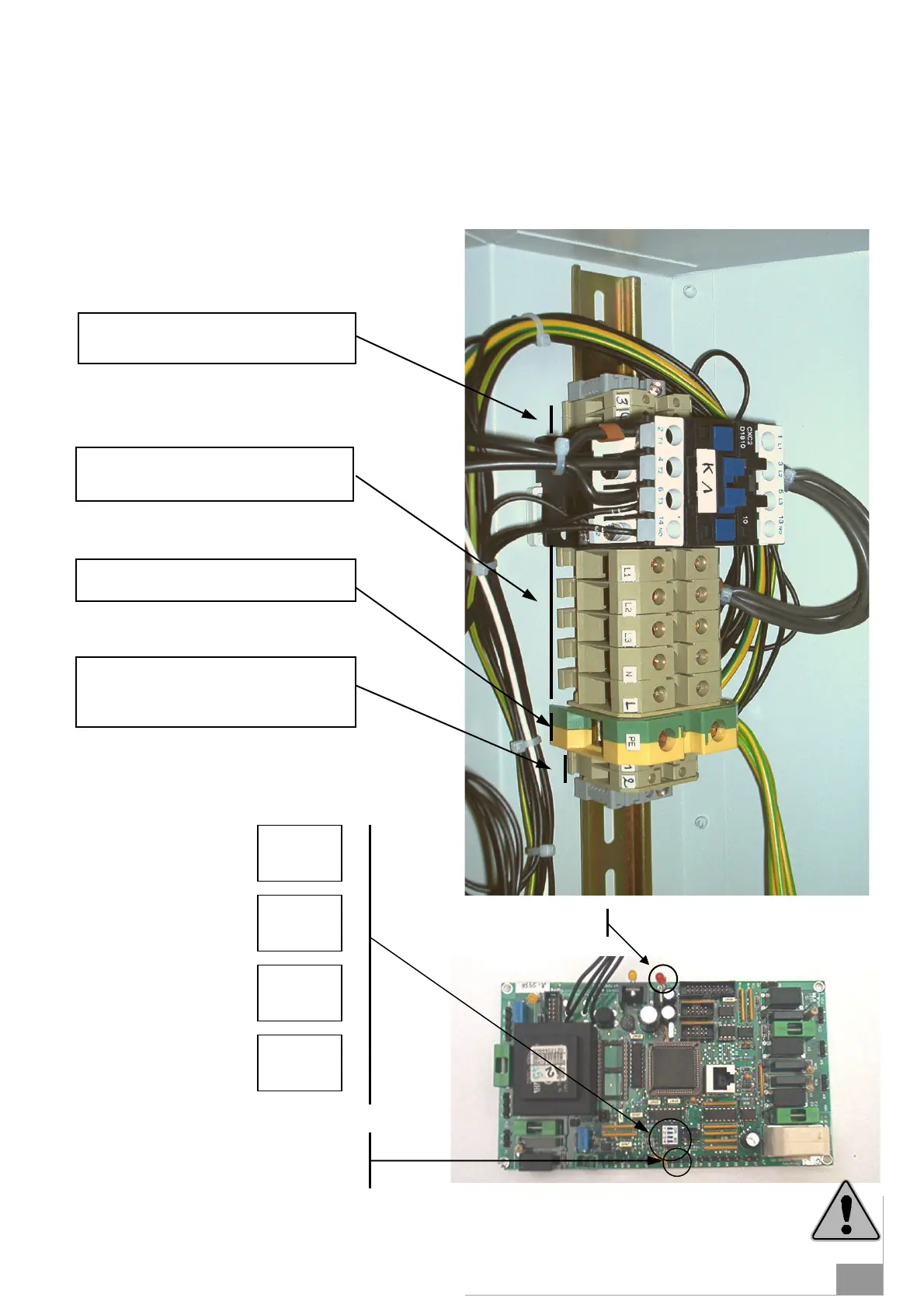

Terminal block X5 : connect the control
signal wires here (pins 19 & 20)
! Mind the
olarities
