aDVancED mEnu controlS
DV54 AutoAdjust Patient Menu Layout

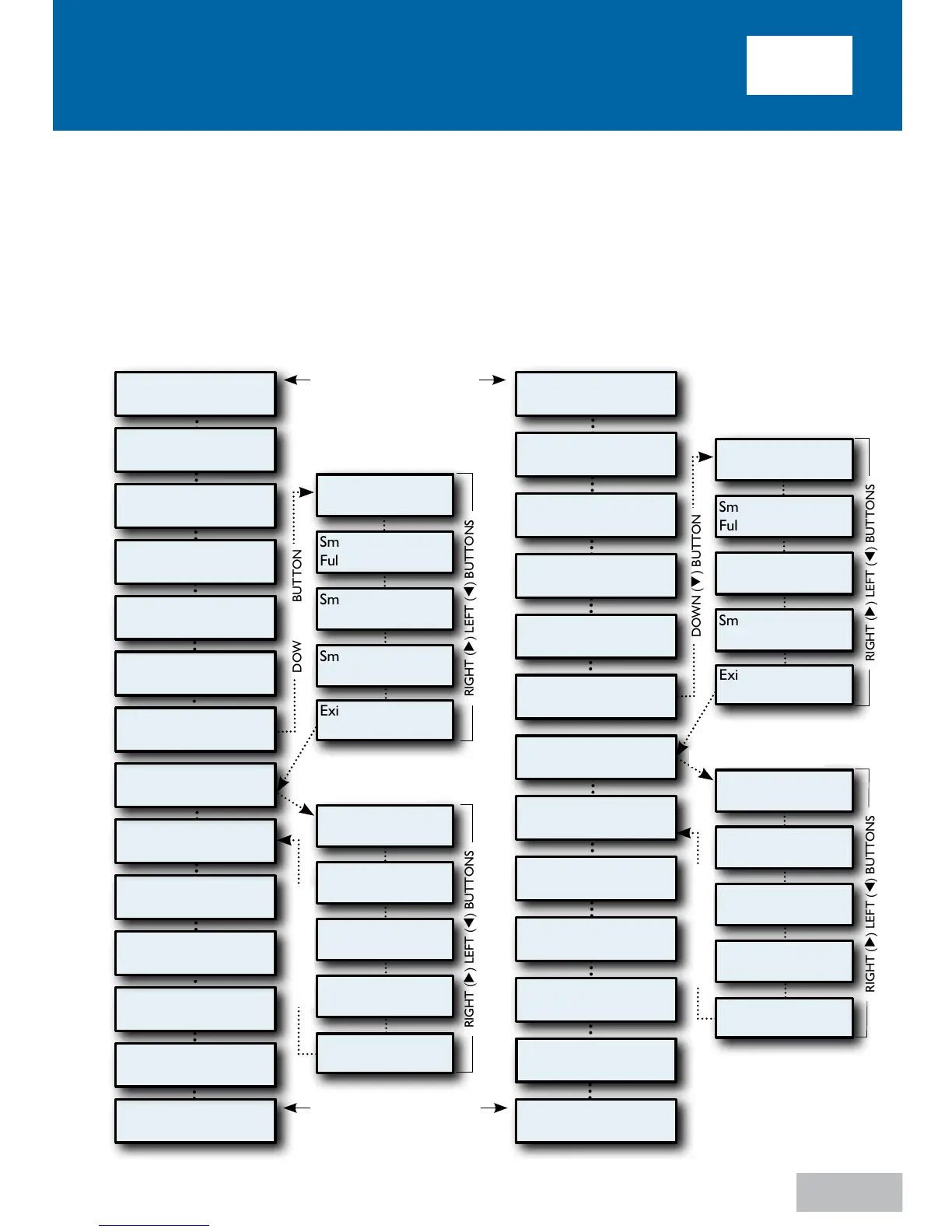

The following chart shows by Mode each Display you will scroll through using the Next or
Previous buttons on the keypad. Pressing the Down key at the Enable Menu Display will
allow you to enter this submenu - then use Next or Previous buttons to scroll through it;
press the Up button to return to main menu. Once the final Display is reached, pressing the
Next button will return you to the first Display.
UP () BUTTON
RIGHT () LEFT () BUTTONS
Auto-ON
Enabled
Auto-OFF
Disabled
Exit Menu
Press
Mask Fit Check
Enabled
Low Backlight
Enabled
RIGHT () LEFT () BUTTONS
SmartFlex Mode
Full Time
SmartFlex
3
Exit Menu
Press
SmartFlex IRnd
3
SmartFlex ERnd
3
DOWN () BUTTON
UP () BUTTON
DOWN () BUTTON
UP () BUTTON
RIGHT () LEFT () BUTTONS
Auto-ON
Enabled
Auto-OFF
Disabled
Exit Menu
Press
Mask Fit Check
Enabled
Low Backlight
Enabled
MENU - AutoAdjust Mode MENU - CPAP Mode
P:10.0 FLX Auto
Heat:Off
Upper Limit
15.0 cmH2O
Lower Limit
5.0 cmH2O
Compliance Meter
123456.7 hours
Serial Number
HD000005
Firmware Version
V0.20 30/06/2010
LCD Contrast Adj
50 %
Enable Menu
Press
Tubing Length
1.8 m (6 ft)
Delay Time
20 minutes
SmartCode 1-Day
F6CD-37F-357R
Adherence Score
83% (25/30)
There are 5 levels
of SmartCode data. Use
UP or DOWN key to
change between levels.
Delay Pressure
4.0 cmH2O
SmartFlex Menu
Press
RIGHT () LEFT () BUTTONS
SmartFlex Mode
Full Time
SmartFlex
3
Exit Menu
Press
SmartFlex IRnd
3
SmartFlex ERnd
3
DOWN () BUTTON
P:10.0 FLX CPAP
Heat:Off
Set Pressure
10.0 cmH2O
Delay Pressure
4.0 cmH2O
Delay Time
20 minutes
Enable Menu
Press
SmartCode 1-Day
F6CD-37F-357R
Tubing Length
1.8 m (6 ft)
SmartFlex Menu
Press
UP () BUTTON
Compliance Meter
123456.7 hours
Serial Number
HD000005
Firmware Version
V0.20 30/06/2010
LCD Contrast Adj
50 %
Adherence Score
83% (25/30)
DOWN () BUTTON
Heater setting shown if
DV5HH is attached, FLX
shown if SmartFlex feature
is turned on.
