DS2400Q QAM Analyzer Operation Manual
DEVISER 31 DS2400Q
Soft Keys Operation:

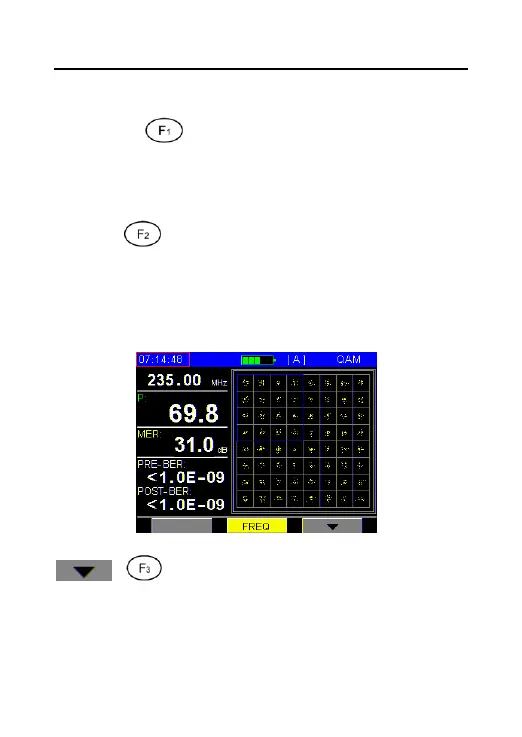

CH INFO ( ): Press this button to display the
current channel information, and user can modify
all of the parameters in this menu.
FREQ ( ): Press this button to display the
current frequency POWER, MER, BER (pre-BER
and post-BER) and constellation diagram as
figure 3-4-2, press this button again to return.
Figure3-4-2
( ):Press this button to next page as
figure 3-4-3, the user can press this button again
to return.
