Devolo Magic 1 User Manual

Network configuration 46
devolo Magic 1 WiFi
2-1
Then, restart the devolo Magic adapter (see Chap-
ter 4.7.3 Configuration) to ensure that your chan-
ges take effect.
IPv6 configuration
If you want automatic IP address assignment and
there is already a DHCP server present on the net-
work for assigning IP addresses (e.g. your Internet
router), enable the Retrieve network settings
from a DHCP server option to ensure that the
devolo Magic 1 WiFi
2-1
automatically receives an
address from it.
If you want to assign a static IP address, make
entries accordingly for the Address, Subnet mask,
Default gateway and DNS server fields.
Confirm your settings by clicking the Disk icon.
4.7 System
In the System area, you can configure the settings
for security and other devolo Magic adapter device
functions.

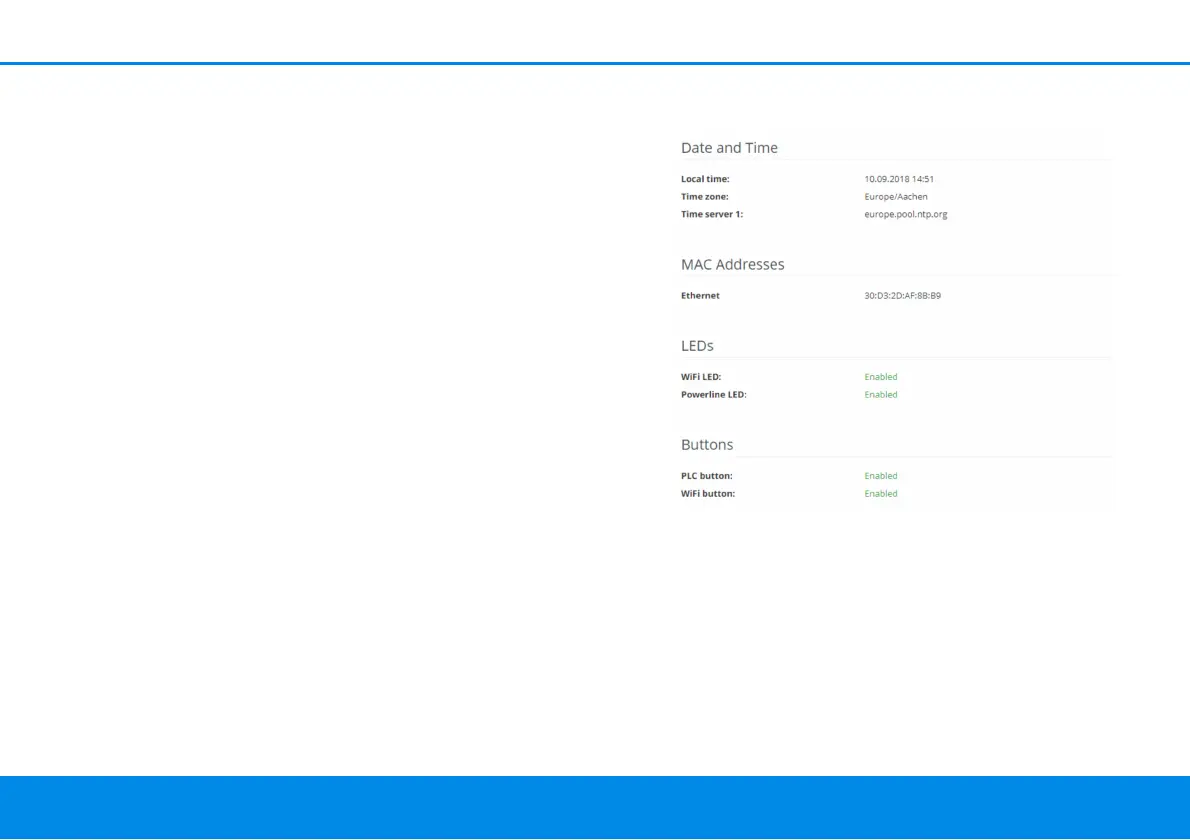

4.7.1Status
Here you can view the most important information
on the devolo Magic adapter, including the current
date and time, time zone, MAC address of the
adapter, status of the WiFi and Powerline LEDs and
the two operating buttons.
4.7.2Management
System information lets you enter user-defined
names in the Device name (hostname) and
Device location fields. Both pieces of information
are particularly helpful if multiple devolo Magic
adapters are to be used and identified in the
network.

Devolo Magic 1 Specifications

General

Frequency Band	2.4 GHz
Powerline Networking	Yes
Encryption	128-bit AES
Ethernet LAN data rates	10, 100 Mbit/s
Wi-Fi standards	802.11n
Security algorithms	WPA2
Maximum Data Rate	300 Mbps
Ports	Ethernet
Maximum Powerline Data Rate	1200 Mbit/s
