Devolo Magic 2 WiFi 2-1 User Manual

Introduction 12
devolo Magic 2 WiFi
2-1
2 Introduction
2.1 devolo Magic
Home is where devolo Magic is – in no time at all,
devolo Magic transforms your house or flat into a
multimedia home of the future with noticeably
higher speed, more stability and greater range,
providing the perfect Internet experience as a
result!
Be inspired by products that are astonishingly easy
to install, with impressive, innovative technology
and unbeatable performance.
Be ready for the technology of the future today
devolo Magic embodies the new generation of the
tried-and-tested Powerline technology (PLC) ba-
sed on the cutting-edge G.hn architecture. G.hn
was developed by the International Telecommuni-
cation Union (ITU) with ongoing development pro-
vided primarily by the HomeGrid Forum industry
association. devolo Magic products are certified
according to HomeGrid standards and are compa-
tible with other HomeGrid-certified products.

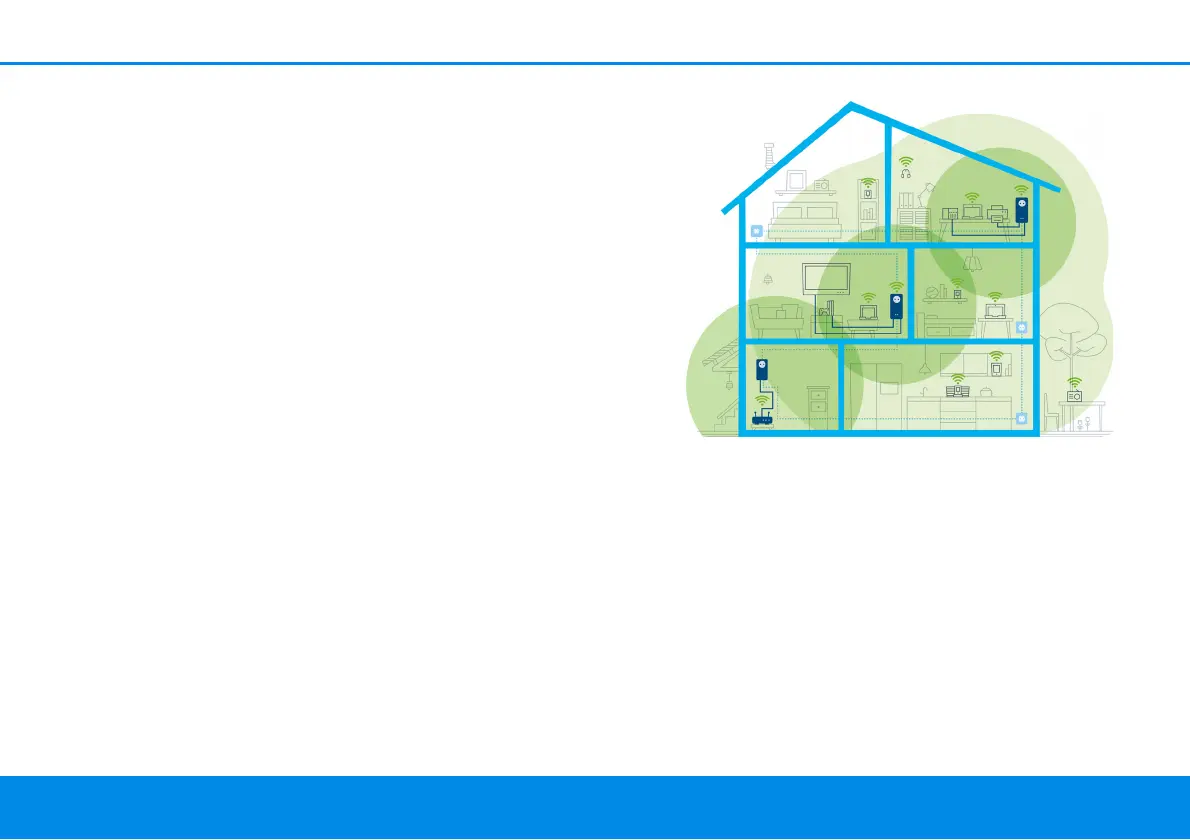

Fig. 1 devolo Magic throughout the home

Devolo Magic 2 WiFi 2-1 Specifications

General

Modulation	64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, QPSK
Power plug	Type F
Ethernet LAN	Yes
Damping filter	2 - 80 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
PowerLine standard	HomePlug AC
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	128-bit AES, WPA, WPA2, WPS-PBC, WPS-PIN
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Filter characteristics	-22 - -45 dB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Maximum data transfer rate	2400 Mbit/s
Maximum operating distance	500 m
Ethernet LAN interface type	Gigabit Ethernet
WLAN data transfer rates supported	300, 867 Mbit/s
Current	16 A
AC input voltage	196 - 250 V
AC input frequency	50 Hz
Power consumption (standby)	3.4 W
Power consumption (typical)	9 W
Antenna type	Internal
Certification	CE
Product color	White
LED indicators	PLC
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks
Linux operating systems supported	Ubuntu 14.04
Windows operating systems supported	Windows 10, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 Pro, Windows 8 Pro x64, Windows 8.1
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package type	Box
Cables included	LAN (RJ-45)
Quantity per pack	3 pc(s)

Weight and Dimensions

Depth	76 mm
Width	152 mm
Height	40 mm
