Network configuration 30
devolo Magic 2 WiFi
2-1

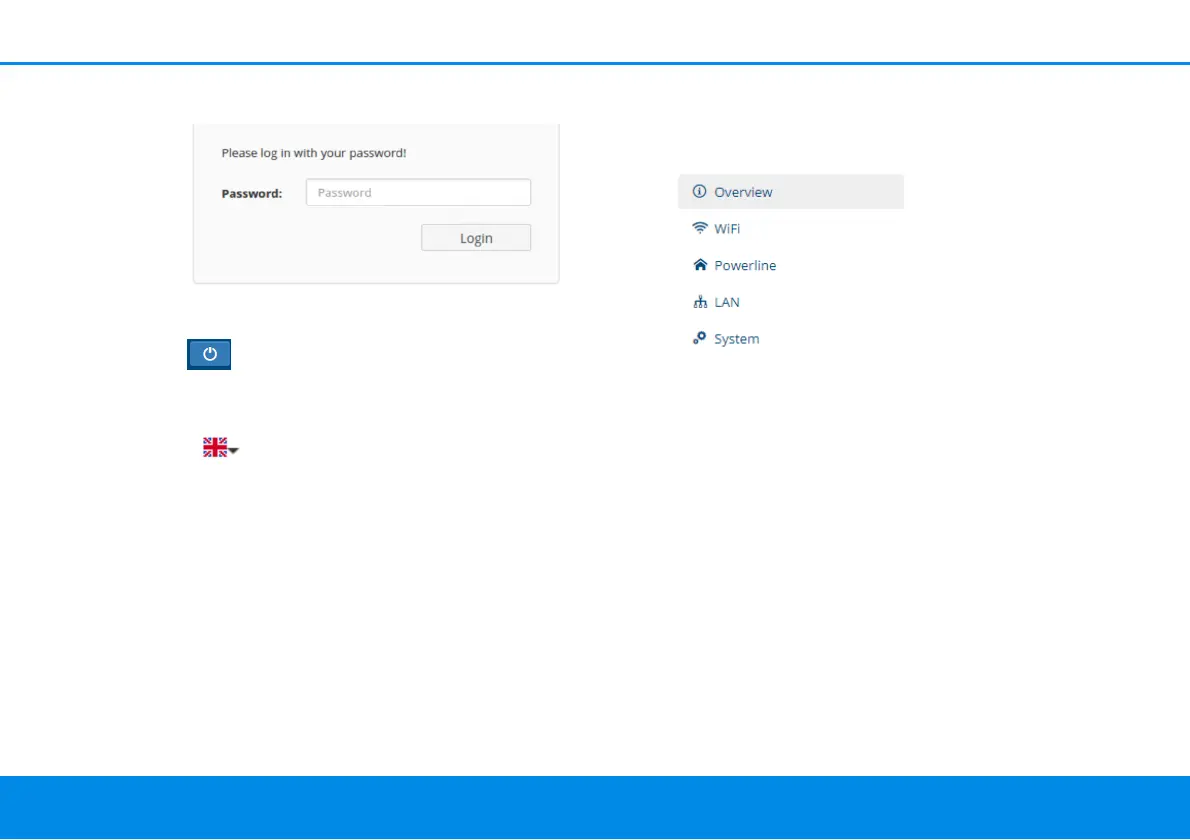

Enter your existing password each time you login
again and confirm by pressing Log in.
Logging out
Log out of the web interface by clicking Log
out.
Language selection
Select the desired language in the
language selection list.
The central areas of the web interface and their
sub-categories are listed on the left edge. Click the
entry for an area to move directly into it.
Making changes
Once you make a change, two icons are shown on
the corresponding menu page:
b Disk icon: Your settings are being saved.
b X icon: The operation is being cancelled. Your
settings are not being saved.
Required fields
Fields with a red border are required fields. This
means entries must be made in these fields to con-
tinue with the configuration.

Devolo Magic 2 WiFi 2-1 Specifications

General

Modulation	64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, QPSK
Power plug	Type F
Ethernet LAN	Yes
Damping filter	2 - 80 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
PowerLine standard	HomePlug AC
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	128-bit AES, WPA, WPA2, WPS-PBC, WPS-PIN
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Filter characteristics	-22 - -45 dB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Maximum data transfer rate	2400 Mbit/s
Maximum operating distance	500 m
Ethernet LAN interface type	Gigabit Ethernet
WLAN data transfer rates supported	300, 867 Mbit/s
Current	16 A
AC input voltage	196 - 250 V
AC input frequency	50 Hz
Power consumption (standby)	3.4 W
Power consumption (typical)	9 W
Antenna type	Internal
Certification	CE
Product color	White
LED indicators	PLC
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks
Linux operating systems supported	Ubuntu 14.04
Windows operating systems supported	Windows 10, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 Pro, Windows 8 Pro x64, Windows 8.1
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package type	Box
Cables included	LAN (RJ-45)
Quantity per pack	3 pc(s)

Weight and Dimensions

Depth	76 mm
Width	152 mm
Height	40 mm
