Network configuration 38
devolo Magic 2 WiFi
2-1
b In addition, the new air-time fairness feature
processes the requests of high-speed WiFi cli-
ents at higher priority. This prevents older
devices, which may require more time for a
download, from creating WiFi bottlenecks.
b Integrated band steering ensures that all WiFi
stations automatically switch to the optimum
frequency band (2.4 and 5 GHz frequency
band) in order to use the best WiFi connection
at all times.
In order to turn the mesh functions on, activate the
Enable option.

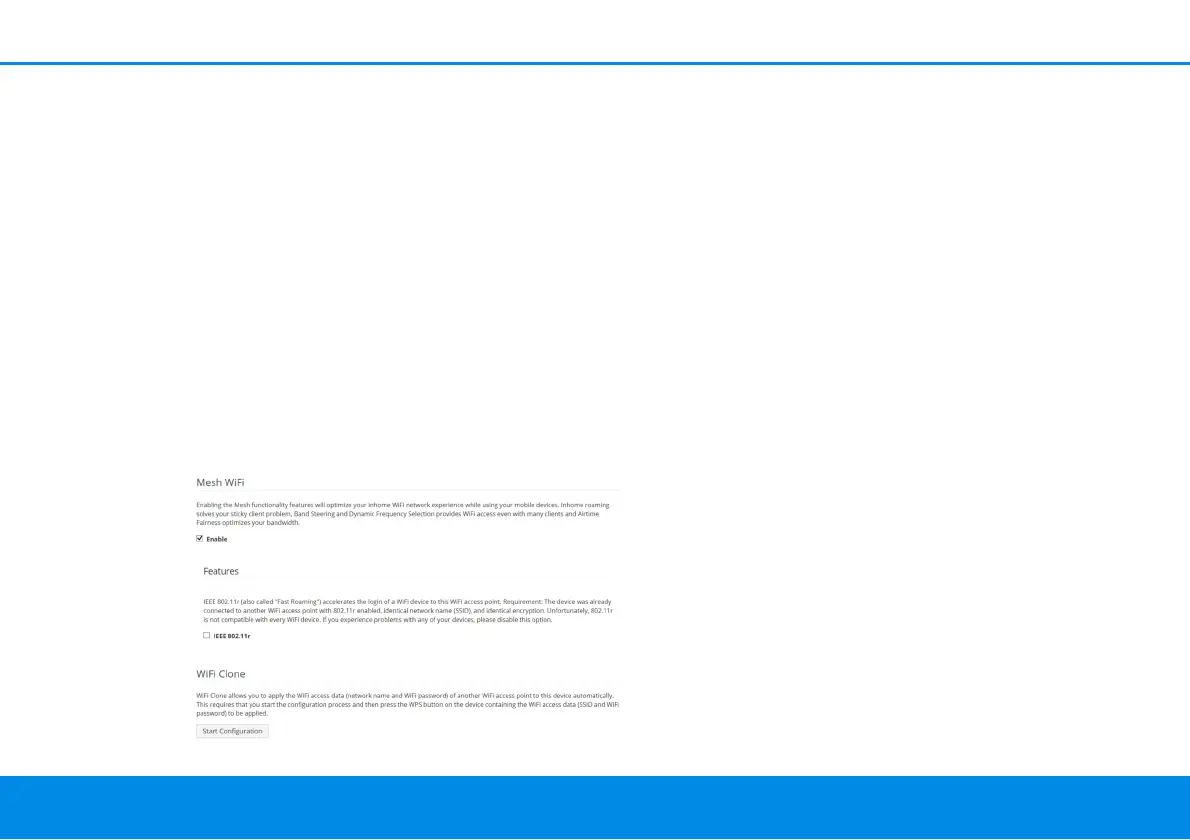

The mesh function of the devolo Magic 2 WiFi
2-1
is switched on by default.
WiFi Clone
WiFi Clone makes it possible to simply copy the
WiFi configuration data of an existing WiFi access
point (e.g. your WiFi router) to all WiFi access
points (Single SSID). Start the procedure with the
Start Configuration option and then press the
WPS button of the device with the WiFi access data
(SSID and WiFi password) to be applied.

Devolo Magic 2 WiFi 2-1 Specifications

General

Modulation	64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, QPSK
Power plug	Type F
Ethernet LAN	Yes
Damping filter	2 - 80 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
PowerLine standard	HomePlug AC
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	128-bit AES, WPA, WPA2, WPS-PBC, WPS-PIN
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Filter characteristics	-22 - -45 dB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Maximum data transfer rate	2400 Mbit/s
Maximum operating distance	500 m
Ethernet LAN interface type	Gigabit Ethernet
WLAN data transfer rates supported	300, 867 Mbit/s
Current	16 A
AC input voltage	196 - 250 V
AC input frequency	50 Hz
Power consumption (standby)	3.4 W
Power consumption (typical)	9 W
Antenna type	Internal
Certification	CE
Product color	White
LED indicators	PLC
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks
Linux operating systems supported	Ubuntu 14.04
Windows operating systems supported	Windows 10, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 Pro, Windows 8 Pro x64, Windows 8.1
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package type	Box
Cables included	LAN (RJ-45)
Quantity per pack	3 pc(s)

Weight and Dimensions

Depth	76 mm
Width	152 mm
Height	40 mm
