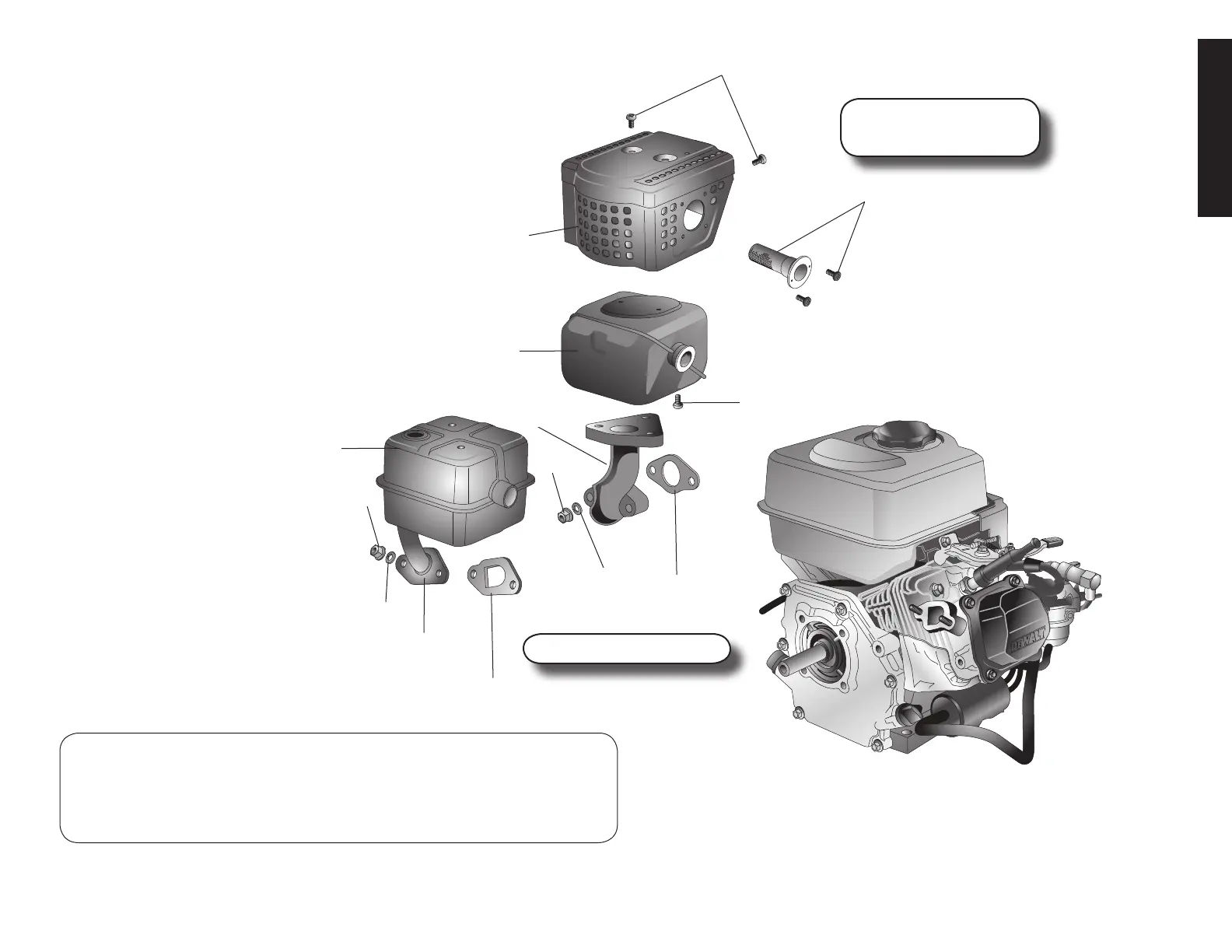

DeWalt DW168F - Muffler

25


NOTE: MODELS DW168F-2H-2E, DW177F-H-E,
DW188F-H ARE EQUIPPED WITH A HIGH MOUNT
MUFFLER
AA. Muffler
BB. Screws(4)
CC. Sparkarrestorandscrew
DD. Gasket
EE. Lockwashers(2)
 FF. Nuts(2)
GG. Muffler cover
HH. Muffler Elbow
R14. Screws(3)
BB
CC
DD
EE
FF
AA
IMPORTANT:Theseproductsareequippedwithspark-arrestingmufflers.Itislegally
requiredinthestateofCalifornia.ItisaviolationofCaliforniastatutessection130050and/or
sec tions 4442 and 4443 of the California Public Re sourc es Code, unless the engine is
equippedwithasparkarrester,asdefinedinsection4442,andmaintainedineffective
workingorder.SparkarrestersarealsorequiredonsomeU.S.ForestServicelandand
mayalsobelegallyrequiredunderotherstatutesandordinances.
Donotreusegasket(DD).
Cleansparkarrestor(CC),
see Spark Arrester under
Maintenance.
GG
HH
AA
EE
FF
DD
MUFFLER FOR
DW177F-H-E AND
DW188F-H
MUFFLER FOR
DW168F-2-H-2E
HH
R14
