WARNING:
Always wear certified safety equipment: ANSI Z87.1 eye protection (CAN/CSA
Z94.3) with side shields when using compressed air.
CAUTION:
Commercially-available chemical cleaners are very caustic. These cleaners may
damage plastic parts such as O-rings, floats and float valve seats. Check the container for
instructions.
Do not use these products if in doubt.
CAUTION:
Using high air pressure may cause damage to the carburetor, only use low air pres-
sure settings when cleaning passages and ports.
CARBURETOR

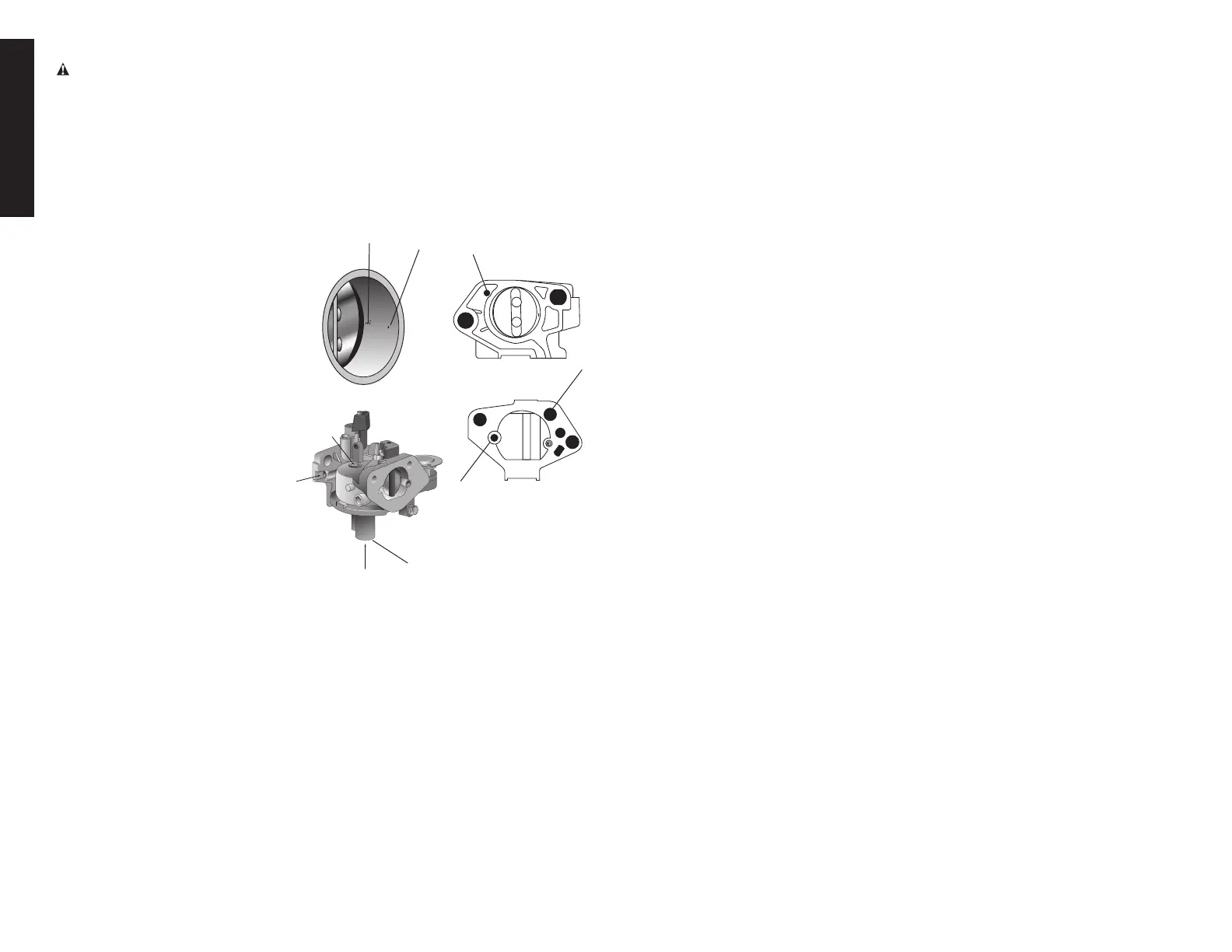

1. Clean the carburetor body
J4
K4
L4
I4
M4
N4
R2, M3
AIR CLEANER SIDE
J4
ENGINE BLOCK SIDE
with solvent.
2. Use low air pressure and
clean the following parts and
passages.
• Internal or external vent
port(J4)
• Pilotscrewhole(K4)
• Pilotjethole(L4)
• Pilotairjet(R2,M3)
• Mainjet(I4)
• Transitionports(M4)
• Pilotoutlet(N4)
To Next Page
