DeWalt DW168F - Page 33

33



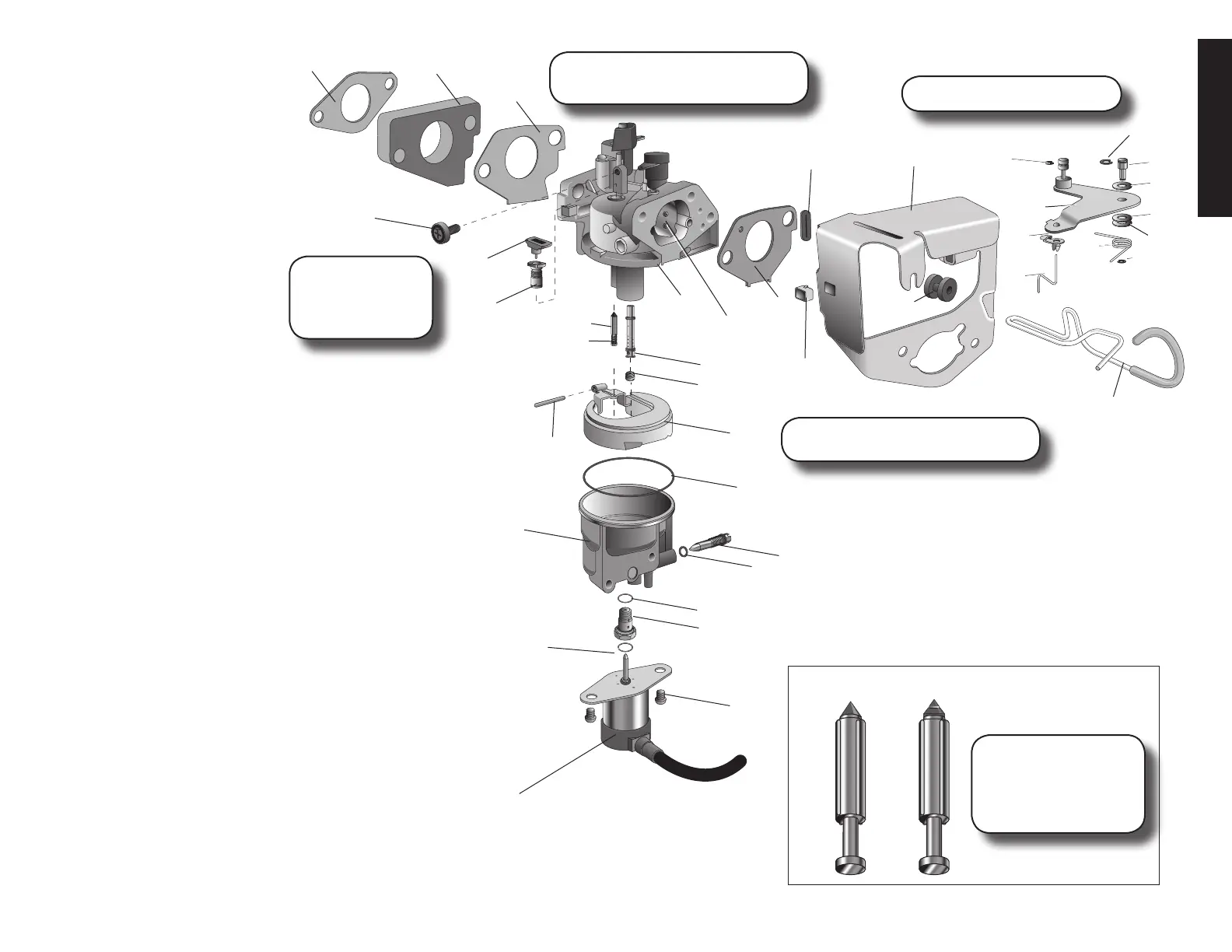

MODELS DW177FD-F, DW188F1-F
ASSEMBLY
Y2. O-ring, fuel shut off
Z2. Insulator Plate
B3 Carburetorgaskets(2)
D3. Valve assembly solenoid
E3. Carburetor bowl
F3. Fuel drain bolt
H3. Float pin
I3. Float valve spring
J3. Float valve
K3. Float
L3. Throttle stop screw
M3. Pilot Jet
N3. Throttle stop screw seat
 03. Chokevalve
P3. Carburetor Body
Q3. Chokering
R3. Chokerod
S3. Screw(2)
 T3. Gasket,manifoldintake
U3. Long grommet
V3. Fuel shut off bolt
W3. O-ring, carburetor bowl
X3. Chokestopper
Y3. Chokebracket
 Z3. E-ring(2)
A4. Chokelinkage
B4. Chokeguide
C4. Return spring
D4. Steel Washer
E4. Wearguard(2)
F4. Control post
G4. E-ring
H4. ChokeGrommet
I4. Main jet
X2. E-tube
Z10 O-ring, drain bolt
Adjust throttle
stopscrew(L3).See
Throttle Adjustment
under Maintenance.
Cleancarburetorbody(P3).
Check for smooth movement after
installingthefloat.(K3)
Z2
B3
E3
N3
M3
Q3
R3
L3
K3
J3
H3
V3
P3
Before reassembling
float (K3), check float
valvespring(I3)andfloat
valve (J3) for wear and
replace if needed.
OK REPLACE
DO NOT reuse carburetor gaskets
(B3)ormanifoldgasket(T3).
O3
I3
Y2
T3
Z3
C4
E4
E4
F4
Z3
B4
A4
S3
D3
B3
F3
Y2
W3
U3
Y3
H4
G4
D4
X3
X2
I4
Z10
