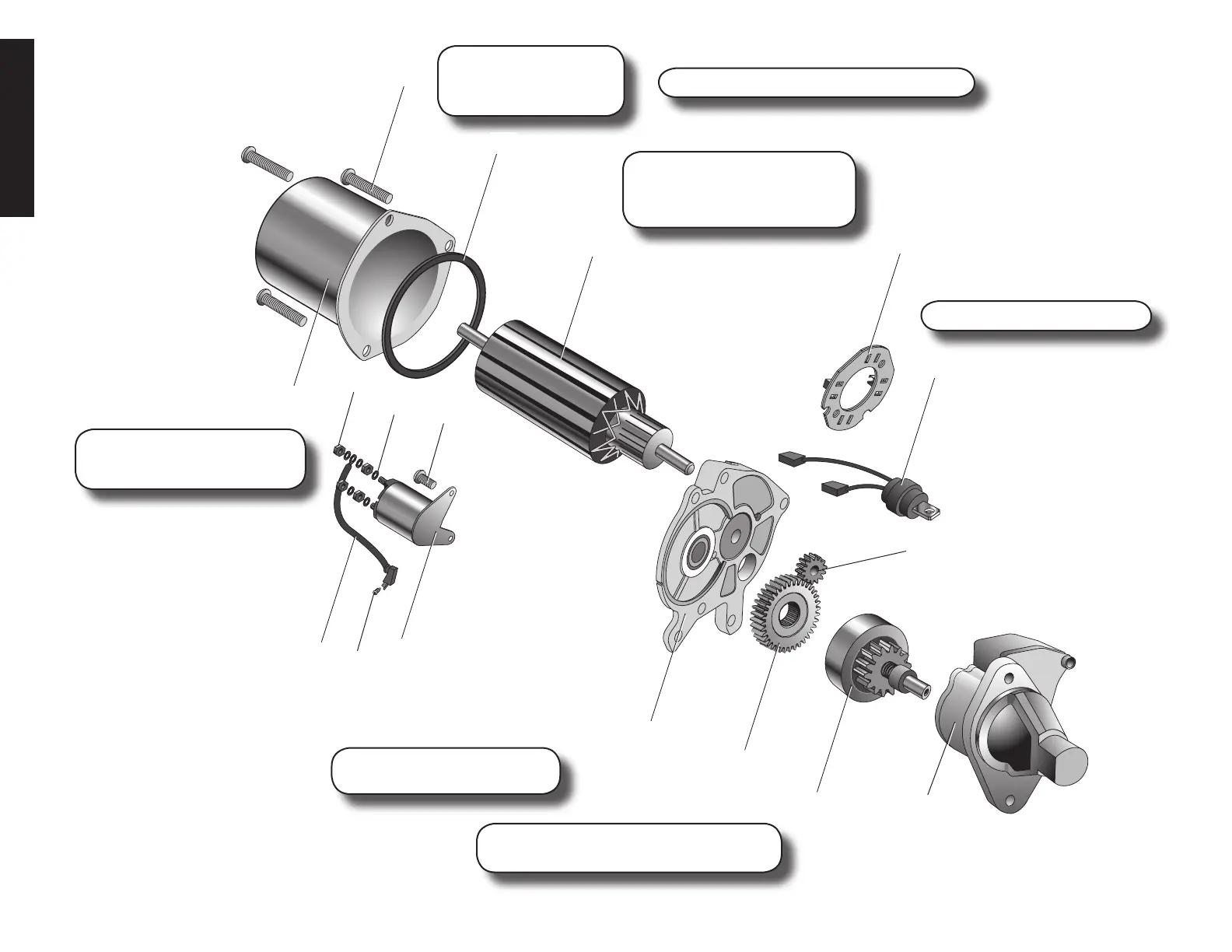

DeWalt DW168F - Starter Motor

40


DW177FD-F, DW188FD-F
N6. Bolts(3)
O6. O-ring
P6. Commutator/Armature assembly
Q6. Brush plate
R6. Brush/terminal assembly
S6. Pinion gear
T6. Driver side housing
U6. Reduction gear
V6. Frontbracket
W6. Overrunning clutch
X6. Starter solenoid
Y6. Terminal screw
Z6. Conductor wire
A7. Screw
B7. Washers(qty3)
C7. Nuts(qty3)
D7. Magnetic Can
Disconnectwiresfrompowerequipment.
Checkflywheelringgearteeth
if pinion gear teeth are damaged.
Holdmagneticcan(D7)tightly
when replacing, The magnetic field
willpullcanontoarmature(P6).
Makesure gears line up and commutator/
armatureassembly(P6)turnsfreely.
Makesuremagnetsareclean
Checkthecommutator/armature
assembly (P6) for dust or other
damage. Wipe clean with lint-free
cloth
To remove starter motor
fan, the cover and flywheel
must be removed.
N6
O6
P6
Q6
R6
S6
T6
U6
V6
W6
A7
B7
C7
D7
X6
Y6
Z6
