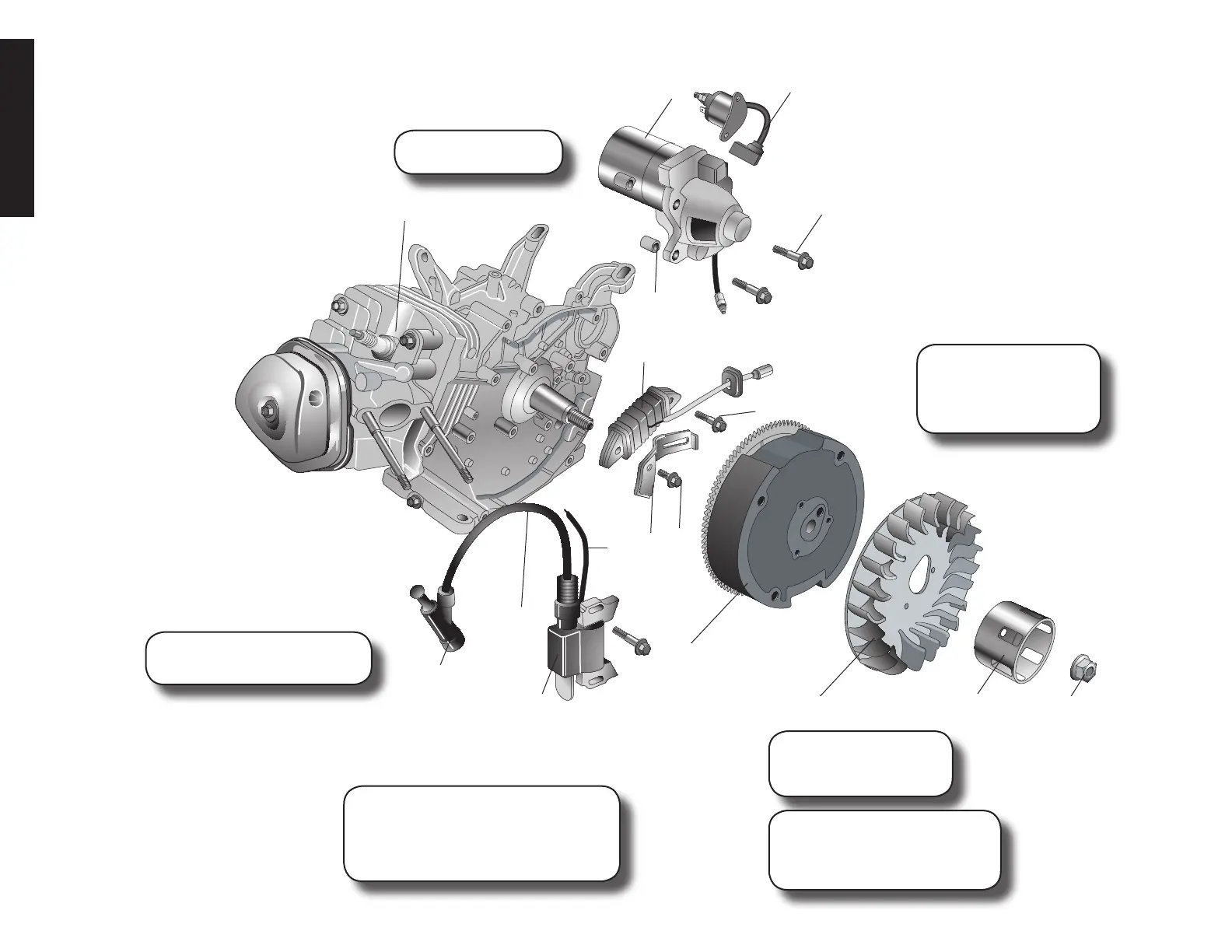

DeWalt DW168F - Flywheel IGNITION

38


U5 Startermotor(electricstart)
W5. Relay Assembly
Y5. Starterbolt(2)
Z5. Flange nut
A6. Starter pulley
B6. Fan
C6. Flywheel
D6. Ignition coil
E6. Sparkplugwire
 F6. Sparkplugboot
G6. Sparkplug
H6. Spacer
I6. Charge coil
 J6. Bracket
K6. Bolt
 L6. Bolt(2)
M6. Ignition wire
NOTE: Place a screw
driver through slots in
starter pulley (A6) to hold
in place while loosening
nut(Z5).
When removing fan be
careful not to damage the
fan blades.
When reassembling fan align
the four lugs on the rear side of
the fan with the small holes in the
flywheel.
A6
B6
C6
E6
Z5
Use a commercially available flywheel
puller to remove the flywheel. Avoid the
magnetic section of the flywheel when
attaching the puller. DO NOT hit the fly-
wheel with a hammer.
Clean crankshaft
before reassembling
G6
F6
D6
Remove the ignition coil (D6)
before removing the flywheel.
U5
Y5
H6
I6
J6
K6
L6
M6
W5
