Dexter Laundry T650 - Page 115

5
1
6
7
8

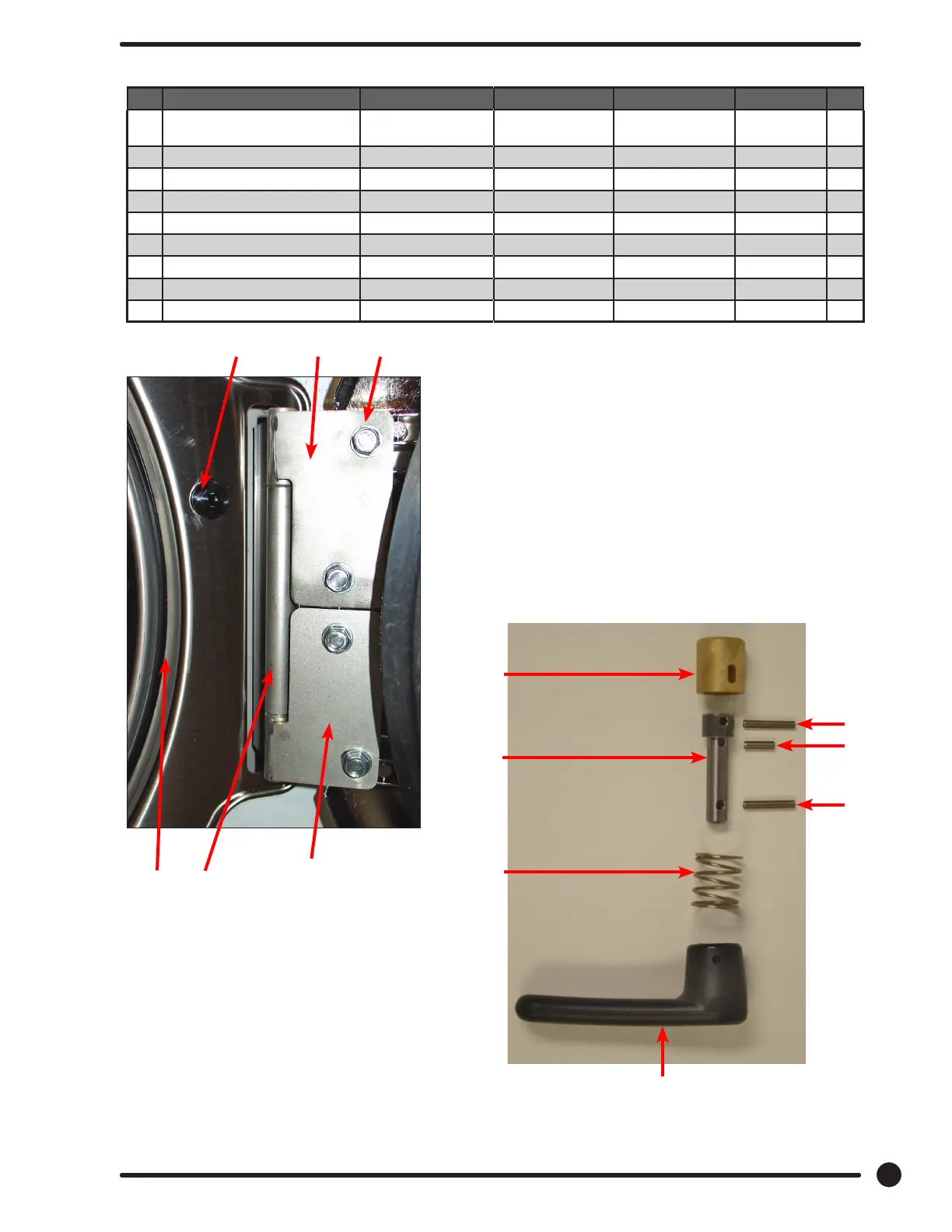

Key Description T650 T750 T950 T1450 QTY
* Shaft Assembly-Loading Door
(11-14)
9913-134-003 9913-134-003 9913-134-003 9913-134-003 1
11 Shaft, Door Locking 9537-195-002 9537-195-002 9537-195-002 9537-195-002 1
12 Cam, Locking 9095-040-002 9095-040-002 9095-040-002 9095-040-002 1
13 Pin, Groove (1 1/4) 9451-181-005 9451-181-005 9451-181-005 9451-181-005 1
14 Pin, Groove (3/4) 9451-181-004 9451-181-004 9451-181-004 9451-181-004 1
15 Spring, Lock Cam 9534-360-002 9534-360-002 9534-360-002 9534-360-002 1
16 Handle, Door 9244-091-001 9244-091-001 9244-091-001 9244-091-001 1
17 Pin, Door Handle (groove) 9451-181-005 9451-181-005 9451-181-005 9451-181-005 1
18 Trim, Edge 9578-092-005 9578-092-002 9578-092-002 9578-092-002 1
13
11
14
15
17
16
12
18
115
Part # 8533-093-001 1/18
