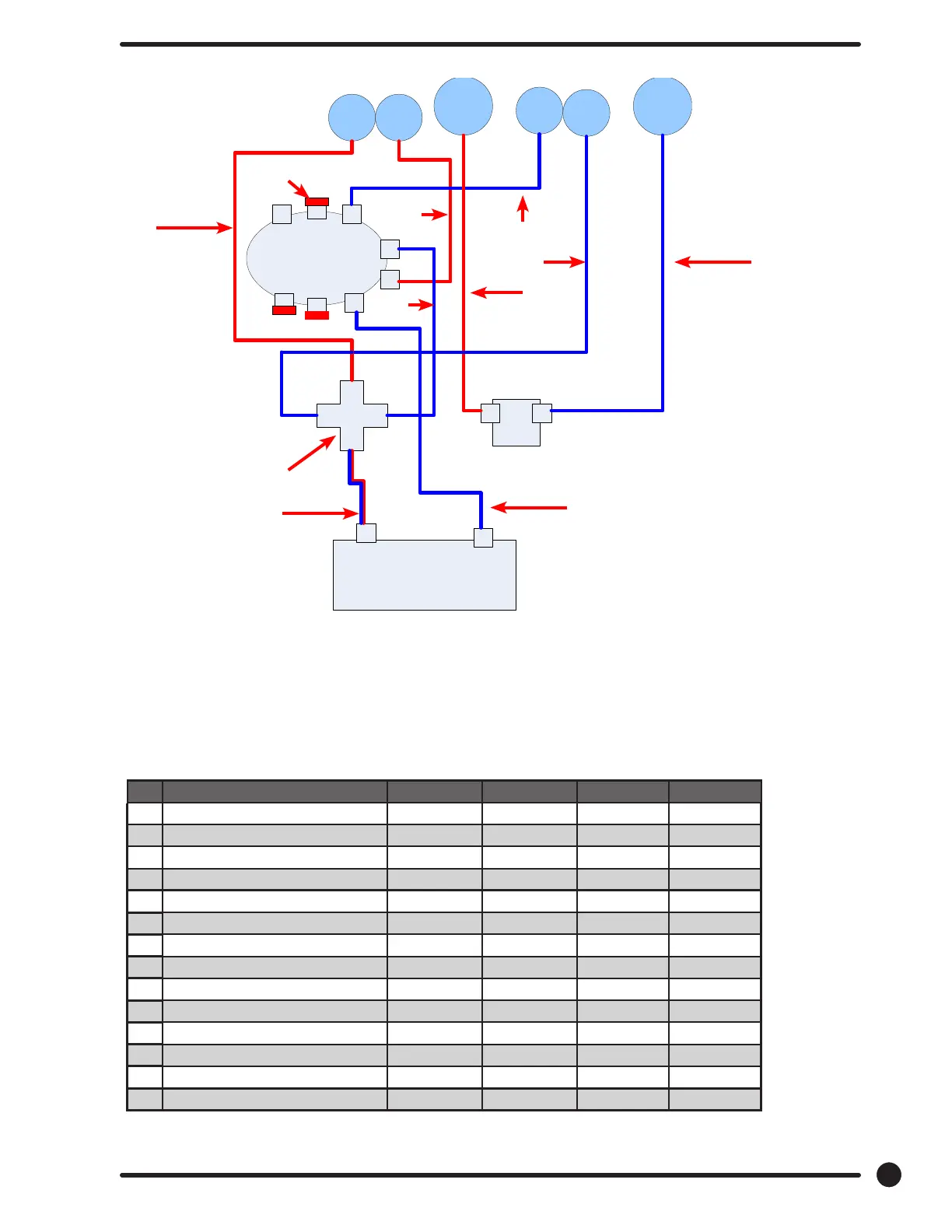

Key Description T650 T750 T950 T1450
1 9242-453-006 Hose-water,20” 1/2 I.D. 1
2 9242-453-009 Hose-water,23” 1/2 I.D 1 1 2
3 9242-453-018 Hose-water,29” 1/2 I.D 1
4 9242-453-020 Hose-water,18” 1/2 I.D 4 4 5 3
5 9242-453-021 Hose-water,31” 1/2 I.D 1
6 9242-453-022 Hose-water,43” 1/2 I.D
7 9242-453-023 Hose-water,40” 1/2 I.D 1
8 9242-453-024 Hose-water,37” 1/2 I.D 2 1
9 9242-453-025 Hose-water,19” 7/8 I.D 2
9 9242-453-026 Hose-water,25” 7/8 I.D 2
10 0935-135-002 Fill Cap, (Red) 3 3
11 8615-118-001 Fitting-Cross, 1/2” 1 1
* 8654-117-015 Clamp 1” SS 14 12 14 14
* 8654-117-017 Clamp 1 1/4” SS 4 4
9
6, 8
2, 4
4
4
11
10
3, 5, 7
2, 4
2, 4
9
121
Part # 8533-093-001 1/18
