Hardware Installation
2.6 I/O Connectors
2.6.1 Game/MIDI Connector
"
115
2

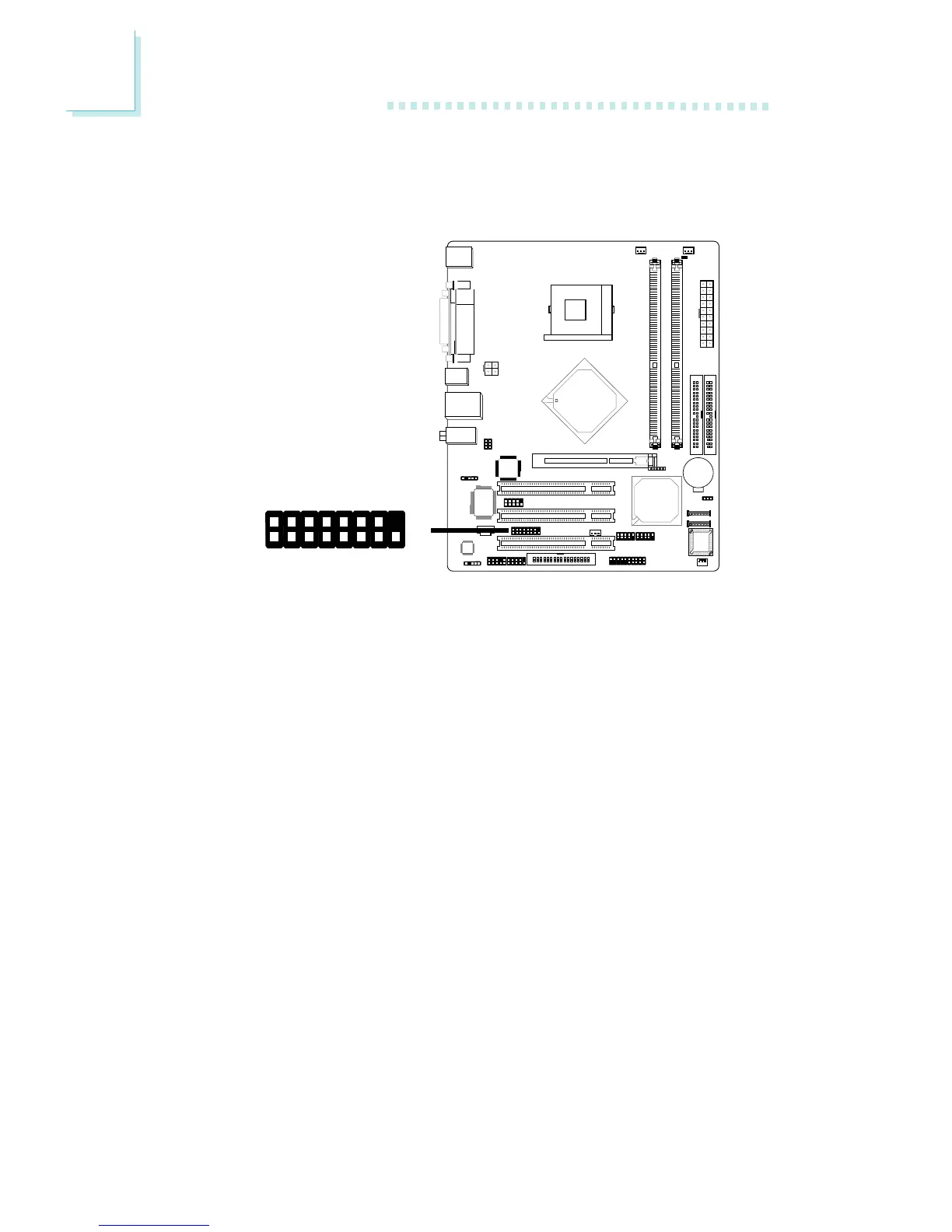

The system board is equipped with a 15-pin connector at location
J8 for connecting an external game/MIDI port. One card-edge
bracket, mounted with a game/MIDI port cable, will be provided as
an option. Install the card-edge bracket to the system chassis then
connect the game/MIDI port cable to connector J8. Make sure the
colored stripe on the ribbon cable is aligned with pin 1 of connector
J8.
BIOS Setting
Configure the game port in the Integrated Peripherals submenu
(“Super I/O Device” field) of the BIOS. Refer to chapter 3 for more
information.
