Hardware Installation
2.6.8 CPU Fan Connector

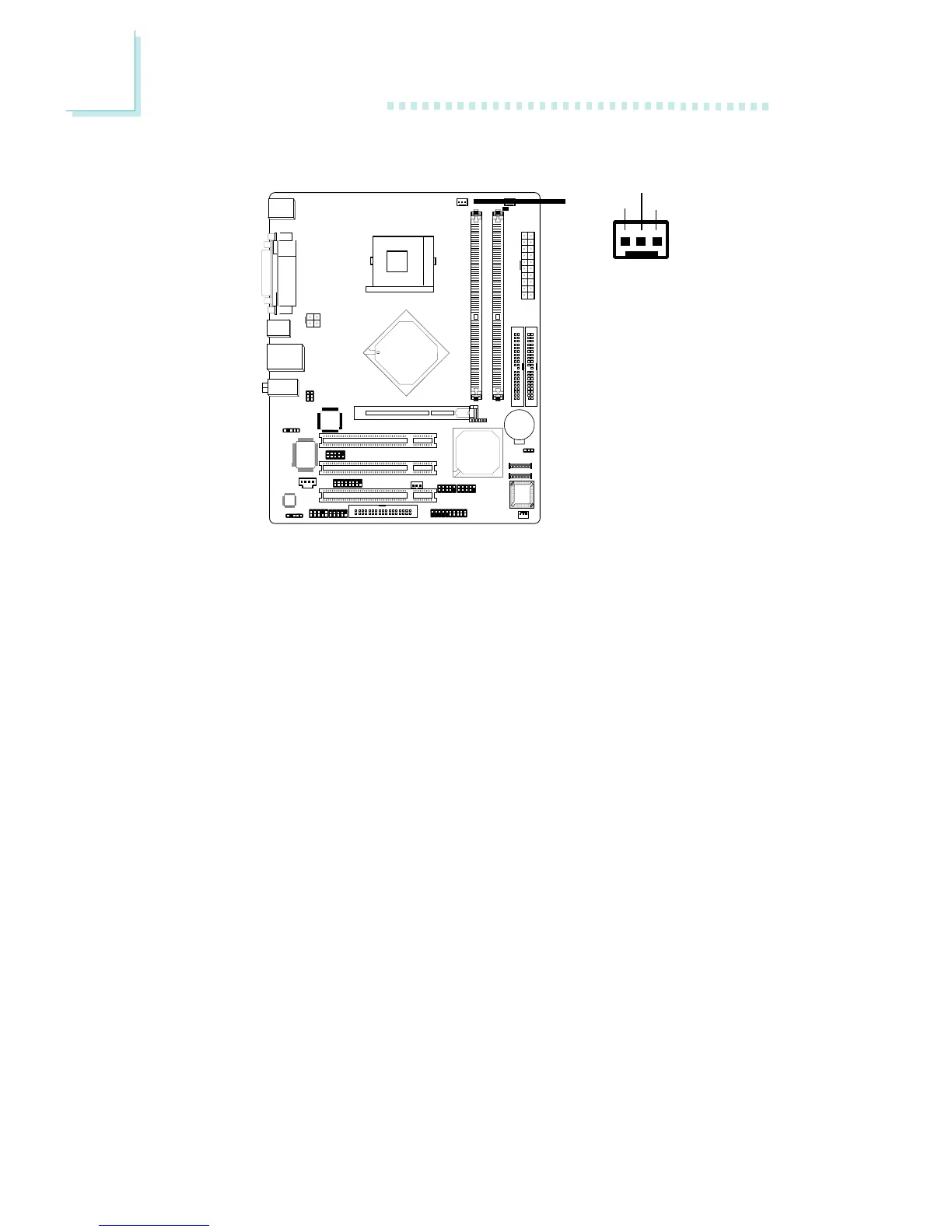

The CPU must be kept cool by using a fan with heatsink. Connect
the CPU fan to the 3-pin fan connector at location J13 of the
system board.
!
13
Ground
Power
N. C.
