Hardware Installation

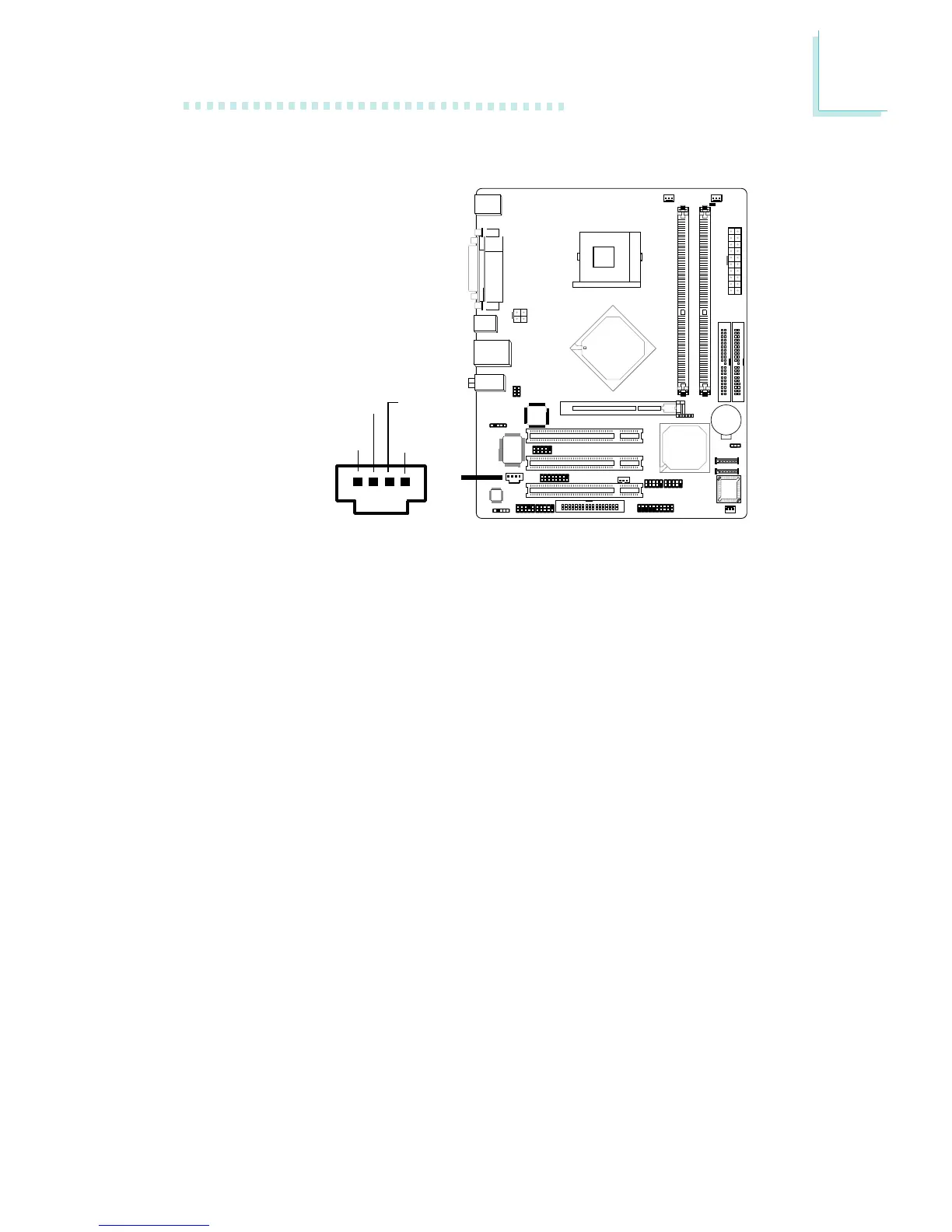

2.6.2 CD-in Internal Audio Connector
The CD-in (J4) connector is used to receive audio from a CD-ROM
drive, TV tuner or MPEG card.
14
Right audio
channel
Left audio
channel
Ground Ground
"
