DIG 720A Series User Manual

NOTE: DIG has seven adapters available that will fit most valves. The three most
widely used models are included with each controller.

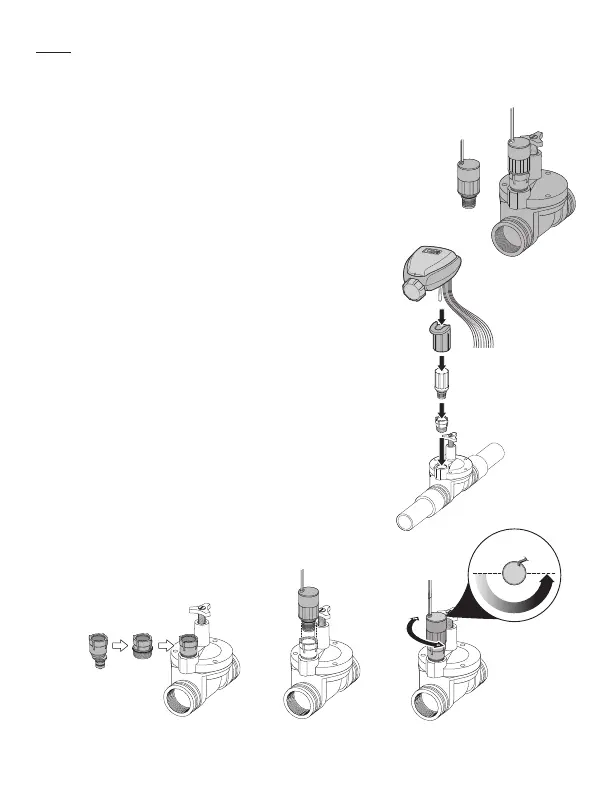

4. Screw the selected adapter into the valve solenoid cavity
until hand tight. If necessary, tighten with pliers, but do
not over tighten.
5. Thread the S305DC solenoid into each valve adapter and
tighten by hand only (Figure F).
6. Open the main water supply valve and pressurize
the main line; the valve may discharge water
momentarily but should then close by itself.
7. Test each valve via the solenoid by turning the
solenoid counterclockwise one or two turns to open,
or until you hear or see water flowing through the
valve, and turn it back clockwise to close (Figure G).
8. Mount the controller using the solenoid mounting
and connect the wires: refer to section 4.1 on page
3 for wire connection steps.
9. Test each valve via the controller: refer to section
10.1 on page 27 for how to perform a manual run.
Figure F
Figure G
5
Additional system components
Additional system components
Additional system components
Additional system components
A B C
ONOFF
