DIG LEIT-1 User Manual

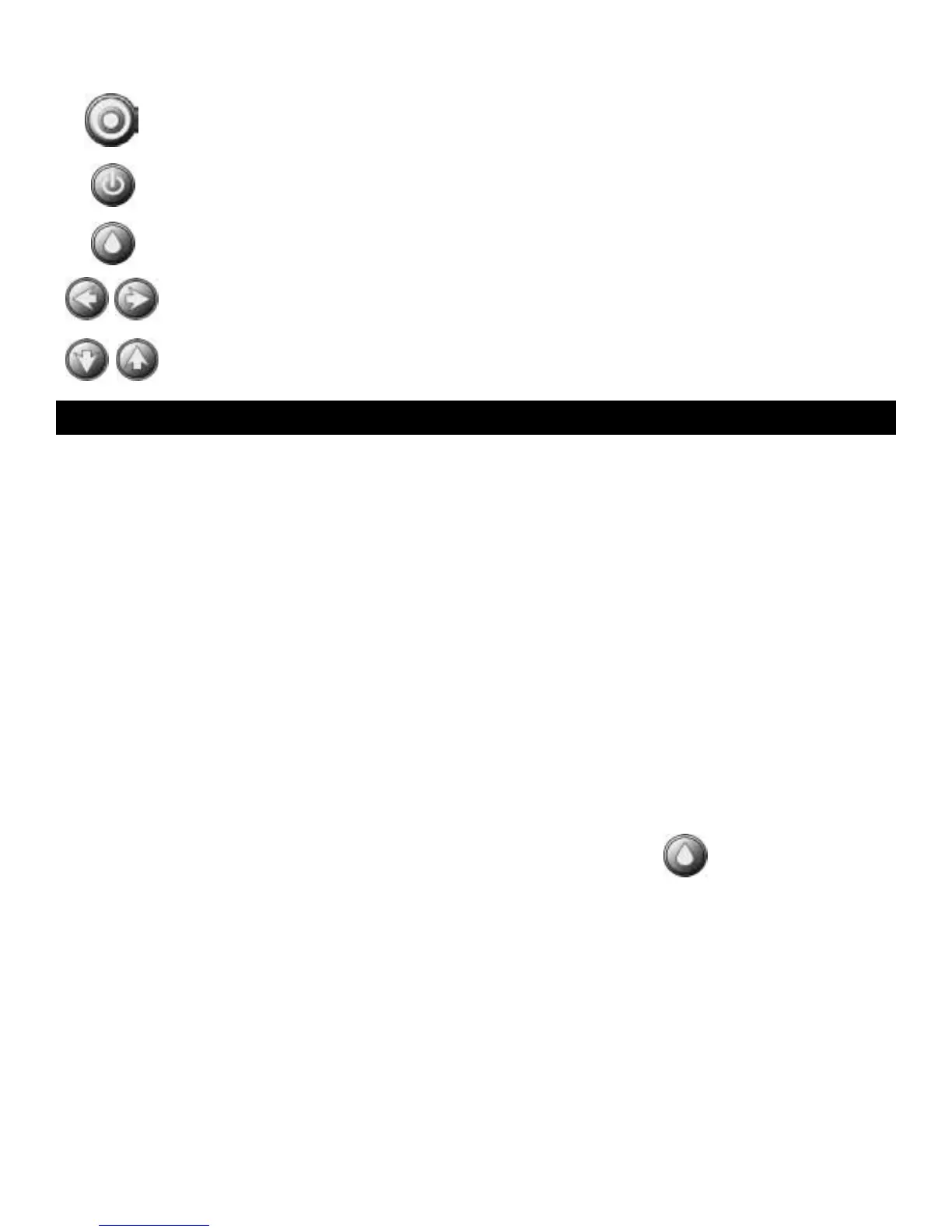

Control Buttons
Select programming mode
Turn ON/OFF program
Start/stop a manual cycle
Move left/right to select a value
Raise/lower the selected value
4. ValVe aDapTer InsTallaTIon
1. Shut off the main water supply
2. Remove the existing solenoid if applicable.
NOTE: If adapting to an IRRITROL valve, remove the solenoid but leave the
existing solenoid adapter installed.
3. Select the appropriate solenoid adapter associated with the valve. (see chart A)
4. Screw the solenoid adapter into the valve bonnet by hand, tighten with pliers if
necessary – but do not over tighten.
5. Thread the LEIT-1 solenoid into the valve adapter. Hand tighten only.
6. Turn the main water supply on and pressurize the valve; the valve may discharge
water momentarily but should then shut off.
7. Test the controller and the installation by pressing the
button or see
section 14 to perform a manual run.
To turn the valve on via the solenoid, lift the LEIT-1
™
controller from the
solenoid and turn the solenoid counter clockwise 1/2 to 3/4 of a turn, or until
you hear or see water flowing through the valve. To turn the water off, turn the
solenoid clockwise 1/2 to 3/4 of a turn and wait for the a few seconds for the
valve to close.
8. Program the LEIT-1
™
controller (see section 5).
