Digi Connect ME Hardware Reference Manual

About the Digi Connect ME family of embedded modules Module LEDs
Digi Connect ME, Wi-ME, ME 9210, Wi-ME 9210 Hardware Reference Manual
17

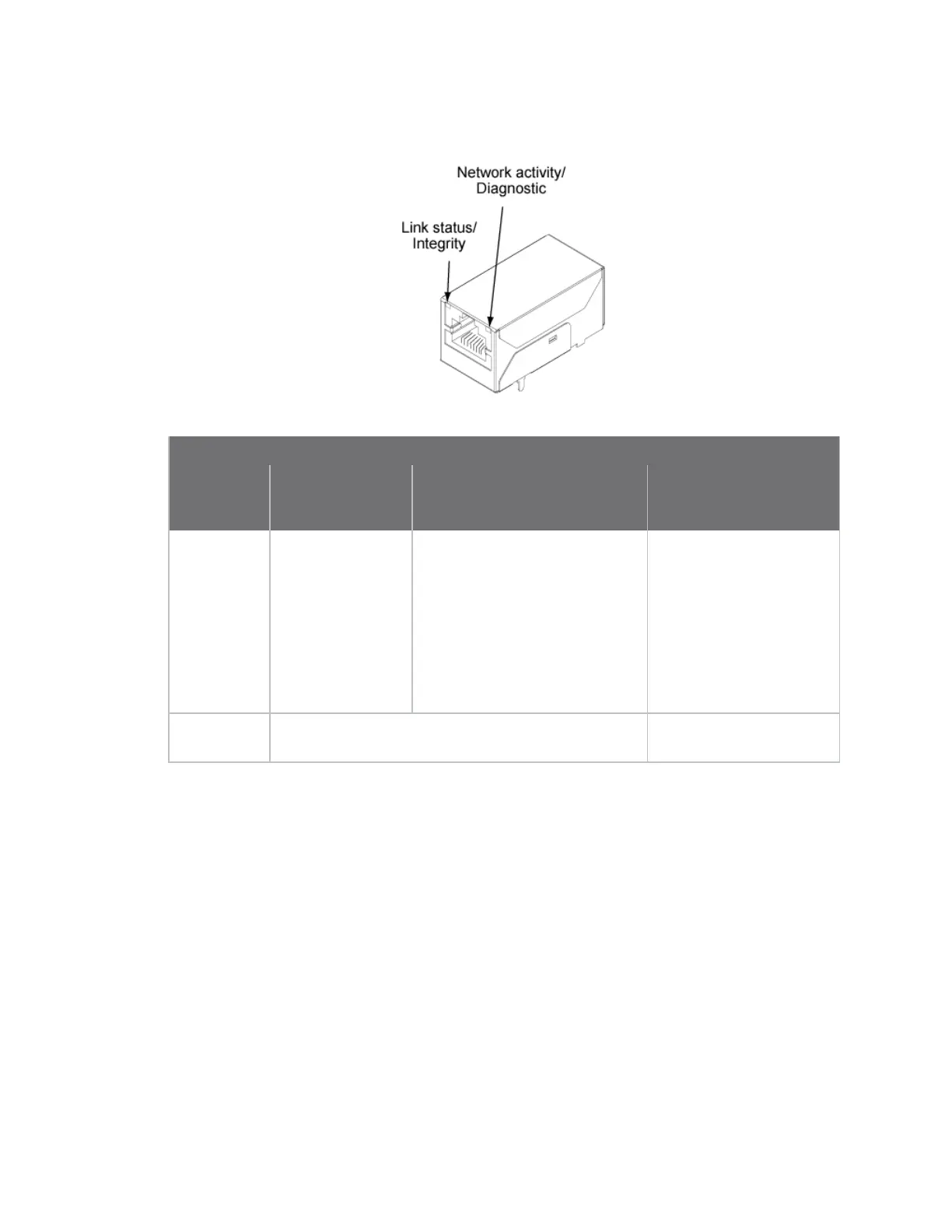

LED locations
LED Behaviors
LED
Digi Plug and Play
Firmware
Digi Connect ME
Digi Plug and Play Firmware
Digi Connect Wi-ME
Customizable Modules
Top left
(yellow)
Network link
status:
Off - no link has
been detected.
On - a link has been
detected.
Network link status:
n On - unit is associated
with an access point.
n Blinking slowly - unit is in
ad hoc mode.
n Blinking quickly - unit is
scanning for a network.
Same as Digi Plug-and Play
Firmware (Network link
status).
Top right
(green)
Network activity:
Blinking -network data is transmitted or received.
This LED is software
programmable.
