HI, MI, WI-700 service manual - 4 –servicing
4-100 Issue 9 04/2020
Signature labeller - fit printer door - continued

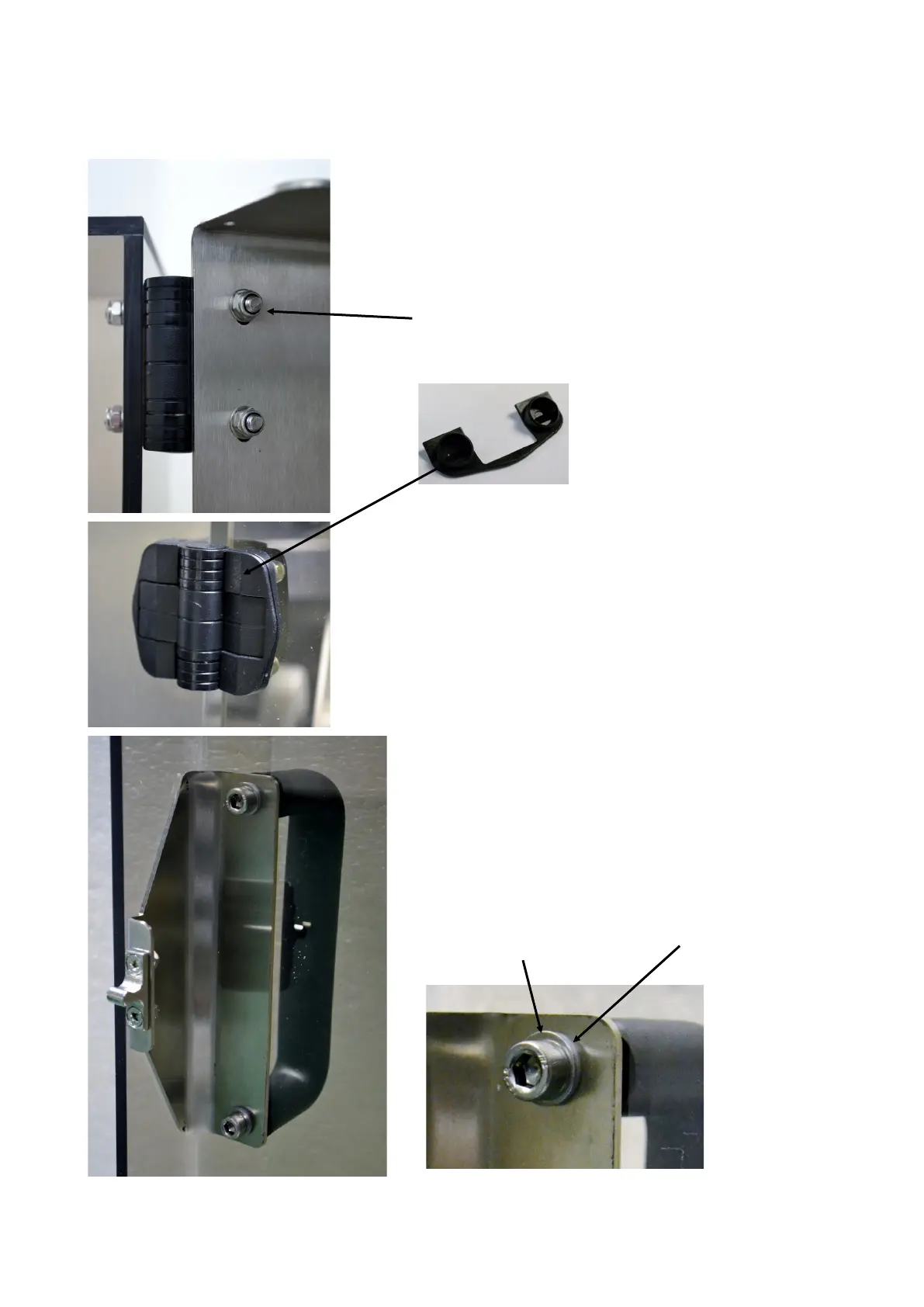

Fit hinge / door to hinge bracket - 701-0140-A
Use M5x12 pozi pan screw plus M5 nylock nut with plain
washer
Note: the fixing holes in the hinge bracket are slotted, fix
hinges in upper most position
Fit hinge cover to screws
Fit ball catch striker to striker bracket (701-0144-A)
Use two M4x10 c/sunk screws plus M4 nut with spring &
plain washers.
Fit striker bracket to door with handle - MM0-00041
Use two M6x20 cap head screws with M6 nylon washer
(F82-06) & plain washer
