Chapter 6: 003 Top Panel 49
003 Shortcuts
Modifier switches provide shortcuts for 003
functions that can be accomplished without us-
ing your computer’s keyboard or mouse.
Pro Tools Shortcuts
For increased operational speed, there are many
Pro Tools keyboard and Right-click shortcuts to
give you fast access to a wide variety of tasks.
These shortcuts in Pro Tools use modifier keys,
(such as the Shift key) which are pressed in com-
bination with other keys or with a mouse ac-
tion.
003 Modifier switches mirror the functions of
modifier keys on the computer keyboard. For ex-
ample, 003’s Shift (Add) switch is equivalent to
your keyboard’s Shift key.
:
You can use the Modifier switches in any com-
bination with keys on your computer or a
mouse action while working with Pro Tools.
Mic/DI Input Controls
There are four high-quality preamplifiers with
adjustable gain and phantom power (switchable
in pairs, for Inputs 1–2 and Inputs 3–4). The
phantom power switches are on the back panel.
Inputs 1–4 show up as “Analog 1–4” in the de-
fault Pro Tools I/O Setup.
Inputs 1–4 have the following controls:
Input 1–4 Gain Controls Each knob adjusts gain
for the input, with a range of +15 dB to +60 dB
of gain.
Mic/DI Switches (Inputs 1–4) Each switch tog-
gles the corresponding input between micro-
phone (unlit) or DI input (lit).
The DI and Mic switch LEDs indicate the current
source input. The LEDs blink rapidly when the
input is clipping.
HPF (High Pass Filter) Switches (Input
1–4) These switches enable a high pass filter
(75 Hz, 12 dB/octave rolloff) on the correspond-
ing input, for filtering out rumble or AC hum.
The HPF LEDs are lit when the switch is enabled.
For a list of 003 shortcuts, see “003 Top
Panel Shortcuts” on page 101.
003 Switch
003-to-QWERTY
(Mac)
003-to-QWERTY
(Windows)
Shift (Add) Shift Shift
Option/Alt
(All)
Option Alt
Ctrl/Win Control Win
Command/
Ctrl
Command Control
For a complete list of Pro Tools keyboard
and Right-click shortcuts, refer to the Short-
cuts Guide for your computer platform.

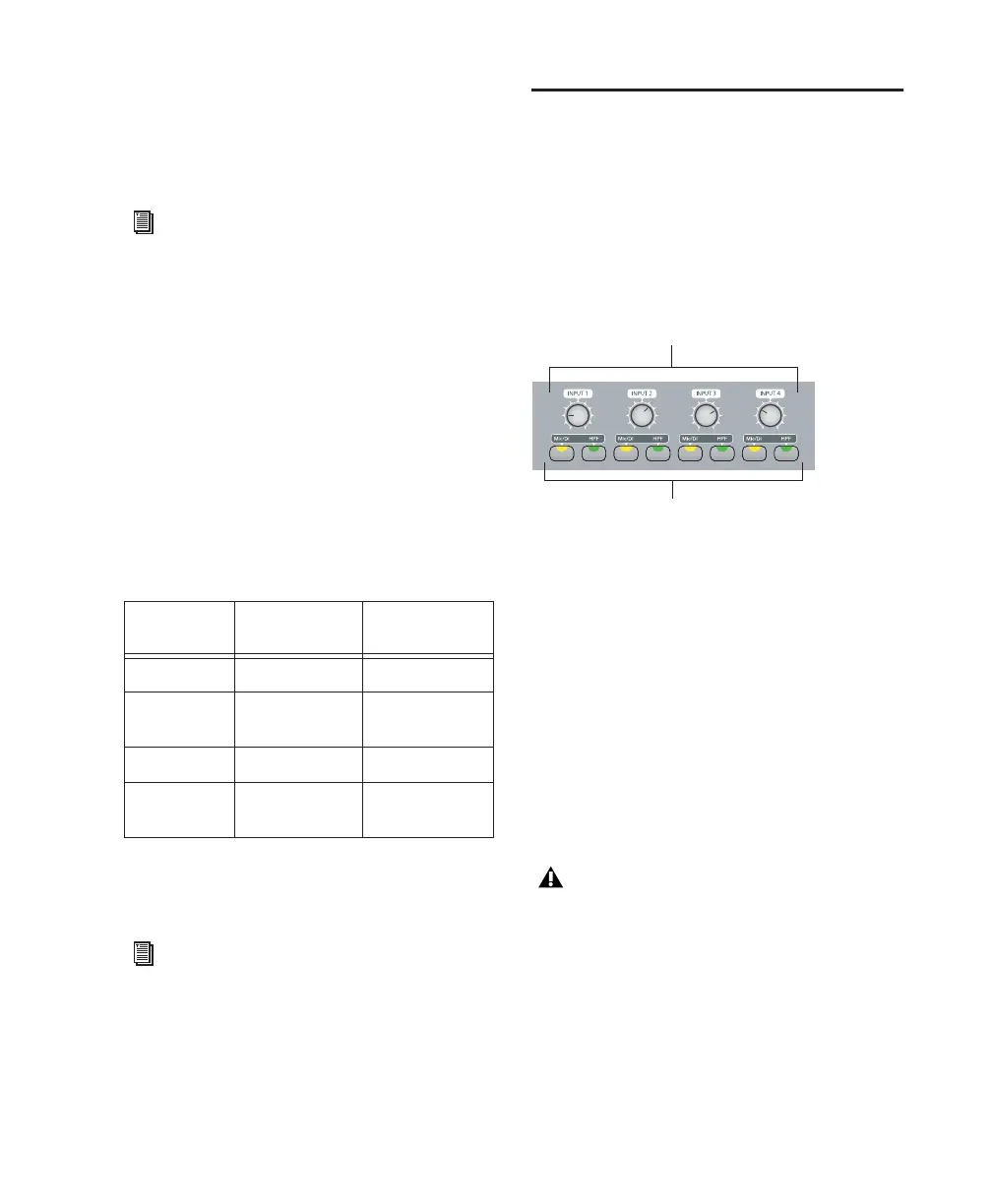

Mic/DI Input controls for Inputs 1–4
Engage the Mic switch only if you have an
XLR cable plugged into the mic connector.
Leaving the switch engaged with nothing
connected may introduce low-level noise.
Input 1–4 Gain controls
Mic/DI and HPF switches for Inputs 1–4
