PYKO-out: Professional IP audio endpoint
Nominal output level

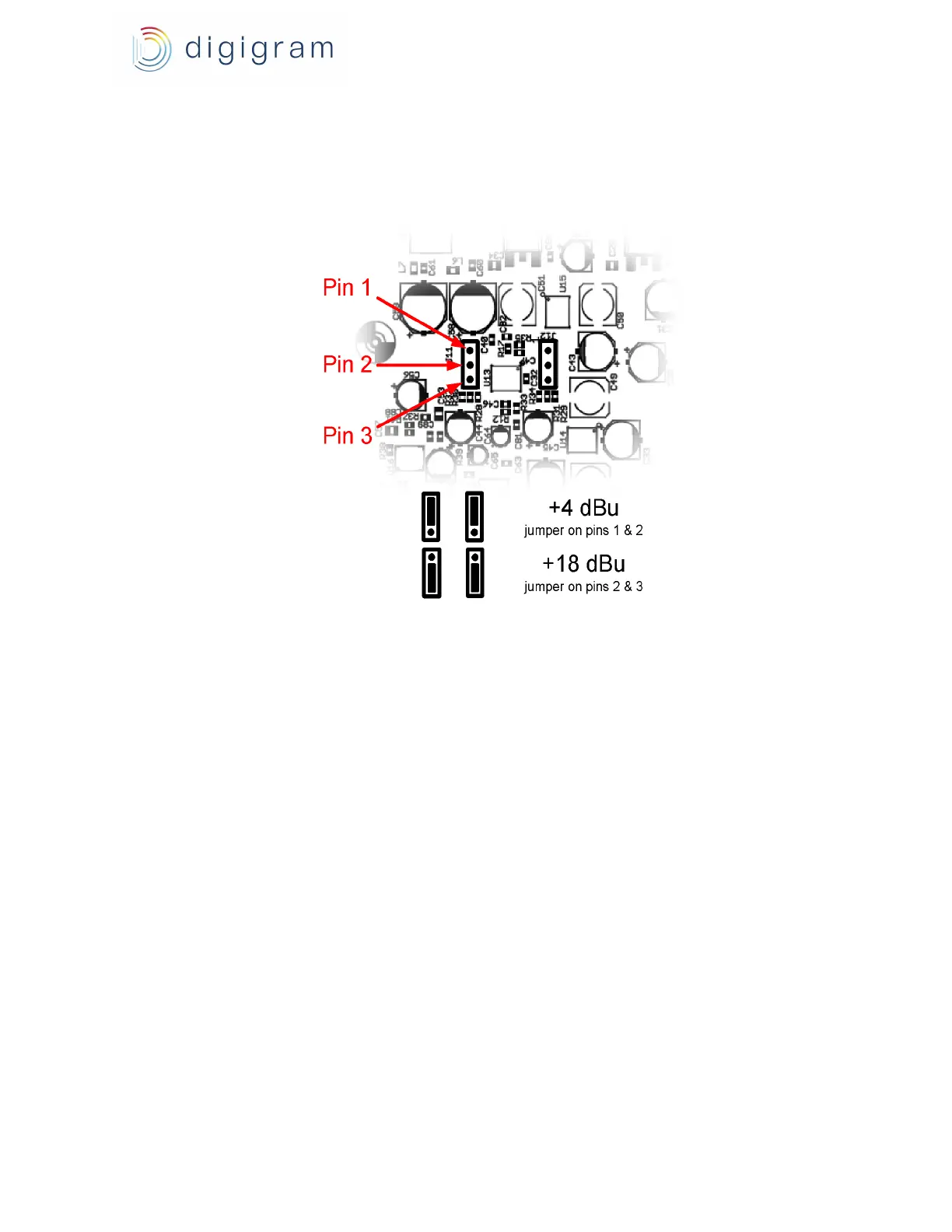

Jumper positionning
This setting defines whether the nominal level of the analog signals is either +18 dBu or +4 dBu
(“Professional”).
Default factory setting is +18 dBu for all outputs.
The settings act upon the nominal output level. Having located the pair to modify in the overview
(previous page  ), set the jumpers according to the above illustrations to match the requirements of your
system.
