PYKO-out: Professional IP audio endpoint

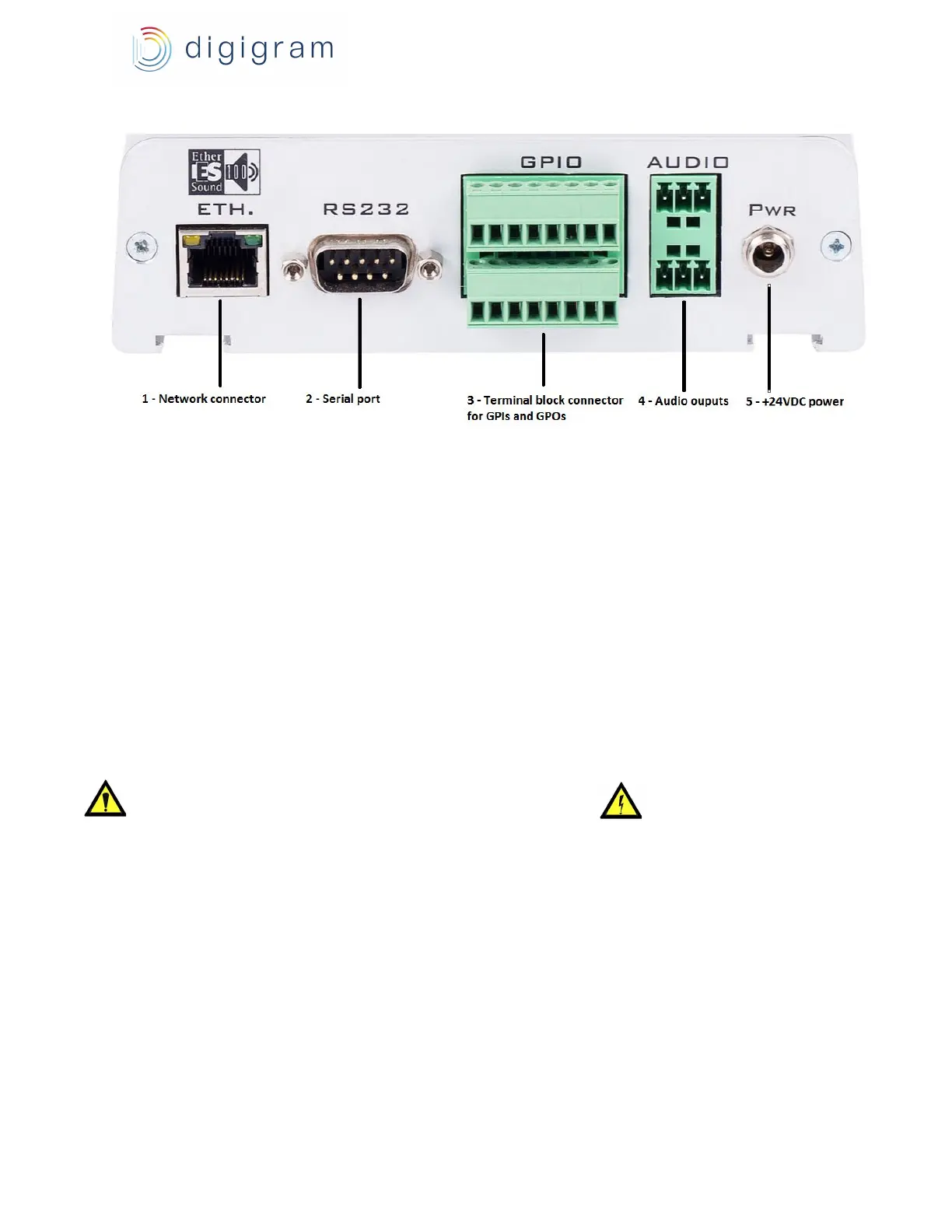

3.2. PYKO-out back panel
● RJ45 network connector
RJ45 for a network connection in 10/100 Mbps half-/full-duplex.
● Serial port
RS232 interface on DB9 (see Appendix G, management of RS232 port).
● GPIO connectors
These terminal blocks allow:
- controlling PYKO from an external device See the chapter dedicated to the GPIOs for more
details (cf. Appendix E, management of the GPIOs).
- transmitting statuses over IP
● Audio connectors
These terminal blocks allow to connect the audio inputs and outputs.
(cf. Appendix D, Audio connectors).
5. Power supply
24 VDC with plug to screw.
7
