Digitax M1 mdt - System Utilities; Connectors and Cables

The information contained here are property of DIGITAX Automotive Electronics Italy, and extremely confi dential.
Any disclosure, copying, distribution to third
party is strictly prohibited.
53

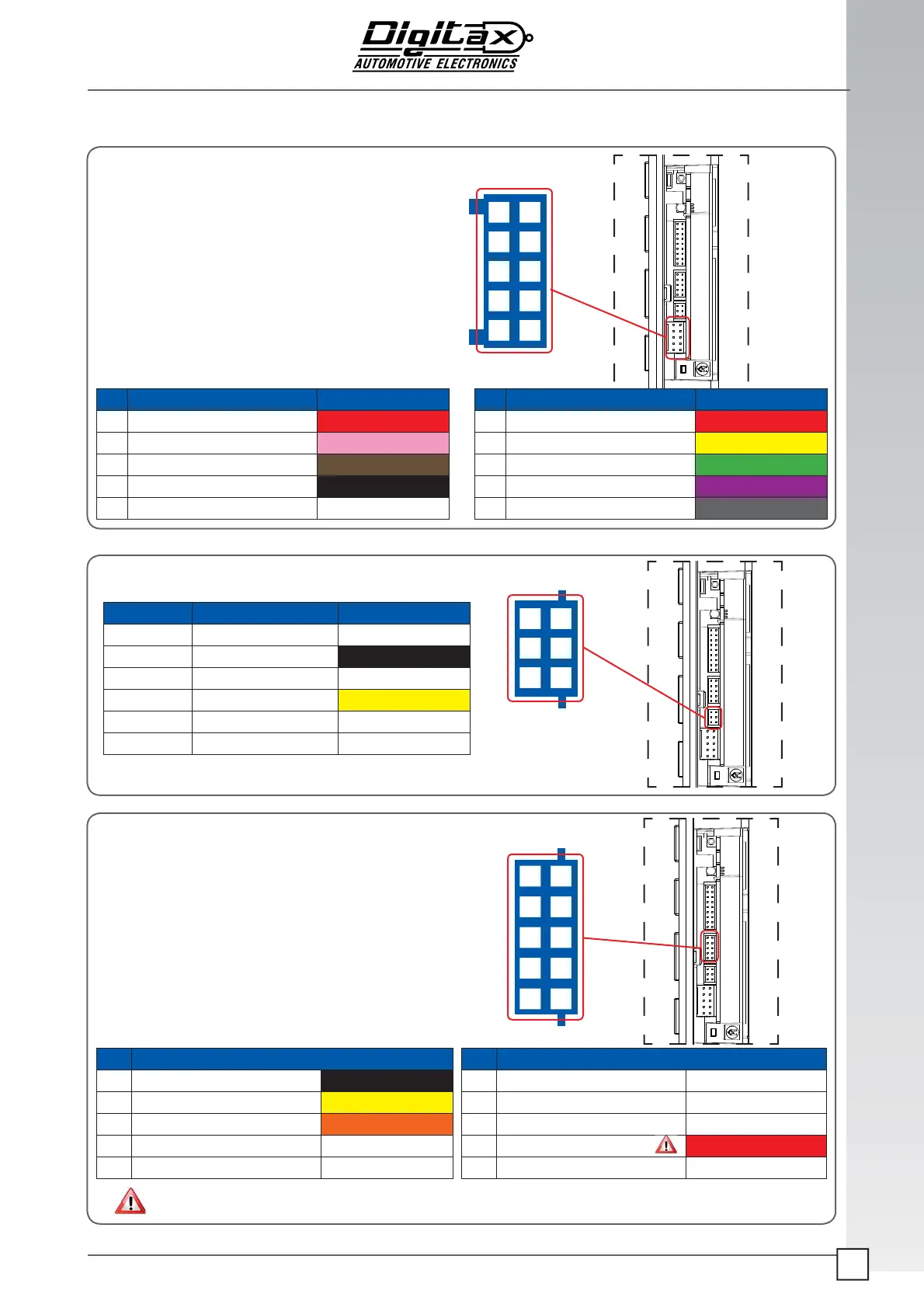

Connectors and Cables
DERIV-BOX
Taximeter Printer and COM
ODOMETER / CAN
POWER CONNECTOR
General Power and Signals:
ATTENTION: Printer Tre requires ONLY max 16V input. Otherwise the Printer T
re will be damaged.
PIN FUNCTION CABLE COLOUR PIN FUNCTION CABLE COLOUR
1 Power Supply (+8/32 V) RED 10 Power Supply (+8/32 V) RED
2 Pass. Sensor input, ac ve low PINK 9 Taxi Light 4 (Vcc, max 1A) YELLOW
3 +Light input, ac ve high BROWN 8 Taxi Light 3 (Vcc, max 1A) GREEN
4 Ground BLACK 7 Taxi Light 2 (Vcc, max 1A) VIOLET
5 Roof Taxi Light (Vcc, max 3A) WHITE 6 Taxi Light 1 (Vcc, max 1A) GREY
PIN FUNCTION CABLE COLOUR
1 NO CONNECTION
2 GND
BLACK
3 CAN H
WHITE
4 CAN L
YELLOW
5 Vcc Output +8/32V
6 Movement Impulse Input
WHITE (shielded)
PIN FUNCTION PIN FUNCTION
1 Ground
BLACK
10 Com1 TXD
2 Taximeter Printer/ Com2 TXD YELLOW 9 Com1 RXD
3 Taximeter Printer/ Com2 RXD ORANGE 8 Pio-Ø
4 AUX 2 7 Vcc Output +8/32V RED
5 AUX 1 6 Pio-1
5 6
3 8
1 10
4 7
2 9
3 4
1 6
2 5
3 8
1 10
2 9
4 7
5 6
