Dimension sheet / Technical data
www.dilo-gmbh.com | 0202.bae
Z863R01
Dimensions Length Width Height Net weight
without storage rack 2300 mm 1200 mm 1000 mm 780 kg
Compressor: Theoretical delivery
rate:
Final pressure
max. p
e
Differential pressure
max.
5.7 m³/h 50 bar 49 bar
Suction pump: Theoretical delivery
rate:
Final vacuum:
15 m³/h 1 mbar
Vacuum pump: Theoretical nominal
suction capacity:
Final vacuum:
Standard 40 m³/h 1 mbar
Sound level: < 85 dB(A)
Paint: orange RAL 2004
Operating voltage: see type plate
Admissible ambient temperature: 0 to 45°C (Busch vacuum pump)
Electrical connection:
Operating voltage: 208-240V, 50/60 Hz 380-500V, 50/60 Hz
Fuse protection: 32 -50 A time delay 25-32 A time delay
Conductor diameter: ≥ 10 mm² (AWG 7) ≥ 6 mm² (AWG 9)
Power plug: 63 A 32 A

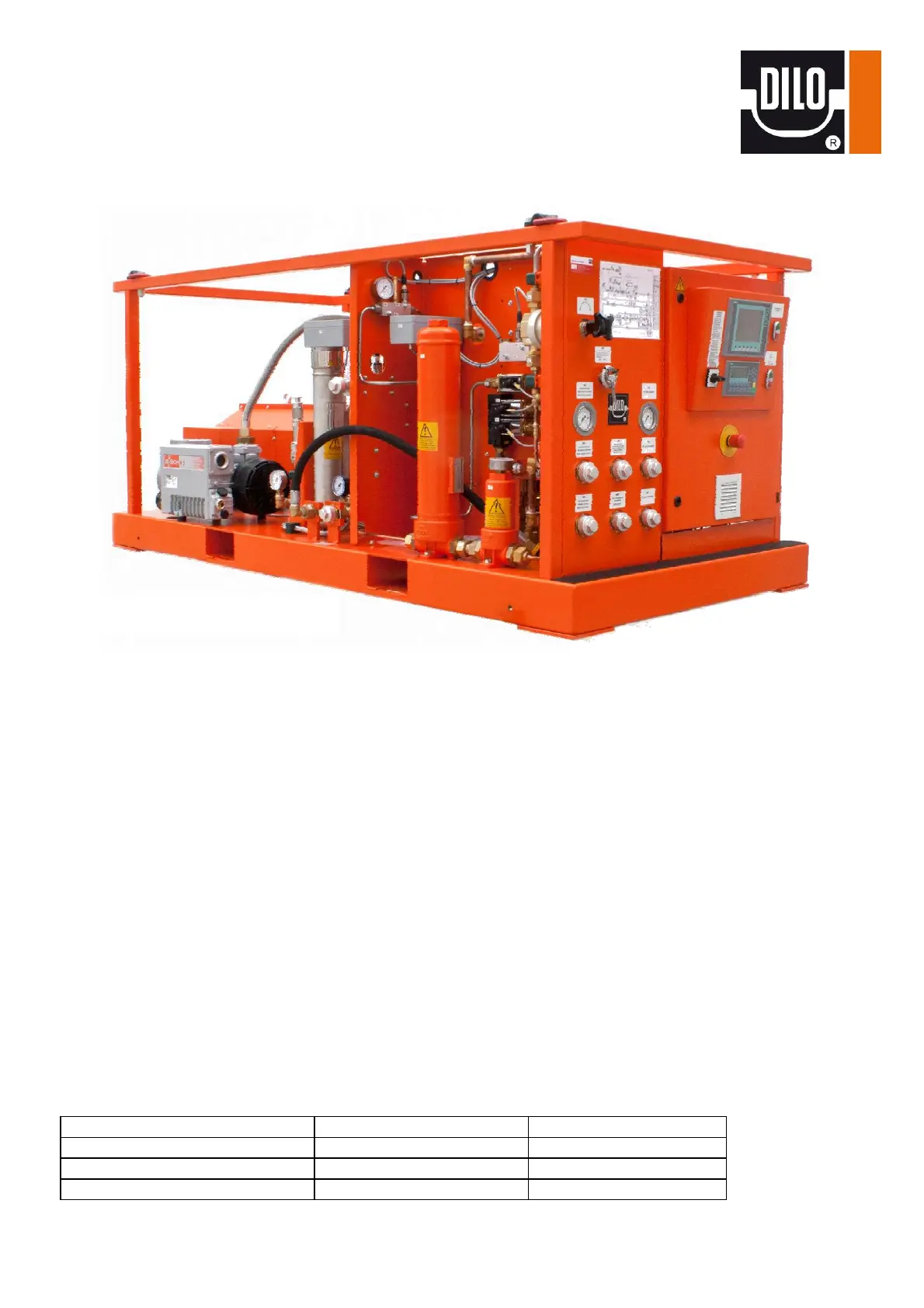

Illustration: without storage rack
