Functional description
www.dilo-gmbh.com | 0500.bae
Mixing of small quantities
This process is provided for mixing of quantities which cannot be mixed with the mixing process
described.
For this the buffer tank is first filled with SF
6
and then with CF
4
, the final mixture is then delivered into the
connected tank by means of the compressor. This process is continued as long as there is the set
pressure in the tank. Due to the step-by-step procedure the mixing performance is considerably lower
than during the regulated mixing process.
Procedure:

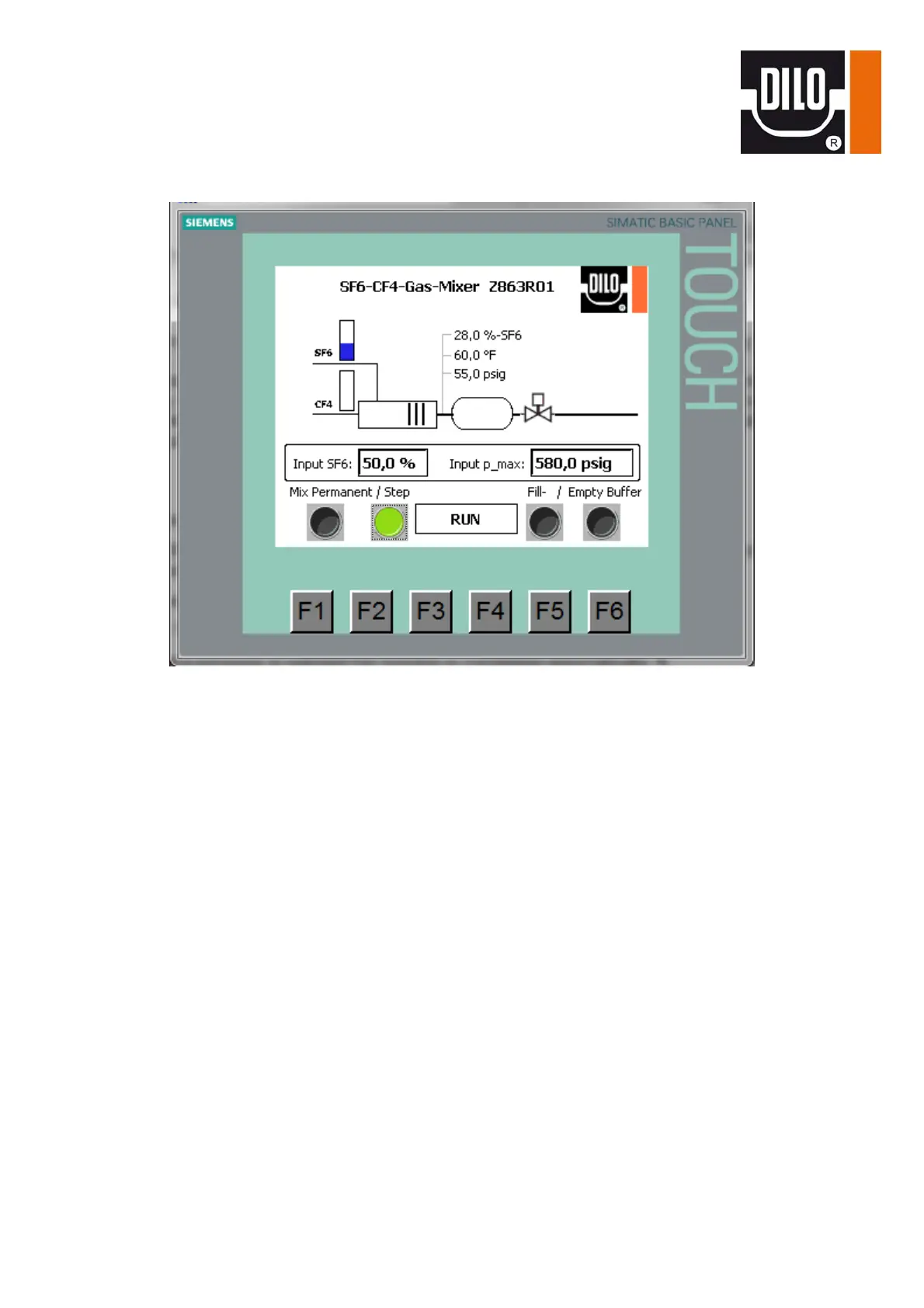

Setting of the required mixing ratio on the operating panel.
Attention: When modifying the mixing ratio, the tank must be empty (see “Fill buffer” function) and
refill it by using the “Fill buffer tank” function with the correct mixing ratio.
Setting of the filling pressure on the operating panel.
Starting the “Mixing“ function (Mix Step).
If the set filling pressure is reached the function is completed automatically.
