UNIVERSAL TELEPROTECTION TPU-1
INSTALLATION AND COMMISSIONING MANUAL Web version TPU-1R - Rev. 5.9 (May 2018)
15/69

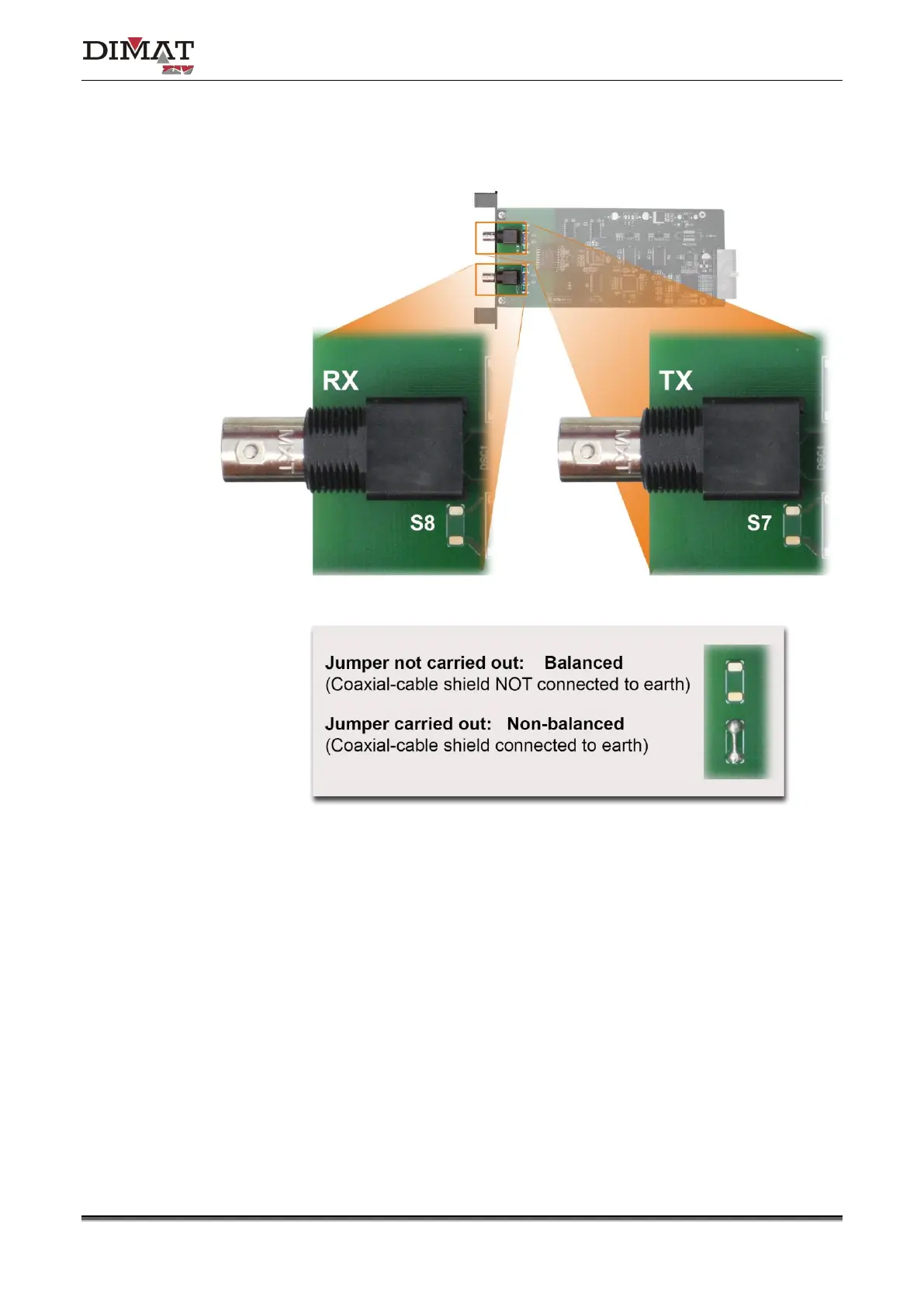

Figure 8 Location of jumpers S7 and S8, prepared for soldering, of the
IDTU.00 module of version lower than 3.0
