UNIVERSAL TELEPROTECTION TPU-1
INSTALLATION AND COMMISSIONING MANUAL Web version TPU-1R - Rev. 5.9 (May 2018)
16/69
a) Location of P1-P2 setting
b) Location of C97 and C98 solder jumpers

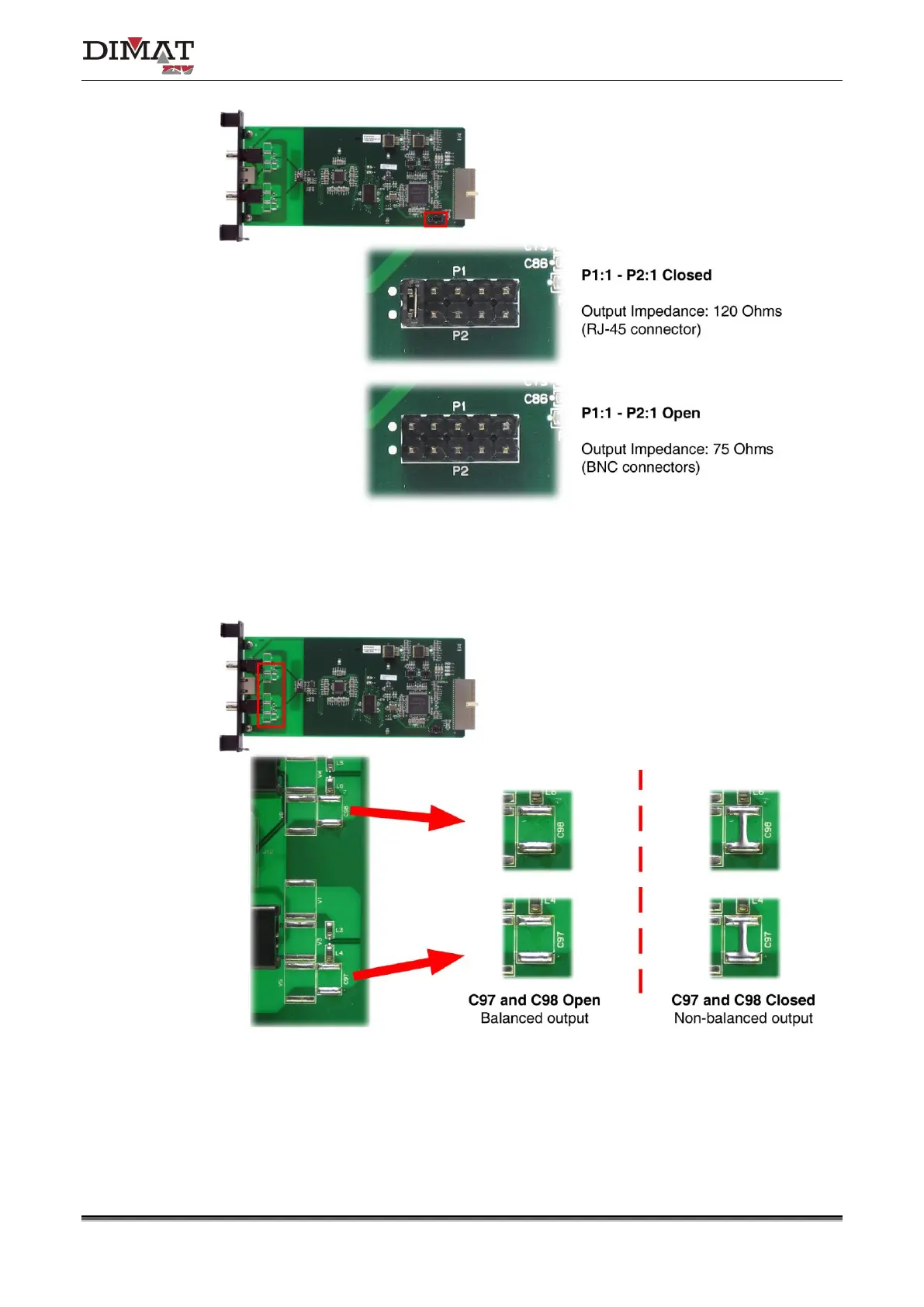

Figure 9 Location of settings in the IDTU.00 module of version 3.0
