4.3.4 IOCT module
The IOCT module gives a 2 Mbit/s (1 slot) interface for optical fiber.

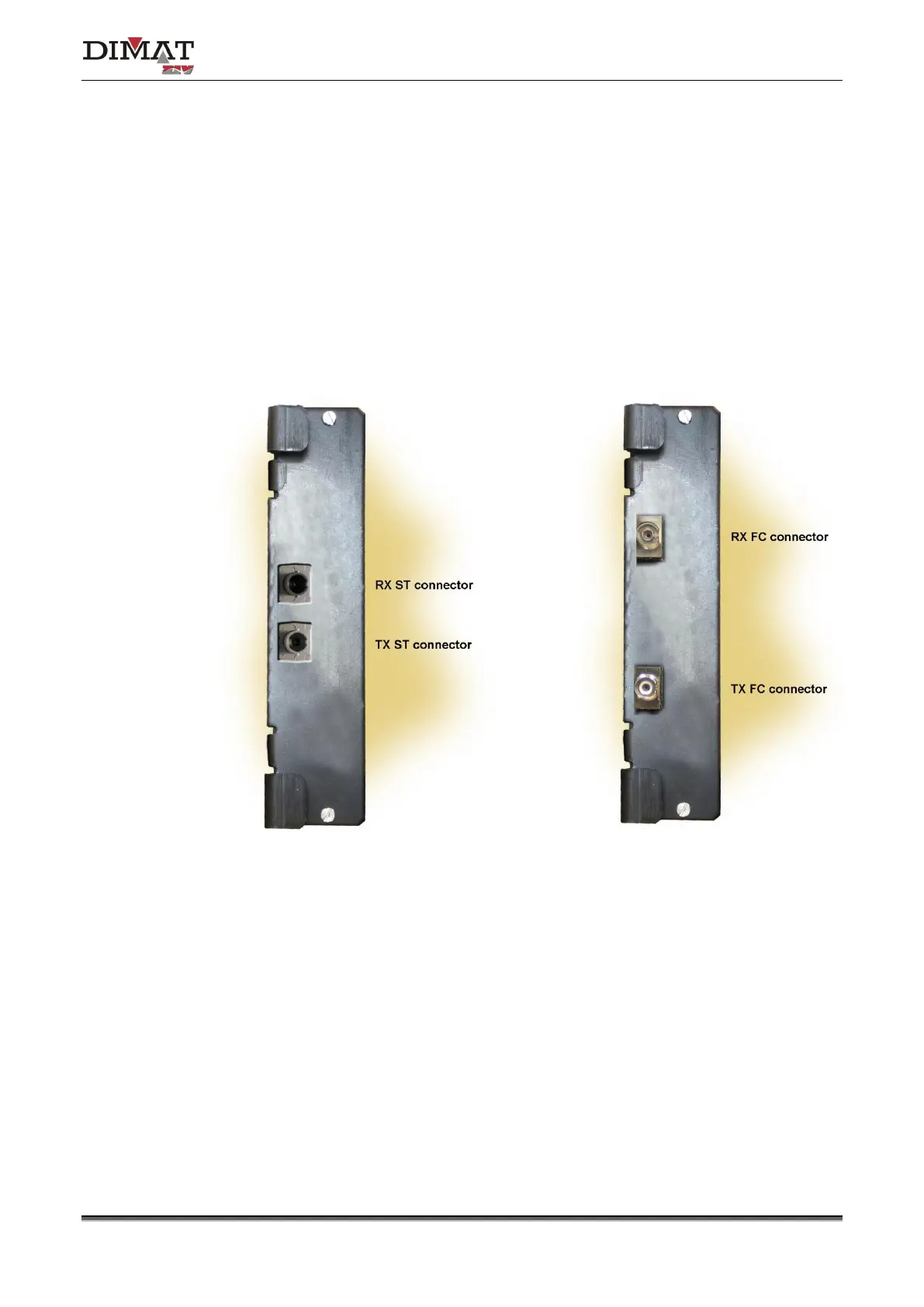

Figure 21 shows a front view of the IOCT module. As can be seen in the figure, the module
has two connectors, one for transmission and the other for reception, type ST female
(IOCT.00) or FC female (IOCT.01).
Make sure that the module is completely fixed to the chassis.
a) IOCT module with ST female connectors
(IOCT.00)
b) IOCT module with FC female connectors
(IOCT.01)
Figure 21 IOCT line interface module connectors
