UNIVERSAL TELEPROTECTION TPU-1
INSTALLATION AND COMMISSIONING MANUAL Web version TPU-1R - Rev. 5.9 (May 2018)
23/69

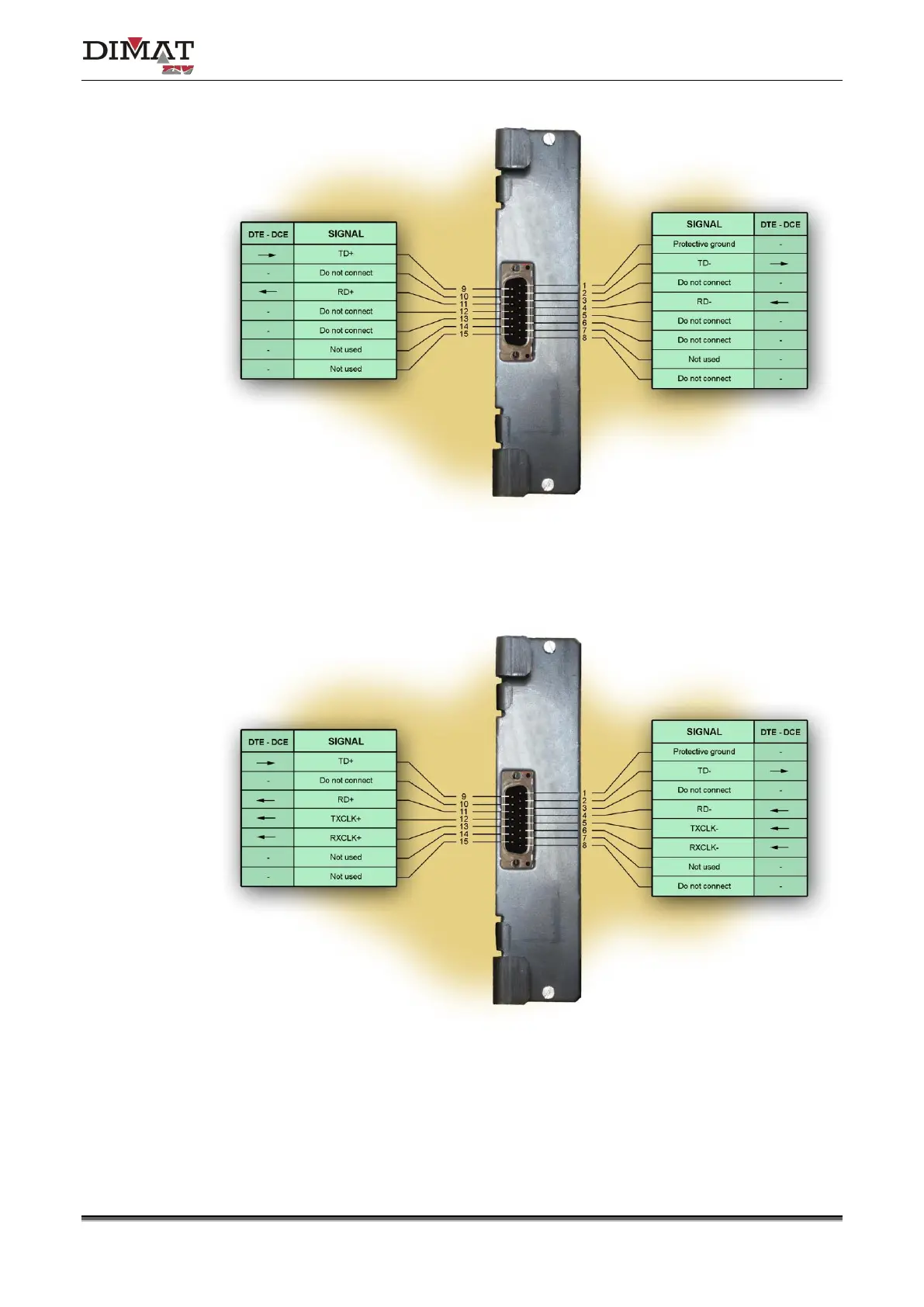

Figure 17 Use of the connector of the IETU module for G.703 codirectional interface
Figure 18 Use of the connector of the IETU module for G.703 contradirectional interface
Make sure that the module is completely fixed to the chassis.
