4.3.5 IPIT module
The IP communications interface module (IPIT) allows the transmission and reception of
teleprotection packets over an IP network.

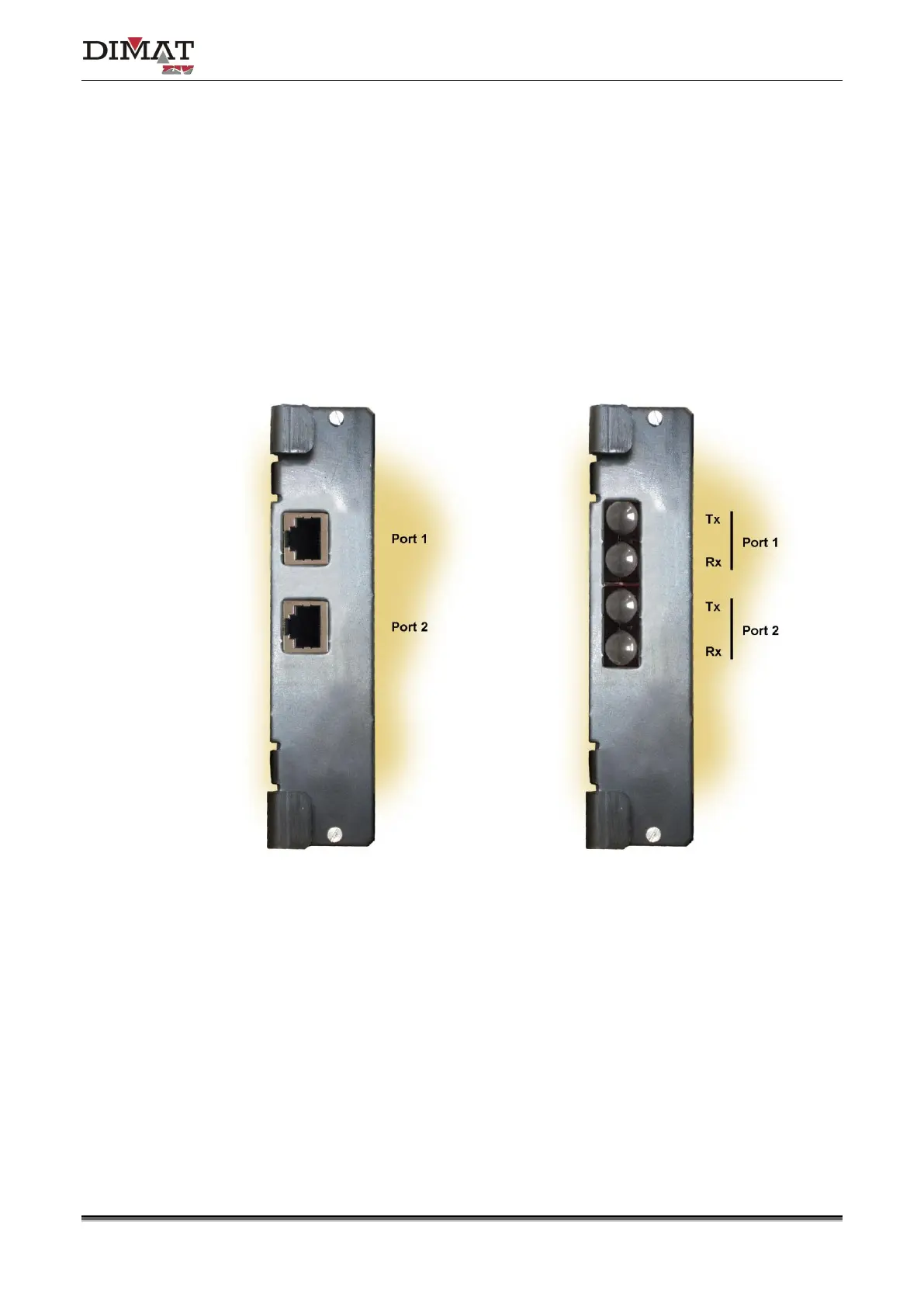

Figure 22 shows a front view of the IPIT module. As can be seen in the figure, the module
has two ports type 10/100Base-Tx with RJ-45 connector (IPIT.01) or 100Base-Fx multimode
(1300 nm) with ST connector (IPIT.00). The two ports have the same IP address.
Make sure that the module is completely fixed to the chassis.
c) IPIT module with electrical connectors
(IPIT.01)
d) IPIT module with optical fiber connectors
(IPIT.00)
Figure 22 IP communications interface module (IPIT) connectors
