DIMAT TPU-1 - Main cabinet-mounting terminal block for digital and analog channels

Communication solutions for power utilities
UNIVERSAL TELEPROTECTION TPU-1
INSTALLATION AND COMMISSIONING MANUAL Web version TPU-1R - Rev. 5.9 (May 2018)
61/69

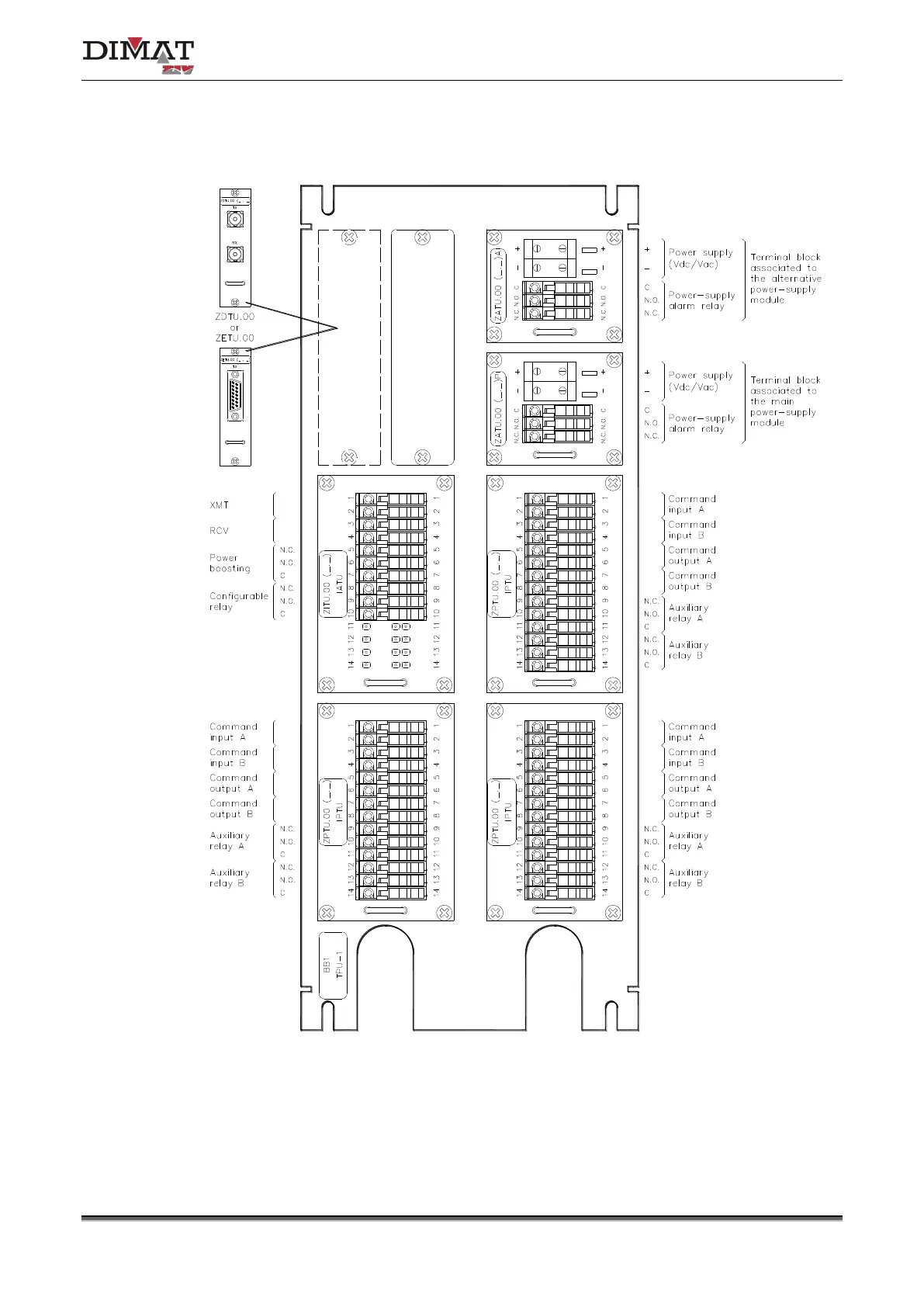

Figure 46 Main cabinet-mounting terminal block for a digital channel and
an analog channel (three IPTU modules)
