10 www.dimplex.com
Fireplace Installation
• Remove the partially reective
glass from the replace.
2. Locate the power cord and
remove the 3 screws that attach
the cord bracket to the unit - one
on the back of the unit and two on
the bottom. (Figure 5)
3. From the front, remove the 2
Philips screws that fasten the front
panel tabs, tilt the panel forward
and lift o. (Figure 4)
4. Remove the 4 screws that fasten
the acrylic media tray, and the 2
screws that attach the metal tray
to the unit.
The metal tray cannot be removed
but will now allow the ability to
remove the junction cover.
5. Remove the Phillips screw to
release the junction cover in the
bottom right corner of the replace
(Figure 6).
6. Carefully slide the junction cover
to the right to release the securing
tabs, as wires are fed through the
strain reliefs on the junction cover
and are connected within.
7. Unscrew the 3 wire connectors
under the junction cover and
separate the wires (Figure 7).
8. Pull the cord bracket and power
cord out the front of the replace.
9. Replace removed cord bracket
with the supplied hardwire bracket
replacement (Figure 8) and install
using screws removed in step 2.

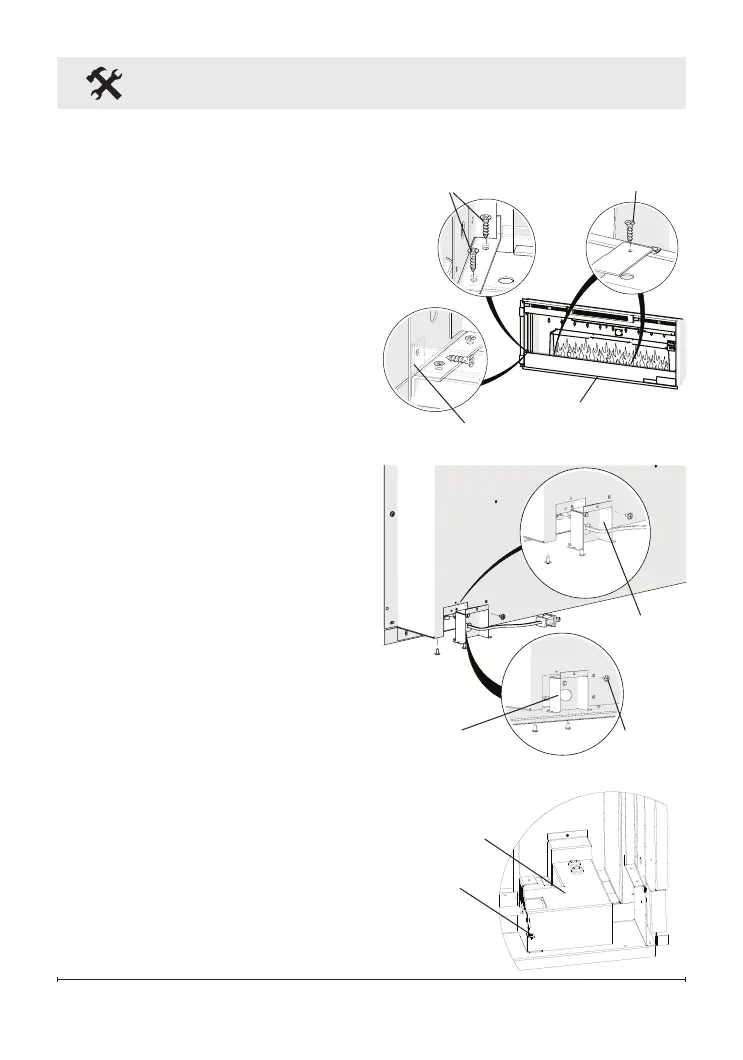

Figure 6
Junction Cover
Screw
Figure 5
Screws
Hardwire
Bracket
Cord
Bracket
Front Panel
Front Panel tabs (2)
Acrylic Tray screws (4)
Metal Tray
Screws (4)
Figure 4
To Next Page
