Fireplace Installation
6. Refer to Front Glass Installation
section for nal installation
procedures.

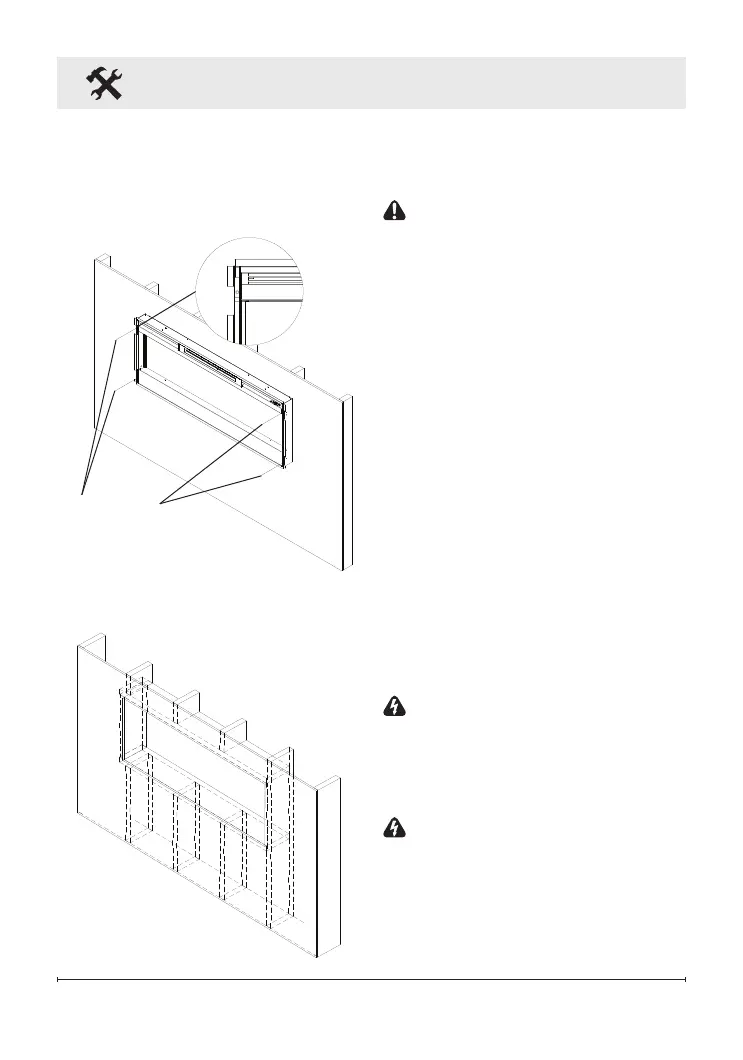

Figure 12
2 x 8 Framing
Flush Mounted
Installation - 2x8 Framing
CAUTION: Two people may be
required for various steps of this
procedure.
1. Prepare a wall with a framed
opening of 49 in. (124.5 cm) wide
x 18½ in. (47 cm) high (Figure 12).
!
NOTE: The sizing has allowed for
1/4” (6.4 mm) around the replace
insert for ease of installation. This
replace does not require any
additional venting.
2. Choose your method of supplying
power to the unit:
• Plug-in (you may run the power
cord out of the framed wall
opening to an existing outlet or
install an outlet on a nearby wall
stud within the wall).
• Hardwire the replace - follow the
hardwiring instructions on page 9.
WARNING: Do not attempt to wire
your own new outlets or circuits.
To reduce the risk of re, electric
shock or injury to persons, always
use a licensed electrician.
WARNING: Ensure that the circuit
on which the replace is to be
installed has the power cut o at
the service panel until installation
is complete.
