11
Black live
wires

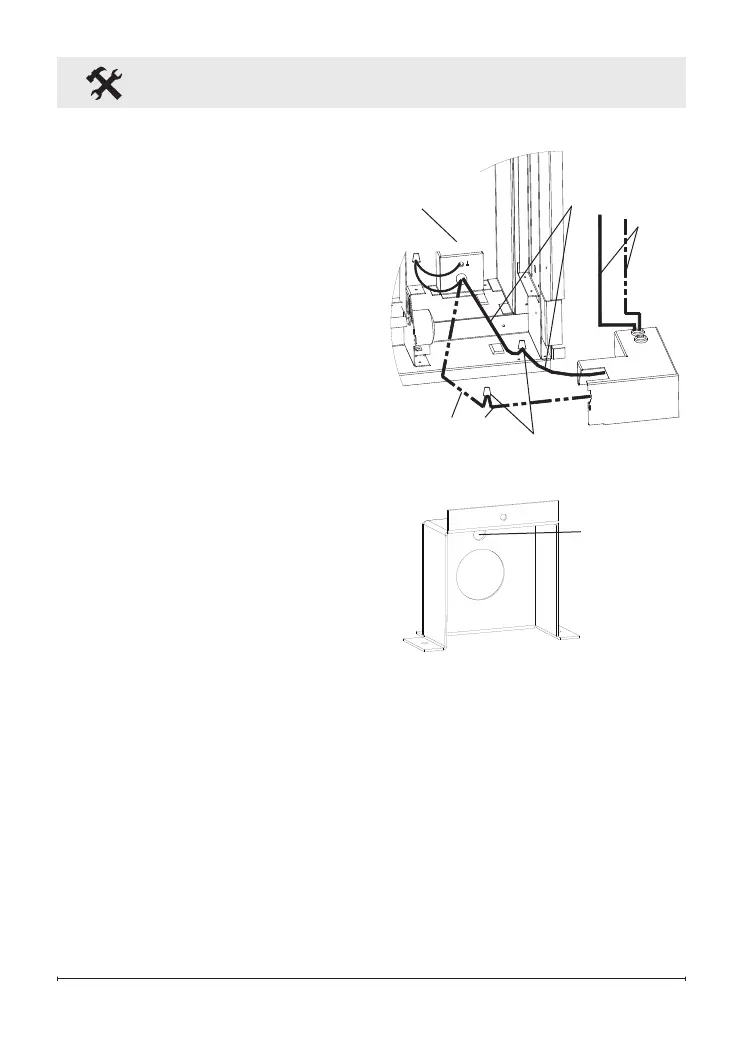

Figure 8
Hole for
Ground Screw
Fireplace Installation
10. Leaving a minimum of 3" (7.6 cm)
of slack, route the power supply
through the hole in the hardwire
bracket and secure with a wire
clamp (not supplied).
11. Connect the smooth black wire
(live) from the unit to the black
wire from the power supply
using one of the wire connectors
removed in step 7 (Figure 7).
12. Connect the black ribbed wire
(neutral) and white icker motor
wire from the unit to the white wire
from the power supply using the
second wire connector from step 7
(Figure 7).
13. Attach green grounding wire to
hardwire bracket with provided
grounding screw. Place wire in
between screw and lock washer
and tighten.
14. Reposition the junction cover over
the wires and connectors and
attach it to the replace chassis
using the screw removed in
step 5.
15. Secure the metal tray and the
acrylic media tray.
16. Carefully reinsert partially
reective glass into the replace
and anchor in place using glass
brackets and screws removed in
step 1.
17. Proceed to installation using the
desired mounting method.
For Bathroom Use
If this unit is installed in a bathroom, it
must be protected by a GFI receptacle
or circuit. If receptacle is used, it must
be readily accessible.
This electrical appliance is not
watertight. To prevent electrical shock,
it must be installed as to prevent
water from entering unit. This must
be installed away from showers, tubs,
etc. Never locate replace where it
may fall into a bathtub or other water
container.
Figure 7
Wires to
controls
Wire connectors
Cord
Bracket
screw
Neutral wires
To Next Page
