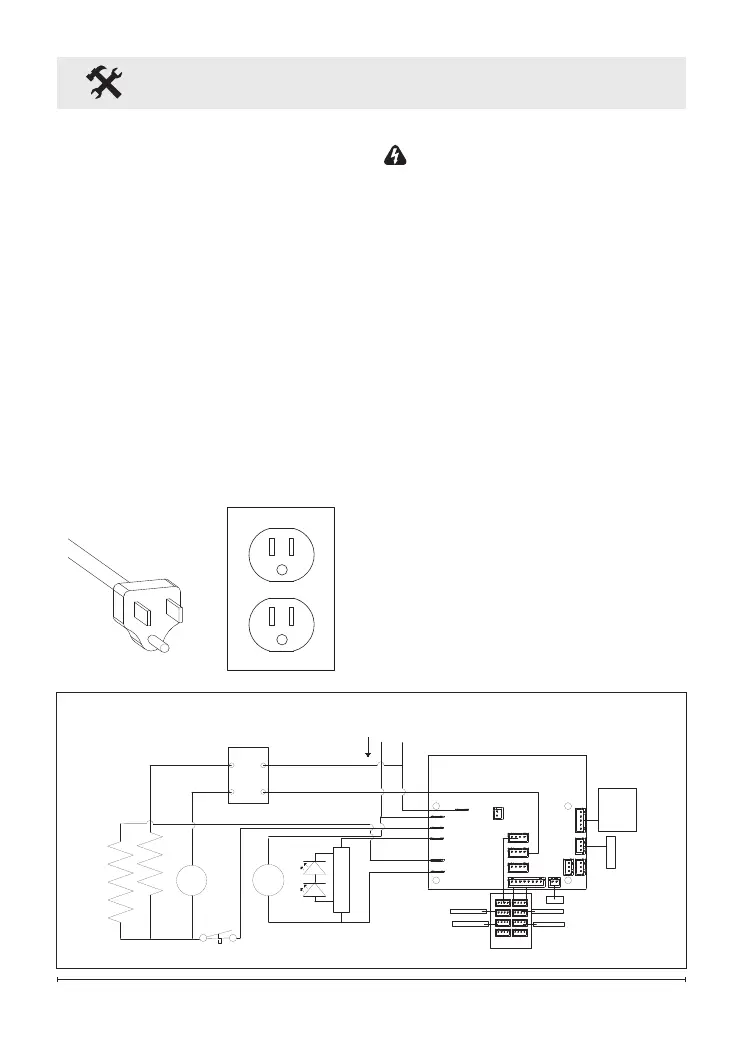

Fireplace Installation
Grounding Instructions
This product must be grounded. If it
should malfunction or breakdown,
grounding provides a path of least
resistance for electric current to
reduce the risk of electric shock.
This product is equipped with a cord
having an equipment-grounding
conductor and a grounding plug.
The plug must be plugged into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
DANGER: Improper connection
of the equipment-grounding
conductor can result in a risk
of electric shock. Check with a
qualied electrician or serviceman
if you are in doubt as to whether
the product is properly grounded.
Do not modify the plug provided with
the product – if it will not t the outlet,
have a proper outlet installed by a
qualied electrician.
This product is for use on a nominal
120-volt circuit and has a grounding
plug that looks like the plug in Figure
3. Make sure that the product is
connected to an outlet having the
same conguration as the plug. No
adapter should be used with this
product.
Figure 2
MOTOR
HEATER
NEUTRAL
FLAME COLOR
TOP LIGHT
LOG MEDIA NTC
GESTURE
DISPLAY
FAN
LINE
M
FLAME
MOTOR
LED CONTROL
BOARD
LED LIGHTS
NTC
MOTOR
HEATER
M
ELEMENT
ELEMENT
CUTOUT
THERMAL
BLOWER
MOTOR
LINE
N
LED LIGHTS
LED LIGHTS
LED LIGHTS
LED LIGHTS
SWITCH
BOARD
DISPLAY
BOARD
L1
120V~
60Hz
G
