BLUE wire then the alarm zones are bypassed (See Feature menu 1/8) and will
remain bypassed until the ground input is removed. This means that when the trunk is
open with the factory transmitter the only triggers that remain active while the trunk is
open are the doors and ignition. 3-seconds after the trunk is closed the bypassed
zones again become active.
HH22//66 VVIIOOLLEETT//BBLLAACCKK nnoo ffuunnccttiioonn..
HH22//77 YYEELLLLOOWW//BBLLAACCKK lliigghhtt ffllaasshh mmoonniittoorr iinnppuutt::
This input monitors the factory sys-
tem light flash output and can be used as a disarm defeat wire. Connect this wire to
the light flash wire that flashes when the factory transmitter is used. This may be a sta-
tus LED, parking lights, reverse lights, etc., depending on the vehicle type and manu-
facturer. This wire can accept a (+) positive or (-) negative input.
kkeeyylleessss eennttrryy ssyysstteem
mss——tthhrreeee ttyyppeess
There are three main types of keyless entry systems. Systems that unlock the driver’s
door first and have internal relays, systems that unlock the driver’s door first but have
external relays, and systems without driver’s priority door unlock.

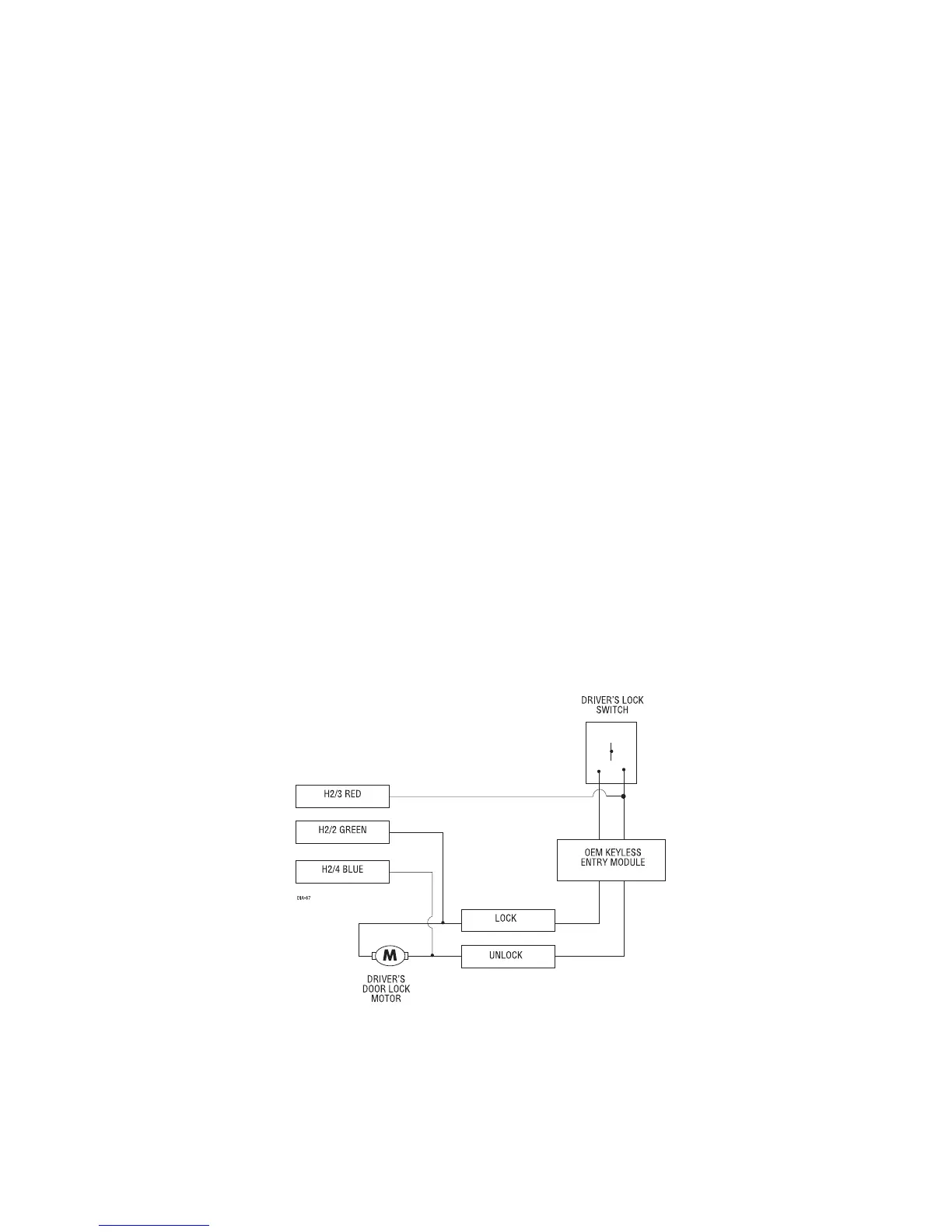

factory remote—driver’s door unlock
