DS4+ FORD6

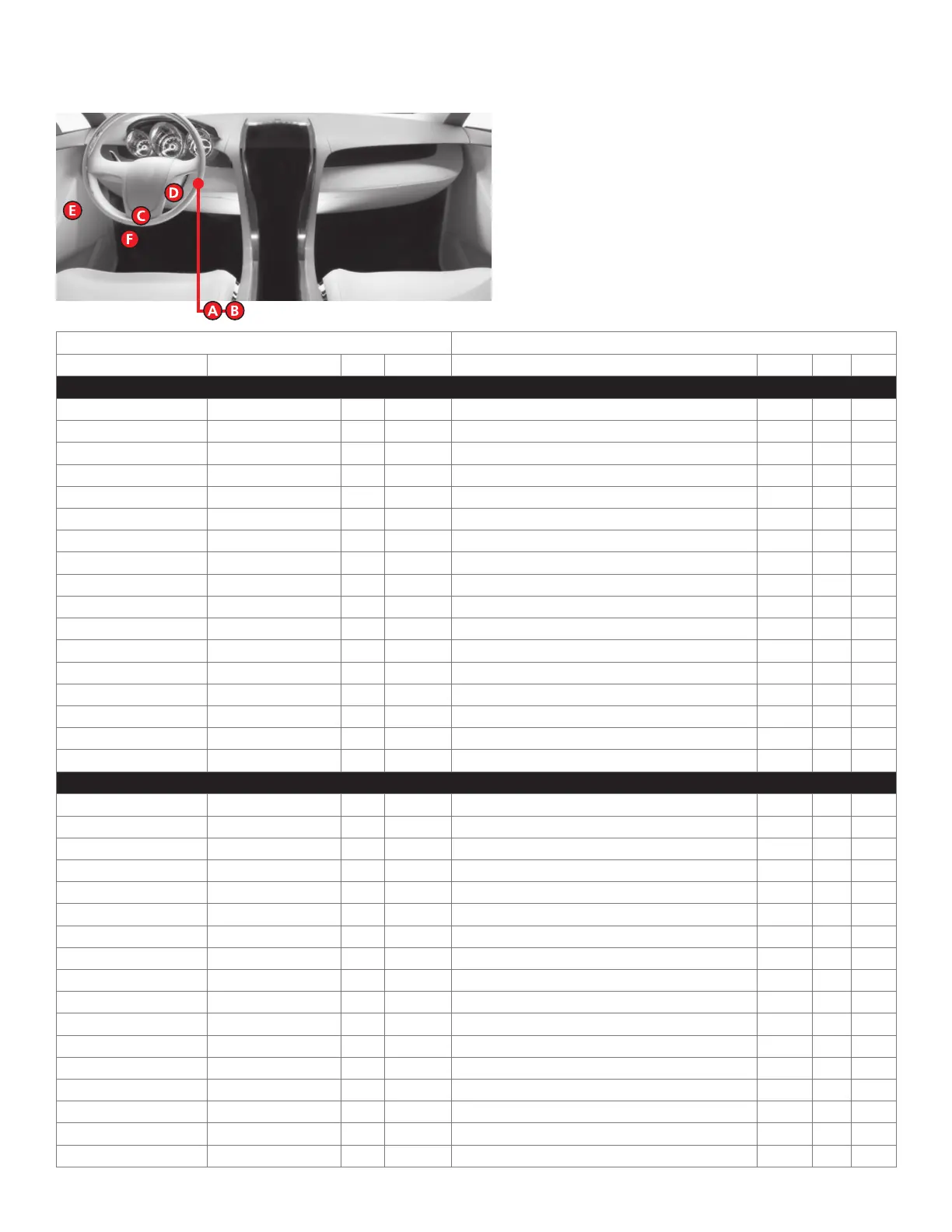

Vehicle wiring reference chart

This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to

www.directechs.com for additional information.

Wire Information Connector Information

Function Color Pin Polarity Location Color Pins Ref.

Ford Crown Victoria 2010-2011

RX Gray/Orange 4 Data (PATS) connector. Black 4 A

TX White/Lt. Green 3 Data (PATS) connector. Black 4 A

12V Lt. Green/Violet 9 (+) Ignition switch. Gray 10 B

Starter Dark Green 10 (+) Ignition switch. Gray 10 B

Ignition Violet/Orange 1 (+) Ignition switch. Gray 10 B

Accessory 1 Gray/Yellow 7 (+) Ignition switch. Gray 10 B

Accessory 2 White/Violet 5 (+) Ignition switch. Gray 10 B

Parking Lights Brown 10 (+) LCM (Lighting Control Module) right of steering column. Black 13 D

HS CAN High White/Lt. Green 6 Data OBDII. Black 16 C

HS CAN Low Pink/Lt. Green 14 Data OBDII. Black 16 C

MS CAN High Tan/Orange 2 Data OBDII. Black 16 C

MS CAN Low Pink/Lt. Blue 10 Data OBDII. Black 16 C

Driver Door Trigger Dk. Blue 22 (-) DDM (Drivers Door Module) in drivers door. Black 26 E

Trunk Release White/Violet 12 (+) DDM in drivers door. Black 26 E

Lock Pink/Yellow N/A (-) Drivers kick panel door harness. N/A N/A F

Unlock Pink/Lt. Green N/A (-) Drivers kick panel door harness. N/A N/A F

Tach NOT White/Red N/A (AC) Any fuel injector. N/A N/A N/A

Mercury Grand Marquis 2010-2011
