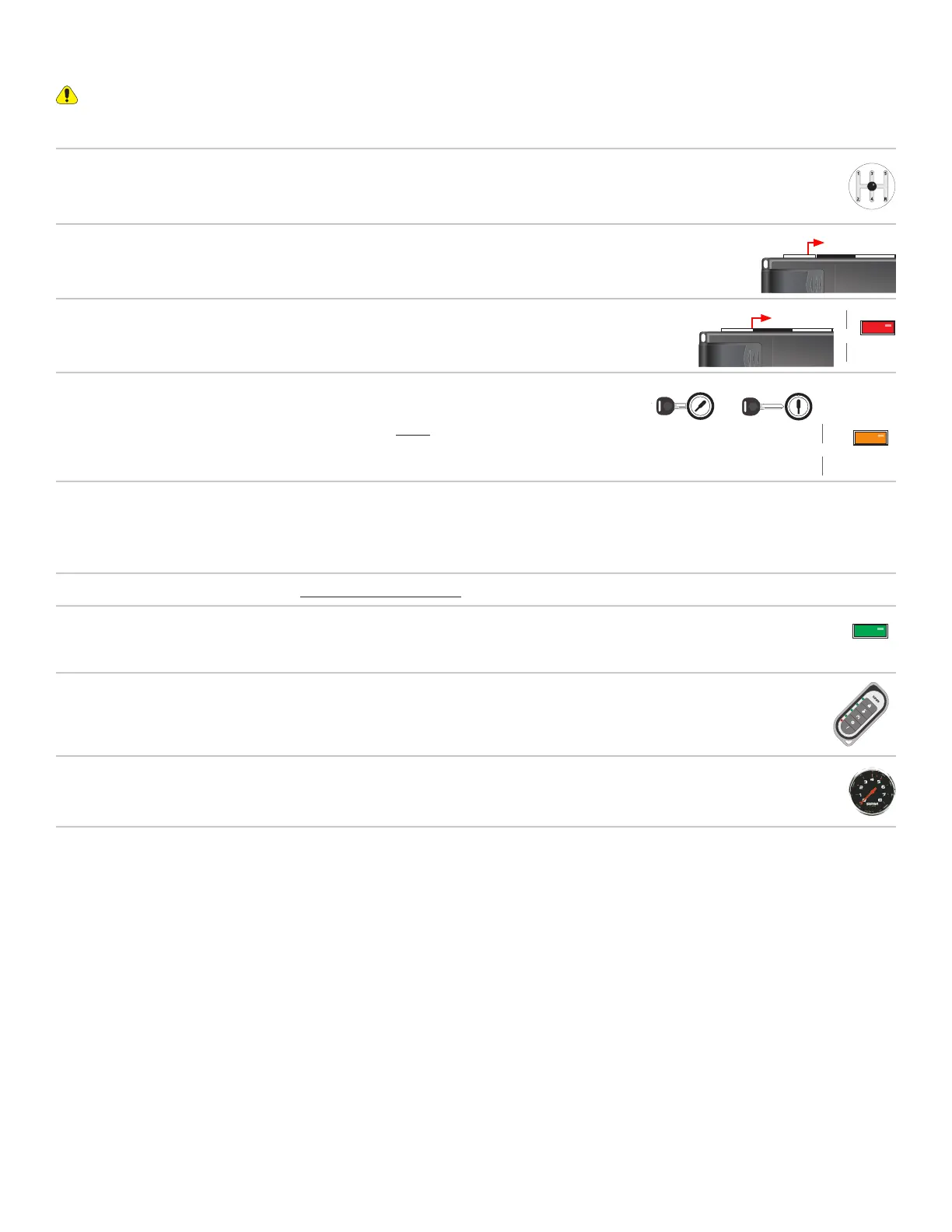

Module programming - 1-Key programming using Key2GO
Refer to "LED diagnostics and troubleshooting" on page 56 for more information and for troubleshooting purposes.
To connect the module:
1
Please ensure that the vehicle is in a safe location and cannot move forward during
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
2
Connect all the harnesses to the DS4+, EXCEPT the 12-pin main power harness.
Connect all but the
12-pin harness
3
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
Must be
connected LAST
&
Solid
4
Insert the key and turn ignition ON and OFF twice. The LED now flashes orange.
Key OUT
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
Flashes
Orange
&
START
Key OUT
ON
OFF
START
Key IN
ON
OFF
START
Key IN
ON
OFF
X 2
5
Remove the module from the vehicle and reconnect it to your computer. The Directechs
web site will automatically recognize that you are moving on to the second phase of the
programming sequence.
6
Select the method and click on Submit Key2GO Request.
7
Once the configuration is completed, reconnect the unit to the vehicle. The LED then turns
ON solid green for 3 seconds once the module is successfully programmed.
Solid x 3 secs
8
Pair remotes (if applicable). For information on how to pair a specific remote, please
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
Pair
remotes*
9
By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
program tach, see page 45.
Initialize
tachometer
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
