DS4+ FORD6
© 2017-12-13 Directed. All rights reserved.
Type 6
Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram ( ).
10
6
1
5
8
3
7
2
9
4
16
8
9
1

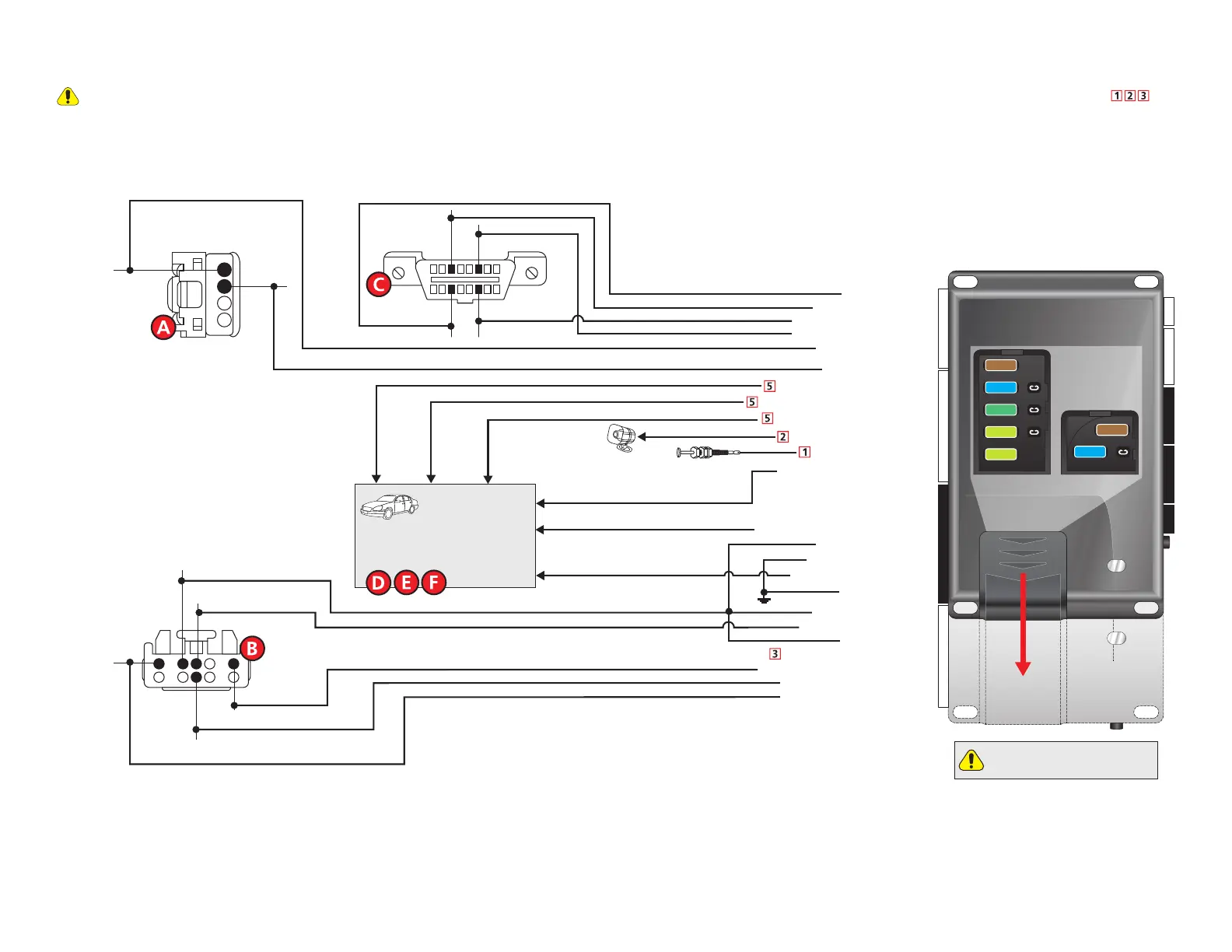

MS CAN Low: Tan : 1
(-) Trunk Release Output: Red/White: 4
MS CAN High: Tan/Black: 2
HS CAN High: Orange/Green: 4
HS CAN Low: Orange/Brown: 3
Data RX: Orange/Black: 7
(+) Parking Light Output: White: 5 & 11
HS CAN Low: Pin 14
HS CAN High: Pin 6
MS CAN Low:
Pin 11
MS CAN High:
Pin 3
Refer to the Vehicle
wiring reference
charts for wire and connector
details related to the standard
connections in the vehicle.
Data TX: Yellow/Black: 8
(-) Lock Output: Dk. Green/Black: 3
(-) Unlock Output: Dk. Blue/Black: 9
OBDII Diagnostic Connector,
under Driver Dash (connector side view)
P.A.T.S. - 4-pin
(at ignition switch)
1
2
3
4
RX: Pin 4
TX: Pin 3
22 810 12
4 2442
DS4+
DS4
Slide
to open
Proper Fuse
Positioning
DS4+ DS4
It is important to check that the
fuses are positioned correctly.
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
30
20
20
5
15
15
Ignition Switch
(gray and black connector
at ignition switch)
(+) Accessory 2:
White/Violet, pin 3
(+) 12V: Pin 2
(+) Ignition:
Violet/Orange,
pin 1
(+) Accessory 1: Gray/Yellow, pin 8
(+) Starter: Dk.Green, pin 5
(-) Ground: Black: 10
(-) Driver Door Trigger
(-) RAP Off Output: Lt. Green: 8
(-) Ground: Lt. Green/Red: 7
(+) 12V Input: Red: 6 & 12
(+) Ignition Input/Ouput: Pink: 10
(+) Accessory 1 Output: Orange: 8
(+) 12V Input: Red/Black: 2
(+) Starter Output (veh. side): Violet: 7
(+) Accessory 2: Pink/White: 4
Starter Input (Key Side): Green: 6
(+) 12V Input: Red: 5
Hood
Pin
(-) Hood Pin Input: Gray: 21
(AC) Tach Output: Violet/White: 22
Siren
(+) Siren Output: Brown/Red: 11
