DS4+ FORD6

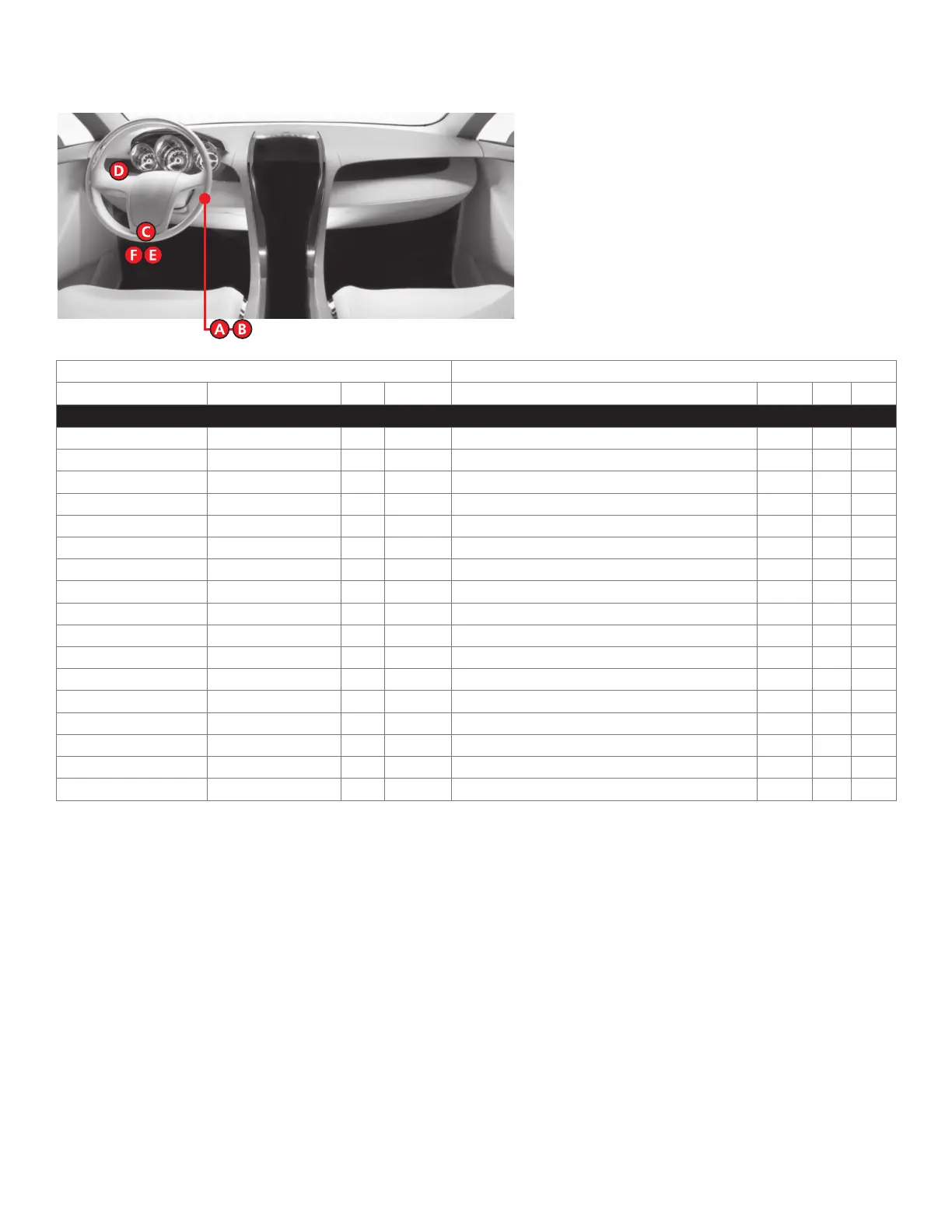

Vehicle wiring reference chart

This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to

www.directechs.com for additional information.

Wire Information Connector Information

Function Color Pin Polarity Location Color Pins Ref.

Ford Taurus X 2008-2009

RX Violet/Gray 4 Data (PATS) connector. Black 4 A

TX Yellow/Orange 3 Data (PATS) connector. Black 4 A

Power Liftgate Gray/Yellow 3 (-) Power liftgate switch. N/A 6 D

12V Red 4 (+) Ignition switch. Black 7 B

Starter Blue/White 7 (+) Ignition switch. Black 7 B

Ignition White/Orange 1 (+) Ignition switch. Black 7 B

Accessory Violet/Green 6 (+) Ignition switch. Black 7 B

Parking Lights Violet/White 6 (+) Fuse/SJB (Smart Junction Box) under drivers dash. Gray 13 E

HS CAN High White/Blue 6 Data OBDII. Black 16 C

HS CAN Low White 14 Data OBDII. Black 16 C

MS CAN High Gray/Orange 3 Data OBDII. Black 16 C

MS CAN Low Violet/Orange 11 Data OBDII. Black 16 C

Driver Door Trigger Green/Violet 14 Cut Fuse/SJB under drivers dash. Gray 26 F

Lock Blue/Green 17 (-) Fuse/SJB under drivers dash. Gray 26 F

Unlock Yellow/Violet 4 (-) Fuse/SJB under drivers dash. Gray 26 F

Factory Alarm Disarm Green/Violet 8 (-) Fuse/SJB under drivers dash. Gray 26 F

Tach NOT Red N/A (AC) Any fuel injector. N/A N/A N/A
